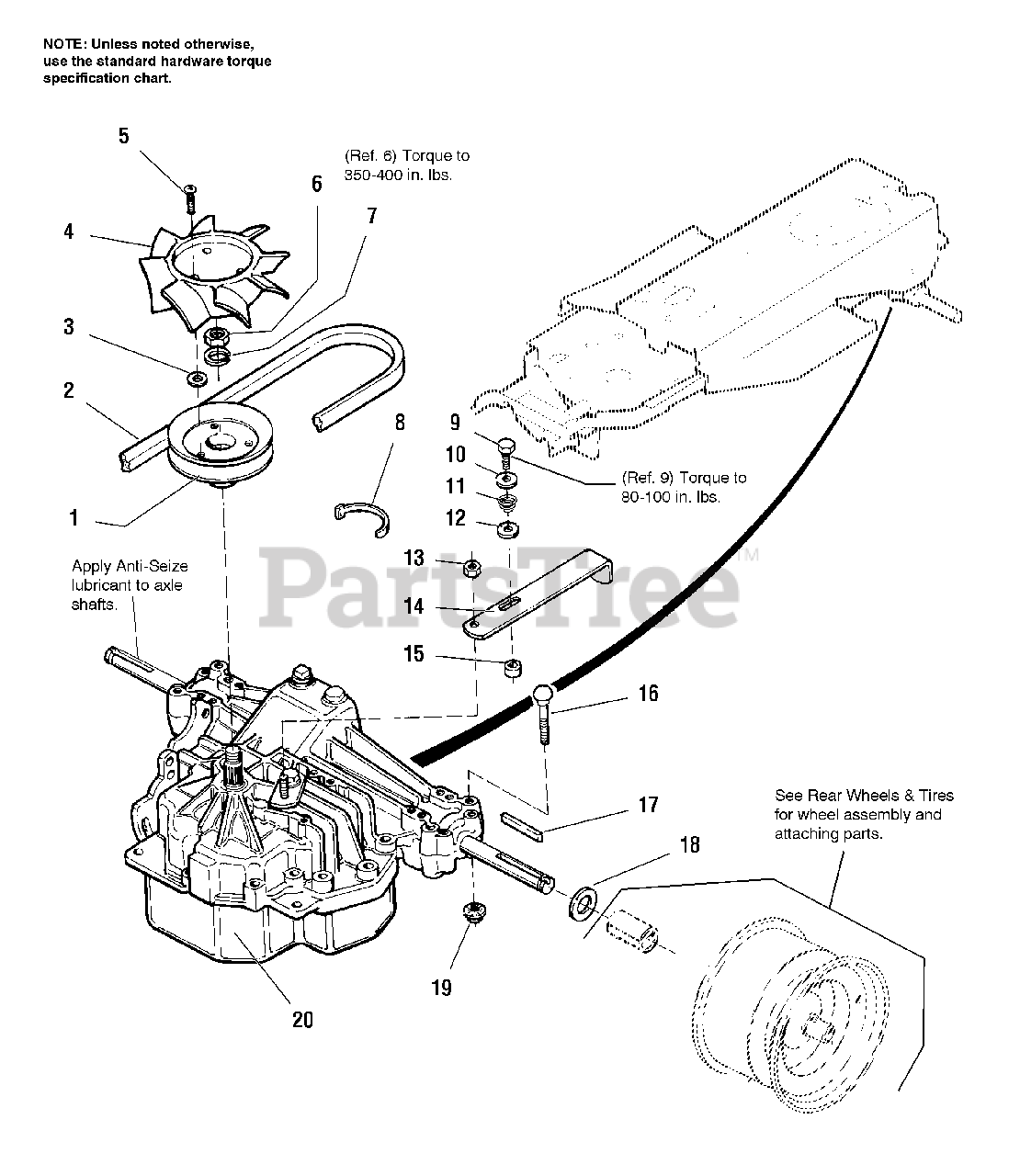

1692775 - Simplicity Broadmoor 38" Lawn Tractor, 15hp Transmission - Drive & Belt Group Parts Diagram

Broadmoor 38" Lawn Tractor, 15hp

Transmission - Drive & Belt Group Parts Diagram

  • Title

1

Simplicity 1709786SM

PULLEY ASSY.

$

$

Not available

2

Simplicity 1672135SM

BELT, Drive

$45.99

$

Usually ships in 2-12 days

0

3

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1707933SM

FAN

$11.99

$

In Stock, only 1 left!

0

5

Simplicity 1933958SM

SCREW, Taptite, 1/4-20 x 1-1/8

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 1919262SM

JAM NUT, Hex, 1/2-20
(Superseded to 703903)

Note: Torque to 350-400 in. lbs.

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 1701011SM

TIE, Cable

$5.49

$

In Stock, only 2 left!

0

9

Simplicity 1960509SM

SCREW, Taptite, #10-24 x 1-1/4

Note: Torque to 80-100 in. lbs.

$1.99

$

Usually ships in 2-12 days

0

10

Simplicity 1960151SM

WASHER, 1/4 x 1-1/4 x 1/16
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

11

Simplicity 2157127SM

SPRING, Conical

$

$

Not available

12

Simplicity 2860210SM

WASHER

Note: Special

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 1920397SM

NUT, Hex, Full, Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1709902SM

LEVER
(Superseded to 1709902ASM)

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1709901SM

SPACER

$9.49

$

Usually ships in 2-12 days

0

16

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

17

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 1960160SM

WASHER, 3/4

$4.99

$

In Stock, Qty 11

0

19

Simplicity 1935048SM

NUT, Hex Flange, small, 2-way lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

20

Simplicity 1686786SM

TRANSAXLE, Hydro Gear 312-0800CT

Note: See "Hydrostatic Transaxle Service Parts - Hydro Gear Models 312-0800CT" illustration and parts list for service parts.

$2165.99

$

Usually ships in 2-12 days

0
