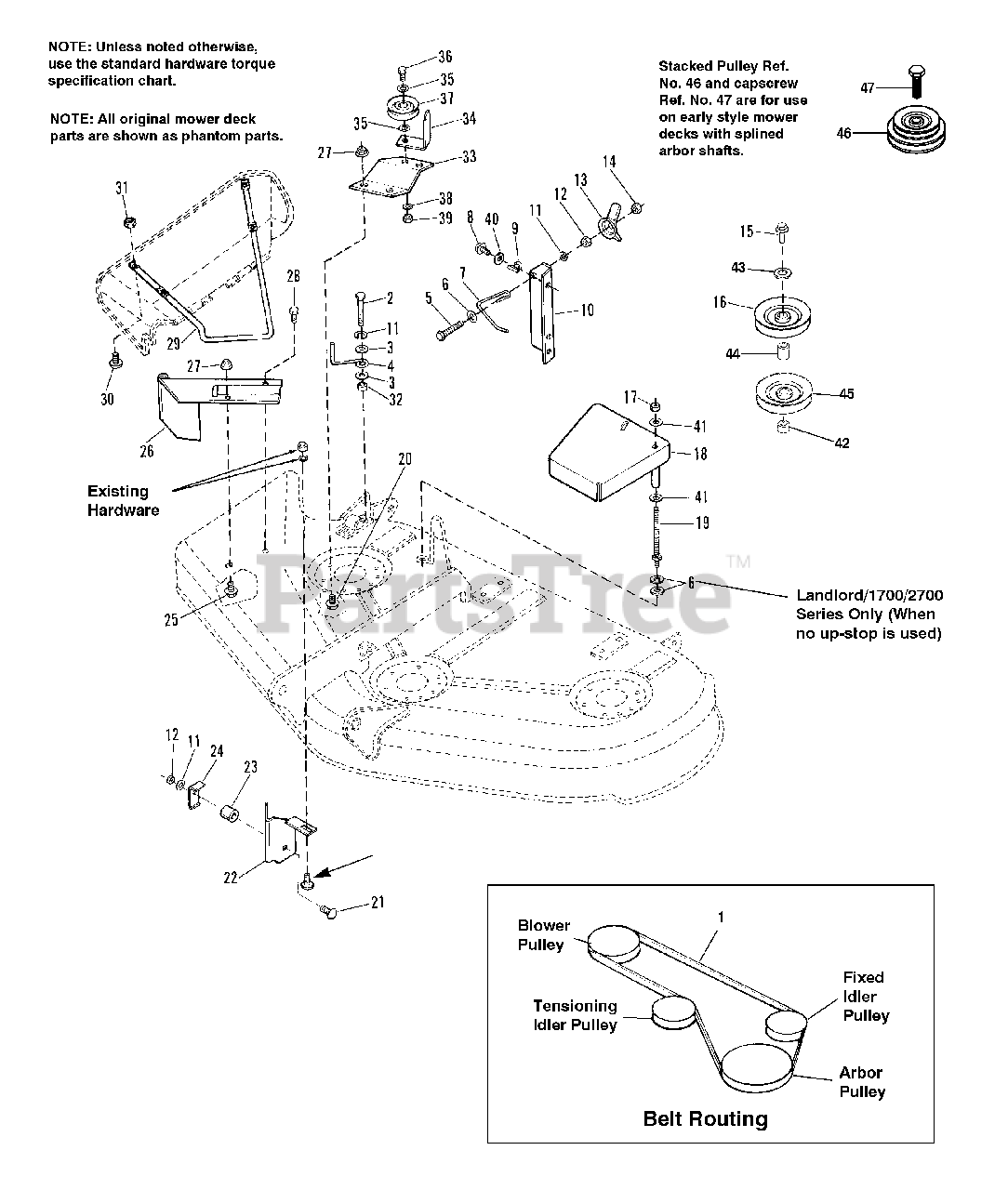

1692715 - Simplicity 44" Turbo Collector Turbo Mounting Group - 44" Broadmoor/1600/2600 & Landlord/1700/2700 Series Parts Diagram

44" Turbo Collector

Turbo Mounting Group - 44" Broadmoor/1600/2600 & Landlord/1700/2700 Series Parts Diagram

  • Title

1

Simplicity 1732945SM

BELT

$25.99

$

Usually ships in 2-12 days

0

2

Simplicity 1921221SM

CAPSCREW 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

3

Simplicity 1919326SM

WASHER, Flat

$4.49

$

In Stock, Qty 6

0

4

Simplicity 2172845SM

BELTSTOP

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 1960318SM

CAPSCREW 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1919381SM

WASHER, Flat
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 1705064SM

SPRING LATCH

$44.99

$

Usually ships in 2-12 days

0

8

Simplicity 1925003SM

SCREW, Taptite 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

9

Simplicity 1678435SM

BELT STOP

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1704982ASM

ANCHOR, Turbo, 44"

$67.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917356SM

LOCKWASHER 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1679163SM

NUT, Wing Assy, 5/16

$69.99

$

In Stock, only 1 left!

0

14

Simplicity 1923362SM

NUT, Hex, Centerlock 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

15

Simplicity 1713523SM

NUT, Sleeve

$41.99

$

In Stock, only 1 left!

0

16

Simplicity 1709941SM

PULLEY ASSY Turbo

$28.99

$

Usually ships in 2-12 days

0

17

Simplicity 1919438SM

HEX NUT, Nylock
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1705279SM

SHIELD ASSY., Belt

$45.99

$

Usually ships in 2-12 days

0

19

Simplicity 1705123SM

STUD, 5/16-18 x 5-13/64

$27.99

$

Usually ships in 2-12 days

0

20

Simplicity 1923325SM

CAPSCREW, Hex Hd. 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

21

Simplicity 1960223SM

CARRIAGE BOLT 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

22

Simplicity 1704880ASM

BRACKET ASSY., Cutoff

$112.99

$

Usually ships in 2-12 days

0

23

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 1705308ASM

BRACKET, "L"

$33.99

$

Usually ships in 2-12 days

0

25

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

26

Simplicity 1722546

PIVOT ASSY., 44
(Superseded to 1722546ASM)

$216.99

$

Usually ships in 2-12 days

0

27

Simplicity 1931277SM

NUT, Hex, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Simplicity 1931648SM

SCREW. Hex Whiz- lock 5/16-18 x 2
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

29

Simplicity 1718295ASM

ROD, Deflector

$112.99

$

Usually ships in 2-12 days

0

30

Simplicity 1960404SM

SCREW, Truss Hd

$3.99

$

In Stock, only 4 left!

0

31

Simplicity 1933896SM

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

32

Simplicity 1710703SM

SPACER

$6.49

$

In Stock, Qty 20+

0

33

Simplicity 1704768ASM

BRACKET, Idler, Turbo

$13.99

$

Usually ships in 2-12 days

0

34

Simplicity 1705277SM

LATCH, Belt Cover

$8.49

$

Usually ships in 2-12 days

0

35

Simplicity 1924940SM

WASHER, Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 1921969SM

CAPSCREW, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

37

Simplicity 1714817SM

PULLEY ASSY, Idler
(Superseded to 703056)

$42.99

$

In Stock, Qty 6

0

38

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

39

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1924874SM

WASHER, Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

42

Simplicity ~REF

HUB (Existing)

$

$

Currently unavailable

43

Simplicity 1603592SM

WASHER, Belleville

$11.99

$

Usually ships in 2-12 days

0

44

Simplicity 1713634SM

HUB, Pulley, Double, 1.160" Long

$16.99

$

Usually ships in 2-12 days

0

45

Simplicity ~REF

V-PULLEY (Existing)

$

$

Currently unavailable

46

Simplicity 1704796SM

PULLEY, Double
(Superseded to 1704796ASM)

Note: (Used with Early Production 1692715 Only)

$219.99

$

In Stock, only 1 left!

0

47

Simplicity 1927531SM

CAPSCREW, 7/16-14 x 2

Note: (Used with Early Production 1692715 Only)

$5.49

$

In Stock, Qty 5

0
