1692714 - Simplicity 38" Turbo Collector for Broadmoor, 1600 Series, 2600 Series Turbo Blower Assy. - 38 44 50 Broadmoor/1600/2600, Landlord/1700/2700, & ZT Parts Diagram

38" Turbo Collector for Broadmoor, 1600 Series, 2600 Series

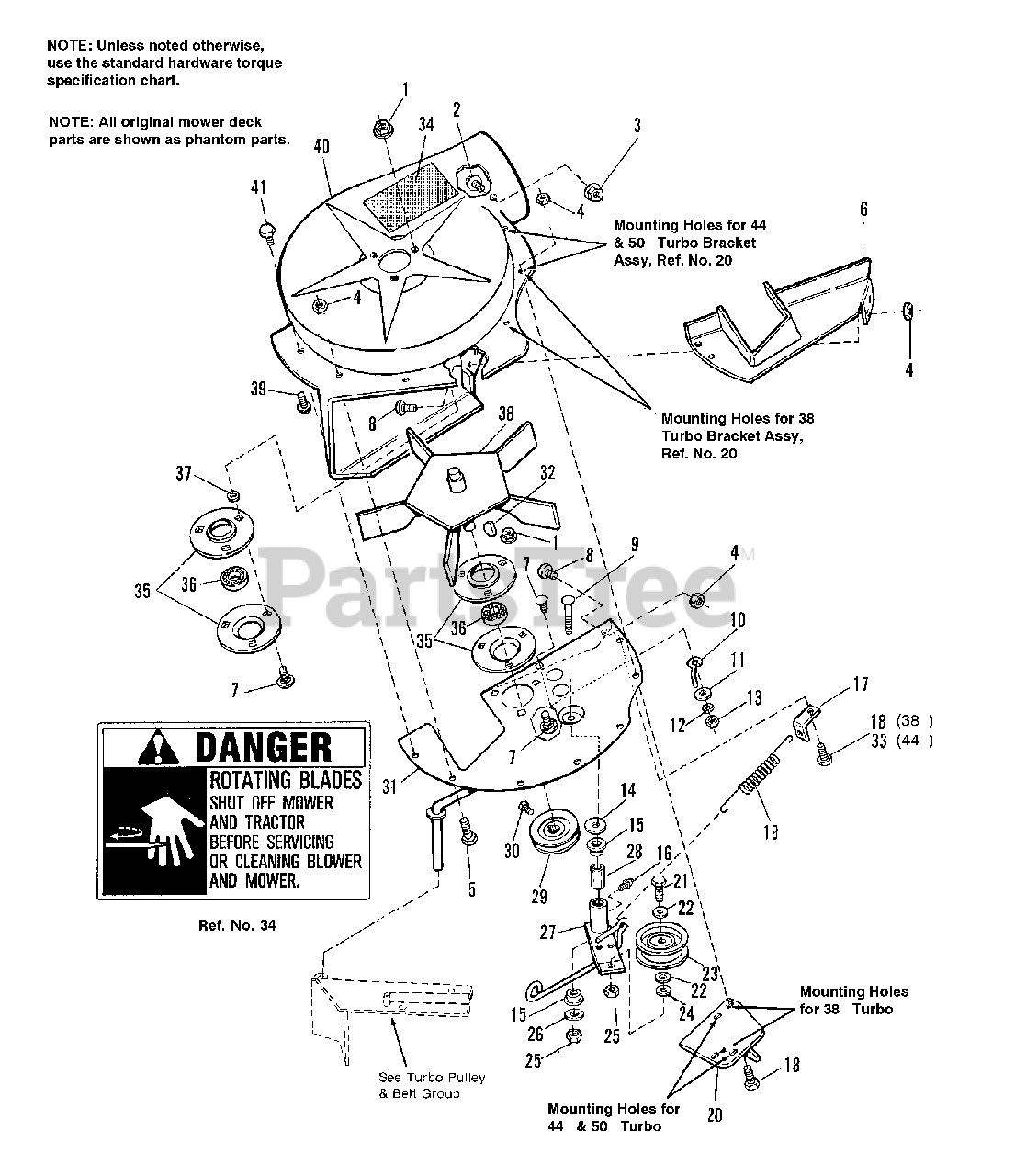

Turbo Blower Assy. - 38 44 50 Broadmoor/1600/2600, Landlord/1700/2700, & ZT Parts Diagram

  • Title

1

Simplicity 1935048SM

NUT, Flange, Whizlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 1920397SM

NUT, Hex, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1930641SM

NUT, Hex, Flange Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1921959SM

CAPSCREW, Hex, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

6

Simplicity 1705267SM

PLATE, Cover

$32.99

$

In Stock, Qty 6

0

7

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

8

Simplicity 1960472SM

SCREW, Truss Hd., 1/4-18 x 5/8

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 1931355SM

CARRIAGE BOLT, 3/8-16 x 2-1/4

$5.99

$

In Stock, Qty 11

0

10

Simplicity 1678435SM

BELT STOP

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1924874SM

WASHER, Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1917356SM

WASHER, Spring Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917372SM

NUT, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1924361SM

WASHER, Flat
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

16

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

17

Simplicity 1668500A

BRACKET, Anchor, Spring
(Superseded to 1668500SM)

$19.99

$

In Stock, only 1 left!

0

18

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

Note: (38" Models)

$4.49

$

In Stock, Qty 8

0

19

Simplicity 1716853SM

SPRING, Tension

$12.99

$

In Stock, only 4 left!

0

20

Simplicity 1704983ASM

BRACKET ASSY., Turbo

$

$

Not available

21

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1726348SM

IDLER PULLEY ASSY.

$24.99

$

In Stock, only 4 left!

0

24

Simplicity 1933263SM

WASHER, Flat
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

25

Simplicity 1960251SM

NUT, Hex, Jam, Center Lock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

26

Simplicity 1924940SM

WASHER, Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1706284SM

LEVER ASSY, Turbo
(Superseded to 1706284AYP)

Note: (Incl. Ref. Nos. 15 & 16)

$80.99

$

In Stock, Qty 10

0

28

Simplicity 1676833SM

SPACER

$27.99

$

Usually ships in 2-12 days

0

29

Simplicity 1706634SM

PULLEY, Driven

$45.99

$

In Stock, only 3 left!

0

30

Simplicity 1960619SM

SETSCREW, Hex, Socket Hd., 5/16-18 x 5/16

$3.49

$

In Stock, Qty 8

0

31

Simplicity 1706465ASM

PLATE ASSY.

$370.99

$

In Stock, only 1 left!

0

32

Simplicity 2860403SM

KEY, Woodruff, Modified

$10.99

$

In Stock, only 1 left!

0

33

Simplicity 1924009SM

CAPSCREW, Hex Hd., 1/4-20 x 7/8
(Superseded to 703819)

Note: (44" Models)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1700259SM

DECAL, Danger, Blower

$27.99

$

Usually ships in 2-12 days

0

35

Simplicity 1665982ASM

BEARING, Retainer
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 17

0

36

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

37

Simplicity 1933988SM

PUSH NUT, 3/8
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 1706631ASM

FAN ASSY., 5 Blade

$384.99

$

In Stock, only 1 left!

0

39

Simplicity 1960728SM

SCREW, Truss Hd.., 1/4-18 x 1/4

$3.99

$

In Stock, only 4 left!

0

40

Simplicity 1724441SM

FAN HOUSING
(Superseded to 84004565)

Note: (Incl. Ref. No. 34)

$240.99

$

Usually ships in 2-12 days

0

41

Simplicity 1925003SM

CAPSCREW, Hex, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0
