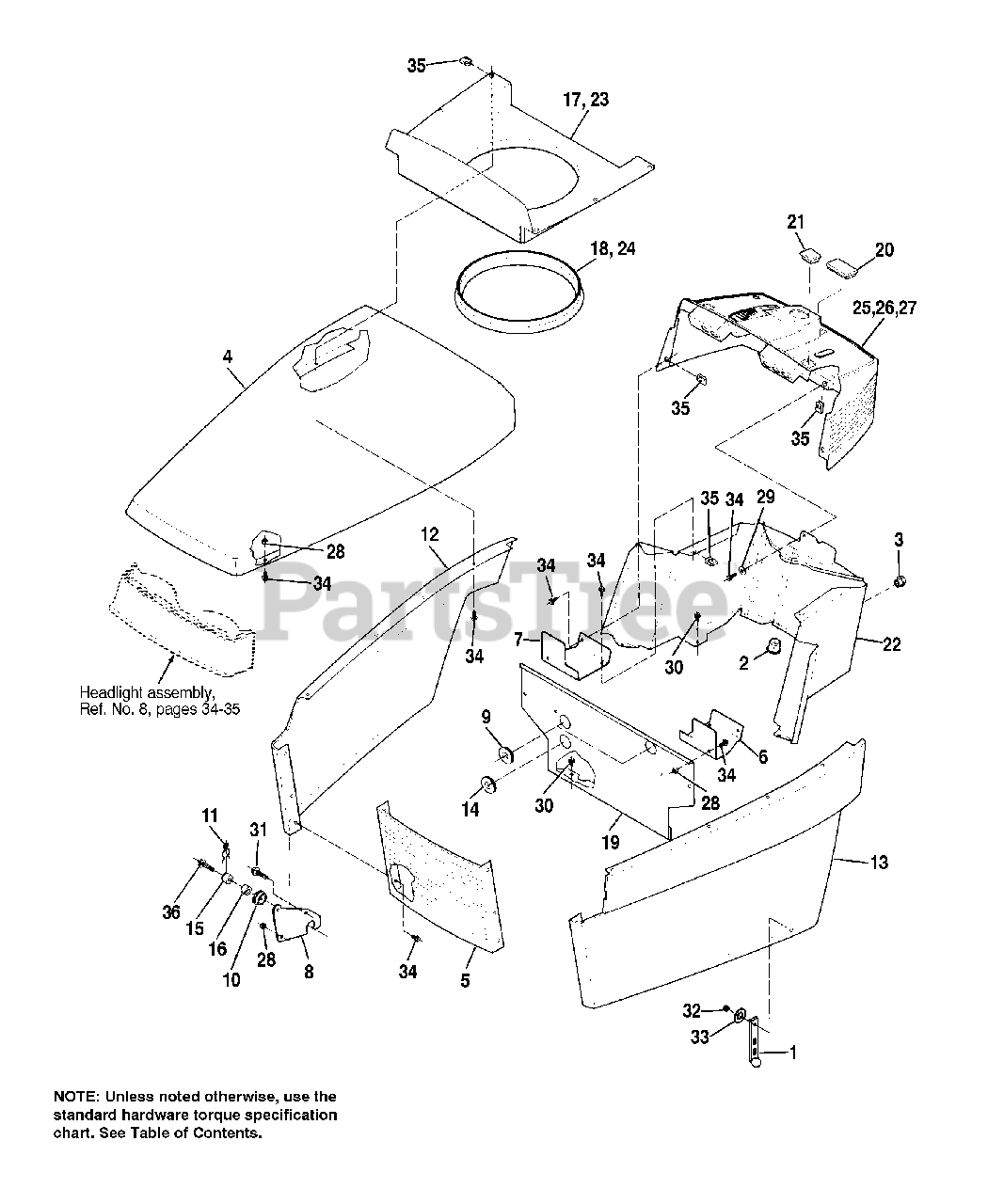

1692691 - Simplicity Broadmoor 38" Lawn Tractor, 14hp Hood, Grille & Dash Group Parts Diagram

Broadmoor 38" Lawn Tractor, 14hp

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

2

Simplicity 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1670675SM

PLUG, Bumper

Note: (Gear models only)

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1703240SM

HOOD, Orange
(Superseded to 1703240CSM)

$151.99

$

Usually ships in 2-12 days

0

4

Simplicity 1729505SM

HOOD, Red
(Superseded to 1703240DSM)

$151.99

$

Usually ships in 2-12 days

0

5

Simplicity 1721203SM

GRILLE
(Superseded to 1721203ASM)

$

$

Not available

6

Simplicity 1719845SM

SUPPORT, Bulkhead, LH

$

$

Not available

7

Simplicity 1719978SM

SUPPORT, Bulkhead, RH

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 1716128SM

HINGE, Hood
(Superseded to 1716128BMYP)

$23.99

$

Usually ships in 2-12 days

0

9

Simplicity 1704342SM

GROMMET, Bulkhead

Note: (Qty. 1 used on hydro models)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1704626SM

SPACER, Hood

$6.99

$

In Stock, only 2 left!

0

11

Simplicity 1704628SM

CLIP, Hairpin

$4.49

$

In Stock, only 4 left!

0

12

Simplicity 1704878CSM

SIDE PANEL ASSY., RH, Orange

$

$

Not available

12

Simplicity 1704878DSM

SIDE PANEL ASSY., RH, Red

$

$

Not available

13

Simplicity 1704879CSM

SIDE PANEL ASSY., LH, Orange

$142.99

$

Usually ships in 2-12 days

0

13

Simplicity 1704879DSM

SIDE PANEL ASSY., LH, Red

$94.99

$

Usually ships in 2-12 days

0

14

Simplicity 1704927SM

GROMMET, Wire Harness

$6.49

$

Usually ships in 2-12 days

0

15

Simplicity 1705248SM

PIVOT, Hood

$

$

Not available

16

Simplicity 1705249SM

SPACER

$

$

Not available

17

Simplicity 1707325SM

AIR DUCT

Note: (14 & 16 HP Hydro models only)

$53.99

$

Usually ships in 2-12 days

0

18

Simplicity 1707326SM

MOLDING, Air Duct

Note: (14 & 16 HP Hydro models only)

$

$

Not available

19

Simplicity 1722006SM

BULKHEAD
(Superseded to 1722006ASM)

$30.99

$

Usually ships in 2-12 days

0

20

Simplicity 1709187SM

PLUG, Hole, Hourmeter

$2.99

$

In Stock, only 4 left!

0

21

Simplicity 1709188SM

PLUG, Hole, Electric Lift

$4.99

$

In Stock, only 1 left!

0

22

Simplicity 1709238ASM

DASH, Lower

$127.99

$

Usually ships in 2-12 days

0

23

Simplicity 1713301

AIR DUCT

Note: (15 HP models only)

$

$

Not available

24

Simplicity 1707326SM

MOLDING, Air Duct

Note: (15 HP models only)

$

$

Not available

25

Simplicity 1714021

DASH ASSY.

Note: (Gear models only)

$

$

Not available

26

Simplicity 1686642SM

DASH ASSY.

Note: (14 & 16 HP Hydro models only)

$

$

Not available

27

Simplicity 1686642SM

DASH ASSY.

Note: (15 HP Hydro model only)

$

$

Not available

28

Simplicity 1920397SM

NUT, Hex, Nylon, Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

31

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

32

Simplicity 1933896SM

NUT, Hex, Nylon, Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 1960096SM

WASHER

Note: Special

$3.99

$

In Stock, only 2 left!

0

34

Simplicity 1960295SM

CAPSCREW, Whizlock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 1960368SM

PAL NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1960373SM

SCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0
