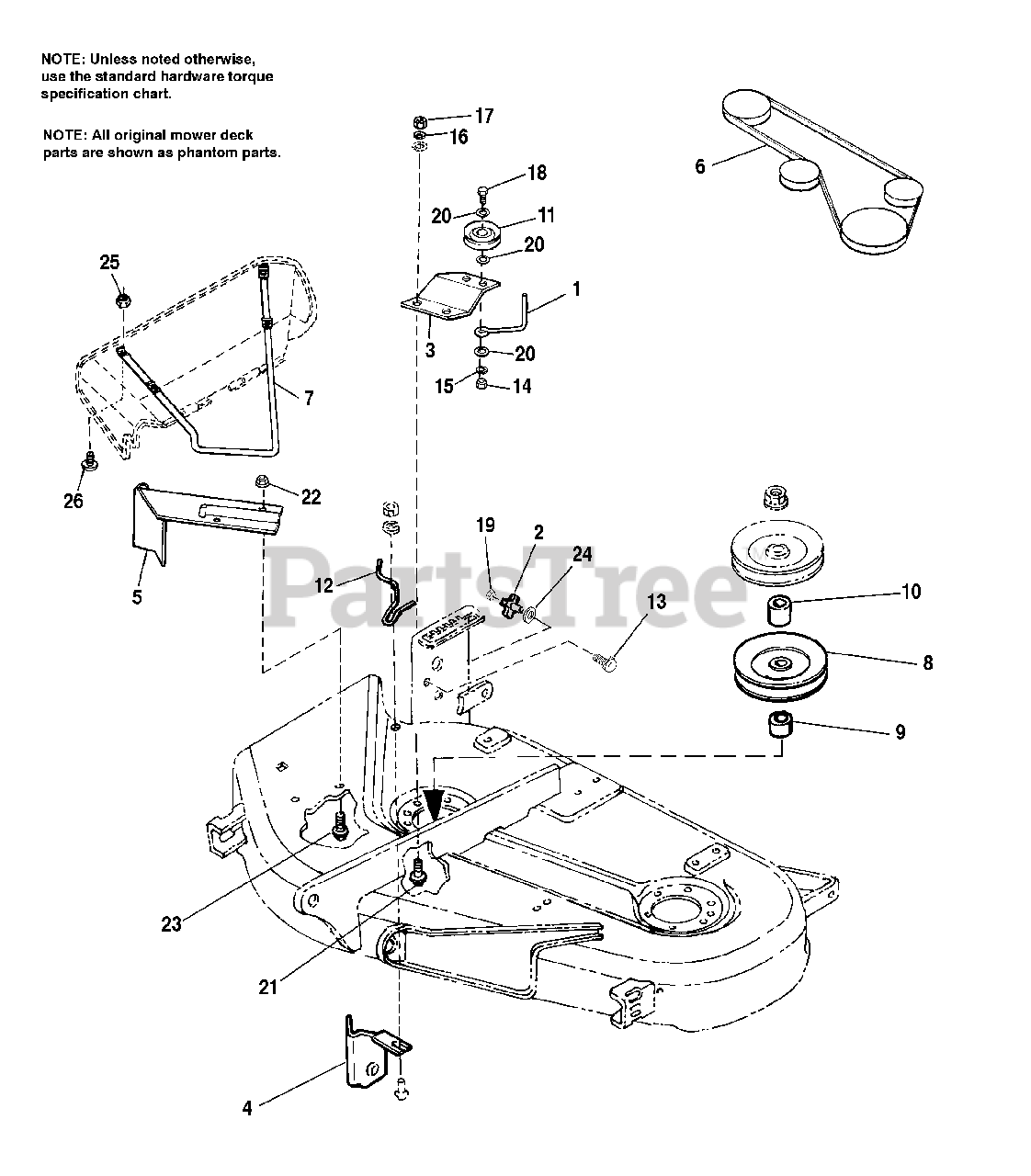

1692626 - Simplicity 38" Turbo Collector for Regent, 500 Series, 2500 Series Turbo Blower Assembly - 38" Regent/500/2500 Series (Part 2) Parts Diagram

38" Turbo Collector for Regent, 500 Series, 2500 Series

Turbo Blower Assembly - 38" Regent/500/2500 Series (Part 2) Parts Diagram

  • Title

1

Simplicity 2172845SM

BELT STOP

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 1670578SM

KNOB

$13.99

$

Usually ships in 2-12 days

0

3

Simplicity 1704768ASM

BRACKET, Idler, Turbo

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 1704881ASM

BRACKET ASSY., Cut-off

$62.99

$

Usually ships in 2-12 days

0

5

Simplicity 1722546

PIVOT ASSY., 38"
(Superseded to 1722546ASM)

$216.99

$

Usually ships in 2-12 days

0

6

Simplicity 1705141SM

BELT

$27.99

$

In Stock, only 2 left!

0

7

Simplicity 1718295

ROD, Deflector
(Superseded to 1718295ASM)

$112.99

$

Usually ships in 2-12 days

0

8

Simplicity 1713091SM

PULLEY

$23.99

$

In Stock, only 1 left!

0

9

Simplicity 1713621SM

HUB, Pulley, Short, Splined

$19.99

$

Usually ships in 2-12 days

0

10

Simplicity 1713624SM

HUB, Pulley, Long

$15.99

$

Usually ships in 2-12 days

0

11

Simplicity 1714817SM

PULLEY ASSY., Idler
(Superseded to 703056)

$42.99

$

In Stock, Qty 6

0

12

Simplicity 1715018SM

SPRING LATCH

$11.99

$

Usually ships in 2-12 days

0

13

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

14

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1921971SM

CAPSCREW, 3/8-16 x 1-1/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

19

Simplicity 1923362SM

LOCKNUT
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

20

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1930600SM

SCREW, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

22

Simplicity 1931277SM

NUT, Hex, Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

24

Simplicity 1933468SM

WASHER, Flat

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1933896SM

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

26

Simplicity 1960404SM

SCREW, Truss Hd., #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0
