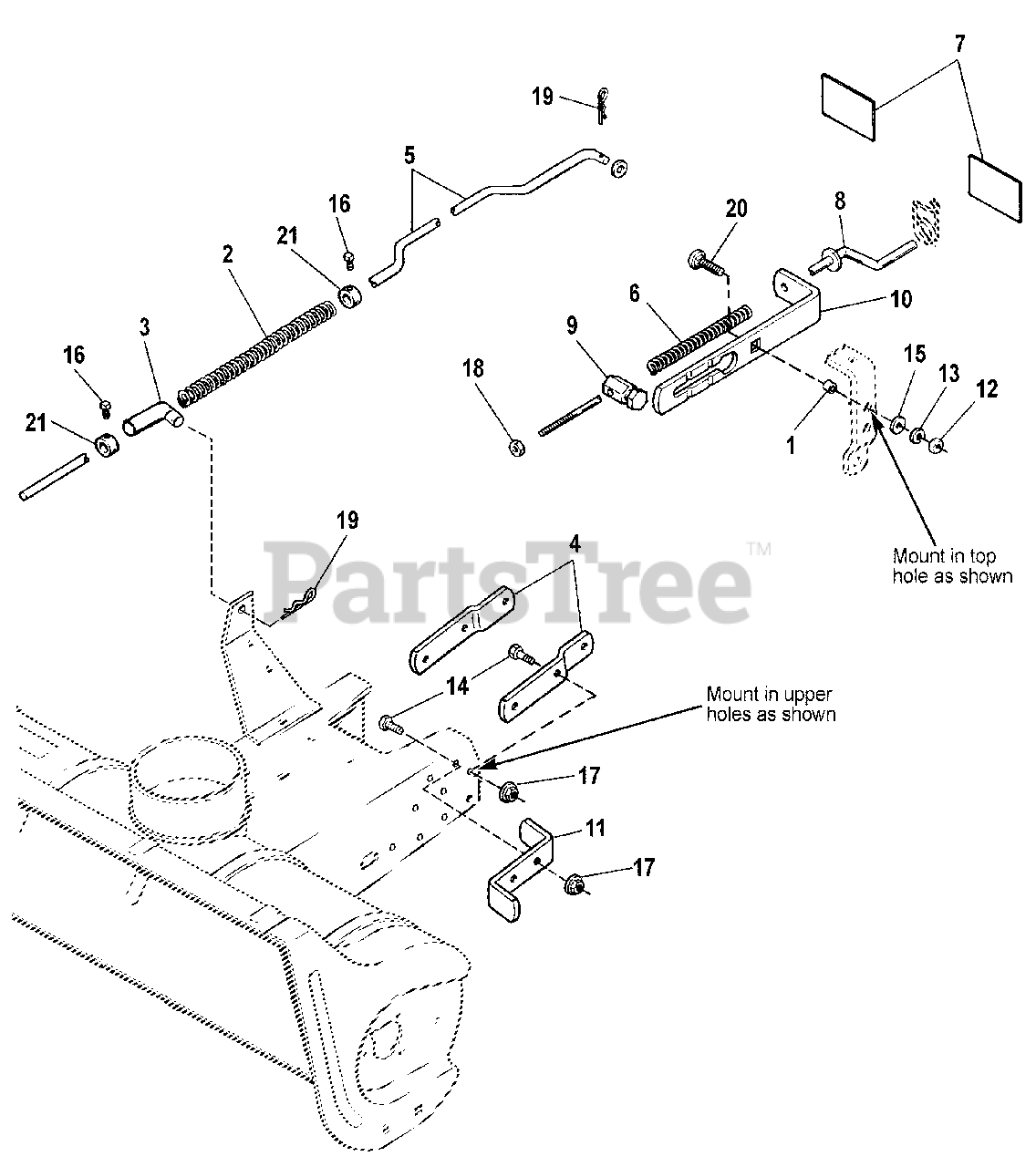

1692622 - Snapper Snow Thrower Hitch Bracket & Lift Rod - Snowthrower Parts Diagram

Snow Thrower Hitch

Bracket & Lift Rod - Snowthrower Parts Diagram

  • Title

1

Snapper 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

2

Snapper 2171011SM

SPRING, Compression

$75.99

$

In Stock, only 1 left!

0

3

Snapper 2171679SM

GUIDE ASSEMBLY, Rod

$76.99

$

Usually ships in 2-12 days

0

4

Snapper 2177565ASM

CLIP, Frame

$13.99

$

In Stock, only 2 left!

0

5

Snapper 1665887SM

ROD, Lift

$69.99

$

Usually ships in 2-12 days

0

6

Snapper 1668282SM

SPRING, Compression

$22.99

$

Usually ships in 2-12 days

0

7

Snapper 1701600SM

REFLECTOR, Rear Red 1-3/8 x 3

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 1723681SM

ROD & WASHER ASSEMBLY, Adjustment
(Superseded to 1757604YP)

$92.99

$

Usually ships in 2-12 days

0

9

Snapper 1704743SM

TRUNNION

$37.99

$

Usually ships in 2-12 days

0

10

Snapper 1722972SM

GUIDE ASSEMBLY, Spring
(Superseded to 1722972ASM)

$79.99

$

Usually ships in 2-12 days

0

11

Snapper 1715488SM

BRACKET, Stop
(Superseded to 1715488ASM)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 1916950SM

NUT, Hex 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

14

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

15

Snapper 1924940SM

WASHER, 5/16
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 1928721SM

SCREW, Set 5/16-18 x 1/2 G8

$4.99

$

In Stock, only 3 left!

0

17

Snapper 1930650SM

NUT-HEX FLANGE 7/16-1

$5.49

$

In Stock, only 4 left!

0

18

Snapper 1930645SM

NUT, Hex Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Snapper 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

20

Snapper 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4 G5

$4.49

$

In Stock, Qty 10

0

21

Snapper 1729258SM

COLLAR, Set
(Superseded to 5010477YP)

$

$

Not available
