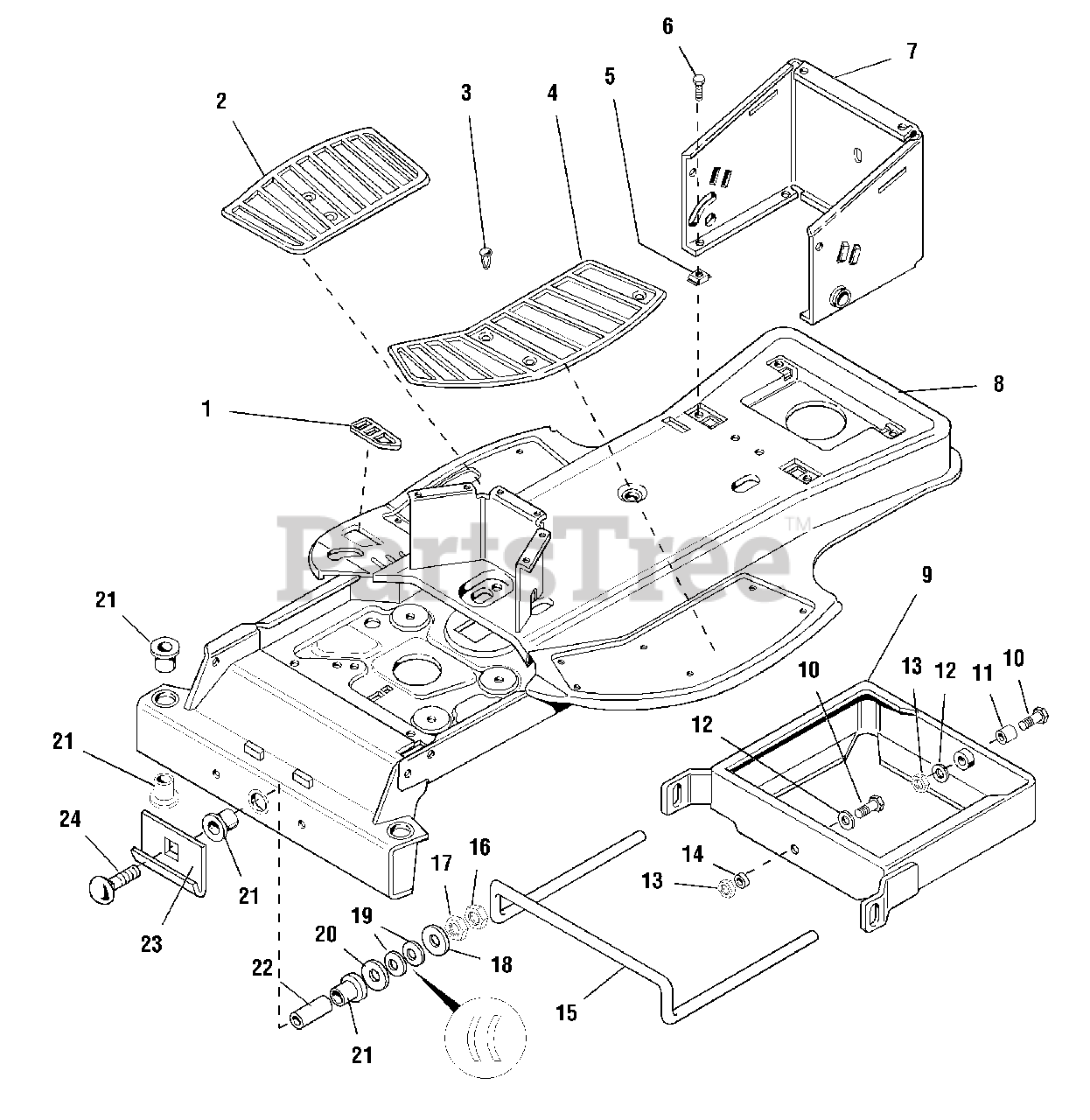

1692601 - Simplicity Regent Lawn Tractor, 14hp Frame Parts Diagram

Regent Lawn Tractor, 14hp

Frame Parts Diagram

  • Title

1

Simplicity 1715015SM

PLUG, Hole

Note: (Gear Models only)

$6.49

$

Usually ships in 2-12 days

0

2

Simplicity 1714418SM

PAD, Footrest, RH

Note: (Hydro Models)

$13.99

$

Usually ships in 2-12 days

0

2

Simplicity 1715016SM

PAD, Footrest, RH

Note: (Gear Models)

$28.99

$

Usually ships in 2-12 days

0

3

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

4

Simplicity 1714417SM

PAD, Footrest, LH

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 1935255SM

NUT, Tinn, 5/16-18

$3.49

$

In Stock, only 3 left!

0

6

Simplicity 1930591SM

SCREW, Whiz, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

7

Simplicity 1715795A

WRAPPER, Rear Frame

Note: (Hydro Models)

$

$

Not available

7

Simplicity 1715796A

WRAPPER, Rear Frame
(Superseded to 1715796ASM)

Note: (Gear Models)

$139.99

$

Usually ships in 2-12 days

0

8

Simplicity 1713383

FRAME ASSEMBLY

$

$

Not available

9

Simplicity 1715033SM

CARRIER ASSEMBLY

Note: (Gear Models)

$

$

Not available

9

Simplicity 1716104SM

CARRIER ASSEMBLY

Note: (Hydro Models)

$153.99

$

Usually ships in 2-12 days

0

10

Simplicity 1920415SM

CAPSCREW, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 1666294SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

13

Simplicity 1930645SM

NUT, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Simplicity 1686718SM

SPACER

$

$

Not available

15

Simplicity 1713400SM

TORSION BAR

$54.99

$

Usually ships in 2-12 days

0

16

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1919438SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1920283SM

WASHER, Large

$4.99

$

In Stock, Qty 5

0

19

Simplicity 1676725SM

WASHER, Spring

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1960528SM

WASHER, 3/4 x 1-1/4 x 1/2

$7.49

$

Usually ships in 2-12 days

0

21

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

22

Simplicity 1713447SM

SPACER

$29.99

$

Usually ships in 2-12 days

0

23

Simplicity 1713568SM

J-HOOK

$

$

Not available

24

Simplicity 1960748SM

CARRIAGE BOLT, 5/16-18 x 3-1/4

$4.49

$

Usually ships in 2-12 days

0
