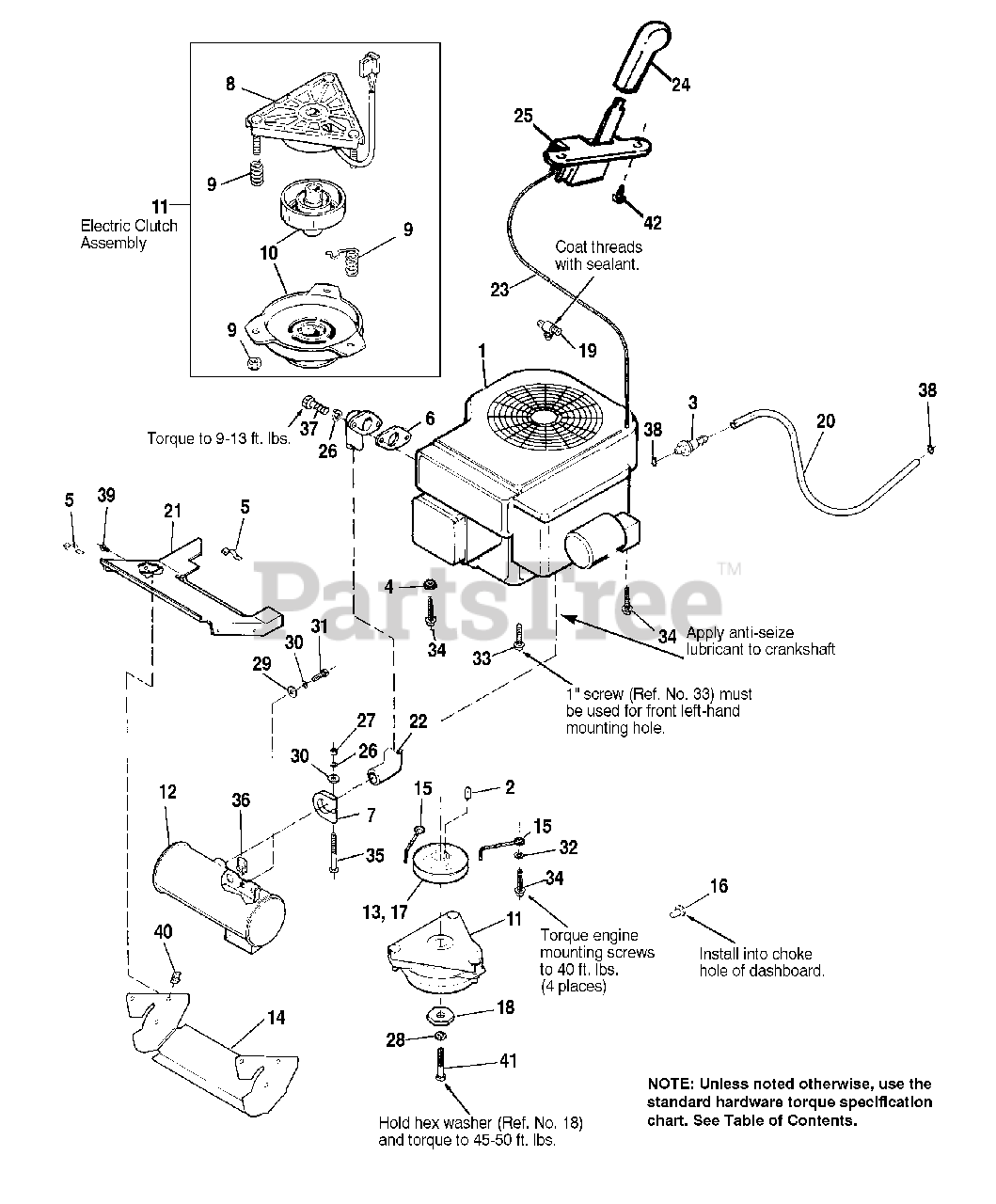

1692532 - Simplicity Broadmoor Lawn Tractor, 15hp Engine Group - Electric Clutch - 15HP Single Cylinder Parts Diagram

Broadmoor Lawn Tractor, 15hp

Engine Group - Electric Clutch - 15HP Single Cylinder Parts Diagram

  • Title

1

ENGINE, Briggs & Stratton

$

$

Not available

2

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 2173206SM

FUEL FILTER
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

4

Simplicity 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 2834683SM

CLIP
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

In Stock, only 1 left!

0

7

Simplicity 1676183SM

CLAMP, Muffler

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1679101

FIELD ASSY., Clutch

$

$

Not available

9

Simplicity 1679104SM

SPRING & NUT KIT

$12.99

$

Usually ships in 2-12 days

0

10

Simplicity 1703816SM

ROTOR & ARMATURE ASSY.

$555.99

$

Usually ships in 2-12 days

0

11

Simplicity 1703816SM

ELECTRIC CLUTCH

Note: (Incl. Ref. Nos. 8 - 10)

$555.99

$

Usually ships in 2-12 days

0

12

Simplicity 1703971SM

MUFFLER ASSY.

$213.99

$

Usually ships in 2-12 days

0

13

Simplicity 1704307ASM

PULLEY ASSY.

Note: (Hydro models)

$120.99

$

Usually ships in 2-12 days

0

14

Simplicity 1704357SM

DUCT, Lower Muffler
(Superseded to 1704357ASM)

$179.99

$

Usually ships in 2-12 days

0

15

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 2 left!

0

16

Simplicity 1705358SM

FASTENER, Panel

Note: Install into choke hole of dashboard.

$

$

Not available

17

Simplicity 1705441SM

PULLEY ASSY.

Note: (Gear models)

$

$

Not available

18

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

19

Simplicity 1708405SM

VALVE, Oil Drain

Note: Coat threads with sealant.

$38.99

$

Usually ships in 2-12 days

0

20

Simplicity 1708549SM

HOSE, Fuel, 38" Long

$

$

Not available

21

Simplicity 1713300SM

DUCT, Top, Muffler

$28.99

$

Usually ships in 2-12 days

0

22

Simplicity 1713302SM

PIPE, Exhaust

$

$

Not available

23

Simplicity 1713305SM

CABLE, Throttle

$

$

Not available

24

Simplicity 1713846SM

KNOB, Throttle

$15.99

$

In Stock, only 1 left!

0

25

Simplicity 1714065SM

THROTTLE CONTROL ASSY.

$64.99

$

Usually ships in 2-12 days

0

26

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

30

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1927187SM

SCREW, Hex, Washer Hd., Taptite, 3/8-16 x 1

Note: 1" screw (Ref. No. 33) must be used for front left-hand mounting hole.

$4.49

$

In Stock, only 4 left!

0

34

Simplicity 1930598SM

SCREW, Hex, Washer Hd., Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

Note: Torque engine mounting screws to 40 ft. lbs.

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

36

Simplicity 1935255SM

PAL NUT, 5/16-18

$3.49

$

In Stock, only 2 left!

0

37

Simplicity 1936228SM

CAPSCREW, Socket Hd., 5/16-18 x 3/4

Note: Torque to 9-13 ft. lbs.

$4.49

$

In Stock, only 1 left!

0

38

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

39

Simplicity 1960295SM

SCREW, Flange, Whizlock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

40

Simplicity 1960368SM

PAL NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1960370SM

CAPSCREW, 7/16-20 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

42

Simplicity 1960536SM

SCREW, Hex, Washer Hd., Plastite, 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0
