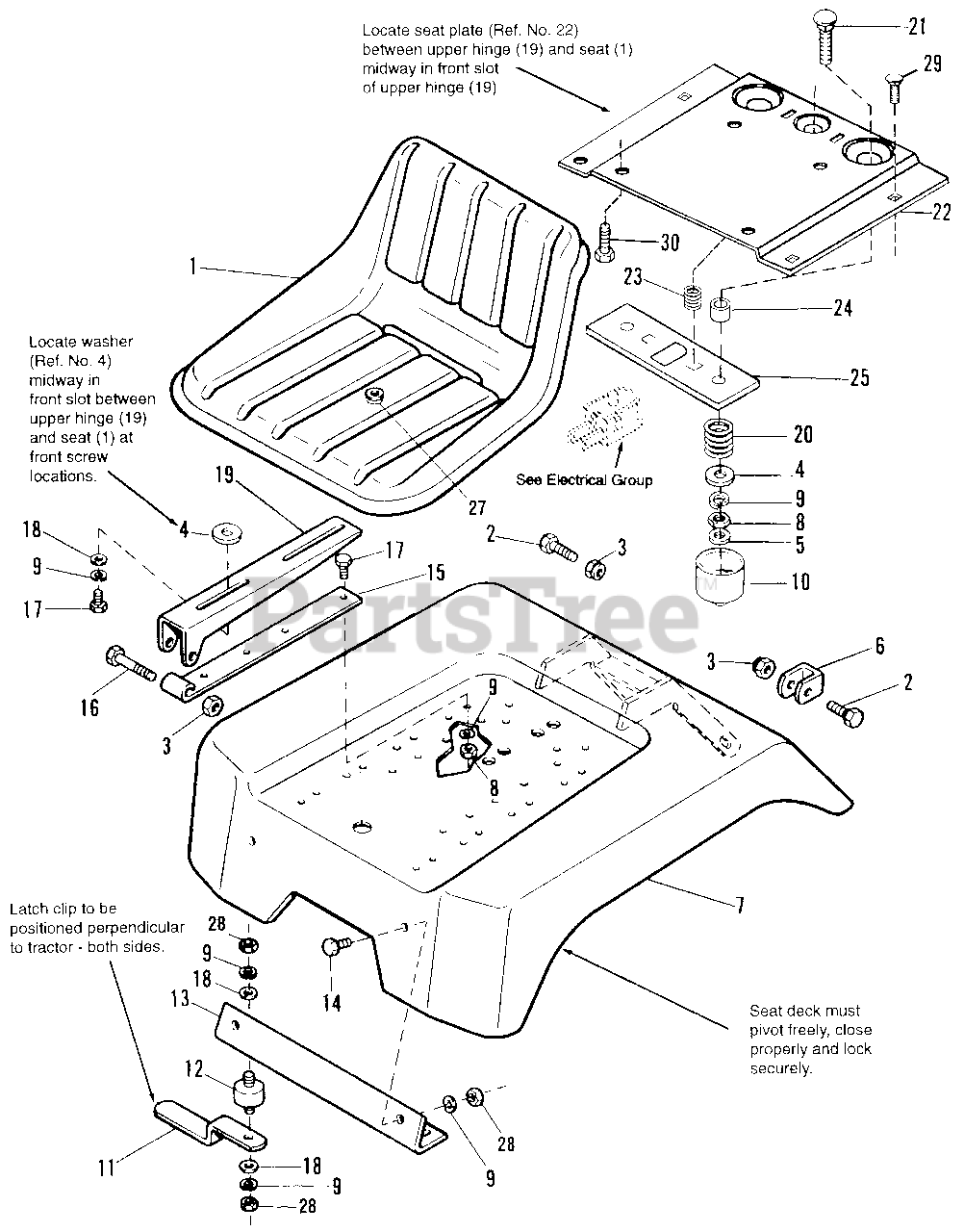

1692450 - Simplicity Sovereign Garden Tractor, 18hp Seat & Deck Group Parts Diagram

Sovereign Garden Tractor, 18hp

Seat & Deck Group Parts Diagram

  • Title

1

Simplicity 1687020SM

SEAT ASSY. (Incl. Ref. No. 26)

Note: Mfg. Nos. 1692143 & 1692144 can be converted to later style seat with Seat Kit, part no. 1686644. Kit includes Ref. Nos. 1, 18 (qty. 4), 22, 28 (qty. 4), 29 & 30.

$

$

Not available

2

Simplicity 1920415SM

CAPSCREW, Hex Hd,3/8-16x1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Simplicity 1933468SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 1960201SM

WASHER

$4.99

$

In Stock, Qty 14

0

6

Simplicity 1607870SM

STOP, Seat Deck
(Superseded to 1607870ASM)

$52.99

$

Usually ships in 2-12 days

0

7

Simplicity 1679334A

DECK ASSY., Seat

$

$

Not available

8

Simplicity 1917372SM

NUT, Hex, Fu11,5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1704724SM

COVER, Spring

$7.99

$

In Stock, only 2 left!

0

11

Simplicity 1606823SM

CLIP

$

$

Not available

12

Simplicity 1666744SM

CONNECTOR, Cushion

$10.99

$

In Stock, only 2 left!

0

13

Simplicity 2164029SM

BRACKET, Seat Deck, Front

$

$

Not available

14

Simplicity 1925205SM

CAPSCREW, Hex Hd, 5/16-18x5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 1666737SM

HINGE, Lower

$17.99

$

Usually ships in 2-12 days

0

16

Simplicity 1923701SM

CAPSCREW, Hex Hd., 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18x3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

18

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 8

0

19

Simplicity 1701559SM

HINGE, Upper

$13.99

$

Usually ships in 2-12 days

0

20

Simplicity 1704728SM

SPRING

$9.99

$

In Stock, only 2 left!

0

21

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18x 1-1/2
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 1714167SM

PLATE, Seat

$

$

Not available

23

Simplicity 1704402SM

SPRING

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1707571SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

25

Simplicity 1707459SM

PLATE, Switch
(Superseded to 1707459ASM)

$7.99

$

Usually ships in 2-12 days

0

26

Simplicity 1714483SM

COVER, Seat

$

$

Not available

27

Simplicity 1714494

PUSH NUT

$

$

Not available

28

Simplicity 1919438SM

NUT, Hex, Lock, Esna, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

30

Simplicity 1930591SM

SCREW, Hex, Whizlock, 5/16-18 x 5/8
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0
