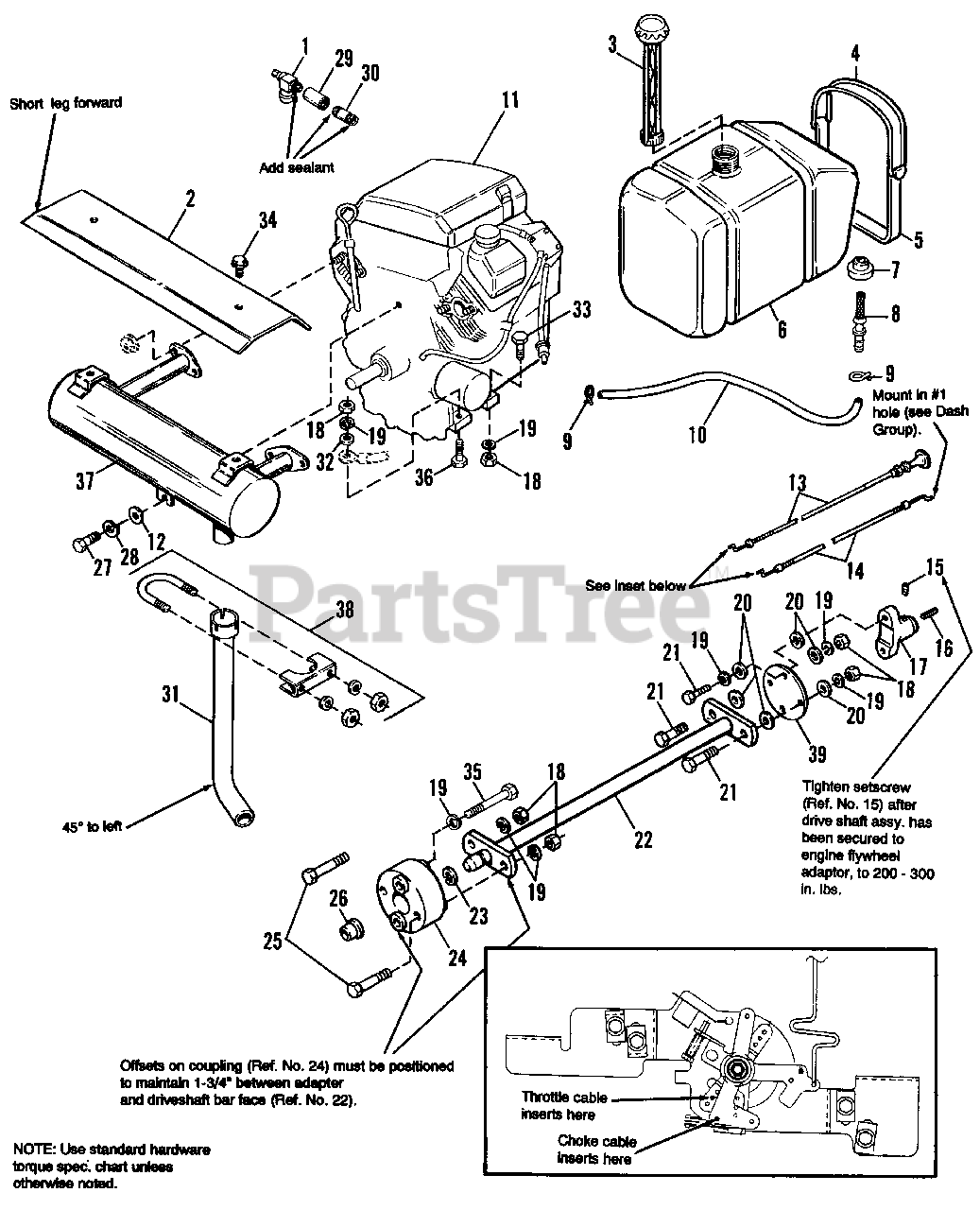

1692450 - Simplicity Sovereign Garden Tractor, 18hp Engine, Exhaust, & Drive Shaft Group Parts Diagram

Sovereign Garden Tractor, 18hp

Engine, Exhaust, & Drive Shaft Group Parts Diagram

  • Title

1

Simplicity 1708405SM

SHUT OFF VALVE

$38.99

$

Usually ships in 2-12 days

0

2

Simplicity 1708873ASM

HEAT SHIELD ASSY.

$28.99

$

Usually ships in 2-12 days

0

3

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

4

Simplicity 2172744SM

STRAP, Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 2171330SM

STRAP, Tank

$43.99

$

Usually ships in 2-12 days

0

6

Simplicity 1687040SM

TANK ASSY., Fuel

Note: Ref. No. 6 includes Ref. Nos. 6, 7, 8, 9 (Qty. 1) & 10.

$

$

Not available

7

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

8

Simplicity 1664460SM

FITTING

$9.99

$

In Stock, Qty 17

0

9

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 1718678SM

HOSE, Fuel, 12"

$

$

Not available

11

ENGINE, Kohler, 18 HP

$

$

Not available

12

Simplicity 1925125SM

WASHER, 15/32

$6.49

$

In Stock, only 2 left!

0

13

Simplicity 1708764SM

CHOKE CONTROL, w/knob

$91.99

$

Usually ships in 2-12 days

0

14

Simplicity 1708763SM

THROTTLE CONTROL
(Superseded to 1666268SM)

$39.99

$

In Stock, Qty 5

0

15

Simplicity 1960475SM

SETSCREW, 3/8-24 x 3/8

$3.49

$

In Stock, only 1 left!

0

16

Simplicity 2157427SM

KEY, Drive Shaft

$5.49

$

In Stock, only 1 left!

0

17

Simplicity 2172264SM

FLANGE, Drive Shaft

$

$

Not available

18

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

20

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

21

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1708729SM

SHAFT ASSY., Drive

$188.99

$

Usually ships in 2-12 days

0

23

Simplicity 2827794SM

RETAINING RING

$3.49

$

In Stock, Qty 16

0

24

Simplicity 1668637

COUPLING, Compression

$

$

Not available

25

Simplicity 1921972SM

CAPSCREW, Hex Hd., 3/8-16 x 2-3/4
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

26

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

27

Simplicity 1920676SM

CAPSCREW, Hex Hd., 7/16-14 x 1

$5.49

$

In Stock, Qty 12

0

28

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 2860477SM

COUPLING, Pipe, Straight

$7.99

$

Usually ships in 2-12 days

0

30

Simplicity 2801489

NIPPLE, Pipe, 3/8 x 1

$

$

Not available

31

Simplicity 1708761SM

PIPE, Exhaust, Elbow

$196.99

$

In Stock, only 1 left!

0

32

Simplicity 1924940SM

WASHER, 11/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

34

Simplicity 1924856SM

SCREW, Hex Hd., Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

35

Simplicity 1921972SM

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

36

Simplicity 1923701SM

CAPSCREW, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

37

Simplicity 1686656SM

MUFFLER, Exhaust

$786.99

$

Usually ships in 2-12 days

0

38

Simplicity 1712286SM

CLAMP, Exhaust

$

$

Not available

39

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0
