1692449 - Simplicity Sovereign 48" Garden Tractor, 18hp Front Axle Group Parts Diagram

Sovereign 48" Garden Tractor, 18hp

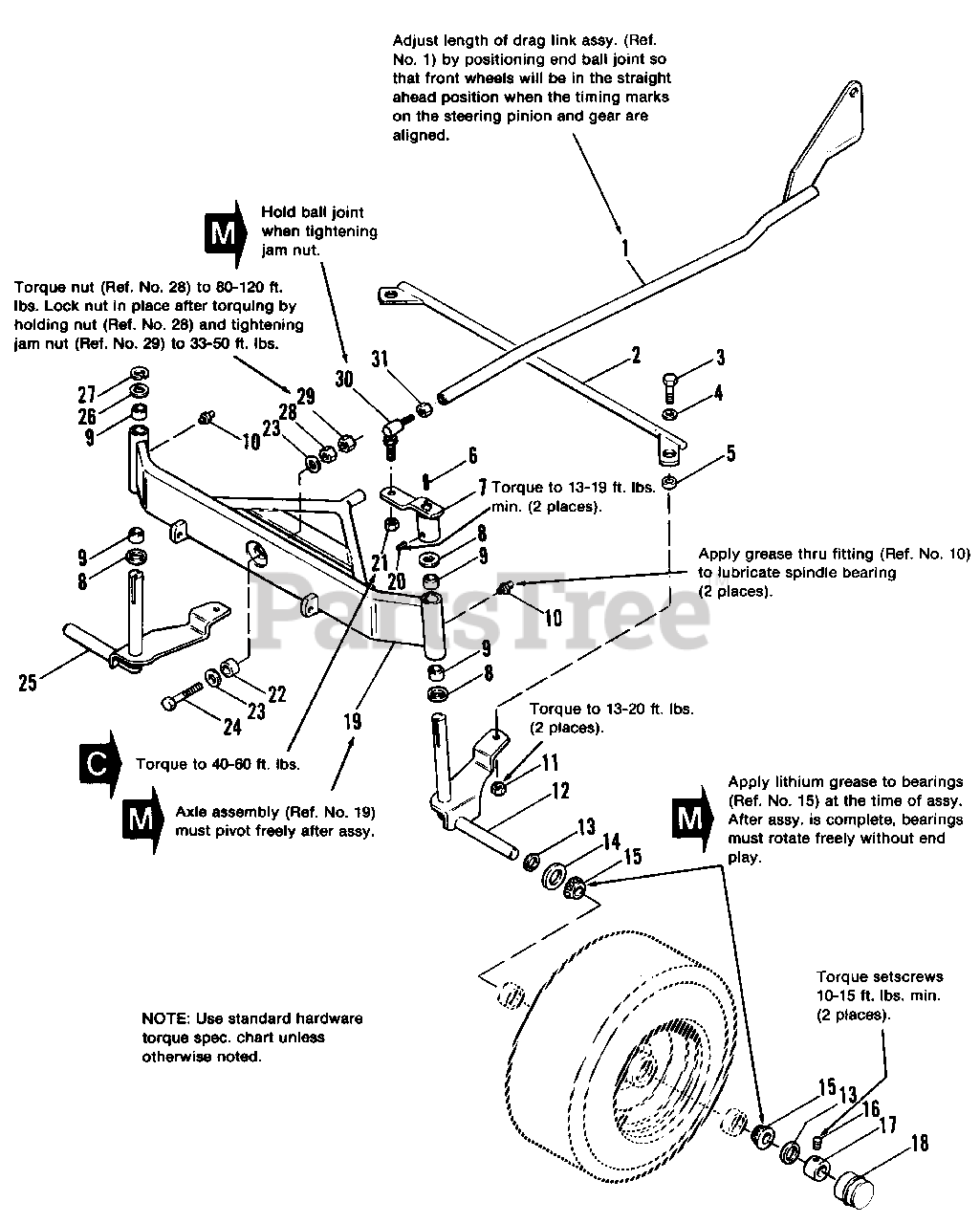

Front Axle Group Parts Diagram

  • Title

1

Simplicity 1666648SM

LINK ASSY., Drag

$

$

Not available

2

Simplicity 2157499SM

ROD ASSY., Tie
(Superseded to 2157499ASM)

$122.99

$

Usually ships in 2-12 days

0

3

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

4

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

6

Simplicity 2157427SM

KEY, Square

$5.49

$

In Stock, only 1 left!

0

7

Simplicity 2170998SM

ARM ASSY., Steering

$

$

Not available

8

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

10

Simplicity 2821133SM

FlTTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 2171774ASM

SPINDLE ASSY., L.H.

$353.99

$

Usually ships in 2-12 days

0

13

Simplicity 2171375SM

SPACER

$15.99

$

In Stock, Qty 12

0

14

Simplicity 2170168SM

SEAL

$38.99

$

Usually ships in 2-12 days

0

15

Simplicity 2154486SM

CONE, Bearing

$36.99

$

In Stock, Qty 6

0

16

Simplicity 1960619SM

SETSCREW, 5/16-18 x 5/16

$3.49

$

In Stock, Qty 8

0

17

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$

$

Not available

18

Simplicity 2154487SM

CAP, Hub
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

19

Simplicity 1650553SM

AXLE ASSY., Front (Incl. Ref. No. 9)

$463.99

$

Usually ships in 2-12 days

0

20

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

21

Simplicity 1930245SM

LOCKNUT, Hex, 1/2-20

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 2157618SM

SPACER

$23.99

$

Usually ships in 2-12 days

0

23

Simplicity 1918431SM

WASHER, Plain, 1/2
(Superseded to 704011)

$4.49

$

In Stock, Qty 11

0

24

Simplicity 1927469SM

CAPSCREW, Hex Hd., 1/2-13 x 2-1/4

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 2157494SM

SPINDLE, ASSY., R.H.
(Superseded to 2157494ASM)

$148.99

$

Usually ships in 2-12 days

0

26

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0

27

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 16

0

28

Simplicity 1930648SM

LOCKNUT, Hex, 1/2-13

$2.49

$

Usually ships in 2-12 days

0

29

Simplicity 1913744SM

LOCKNUT, Hex, Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

30

Simplicity 2164272SM

BALLJOINT

$71.99

$

In Stock, Qty 8

0

31

Simplicity 1919262SM

LOCKNUT, Hex, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0
