1692418 - Simplicity Broadmoor Lawn Tractor, 15hp Gear Transmission - Group 1 Parts Diagram

Broadmoor Lawn Tractor, 15hp

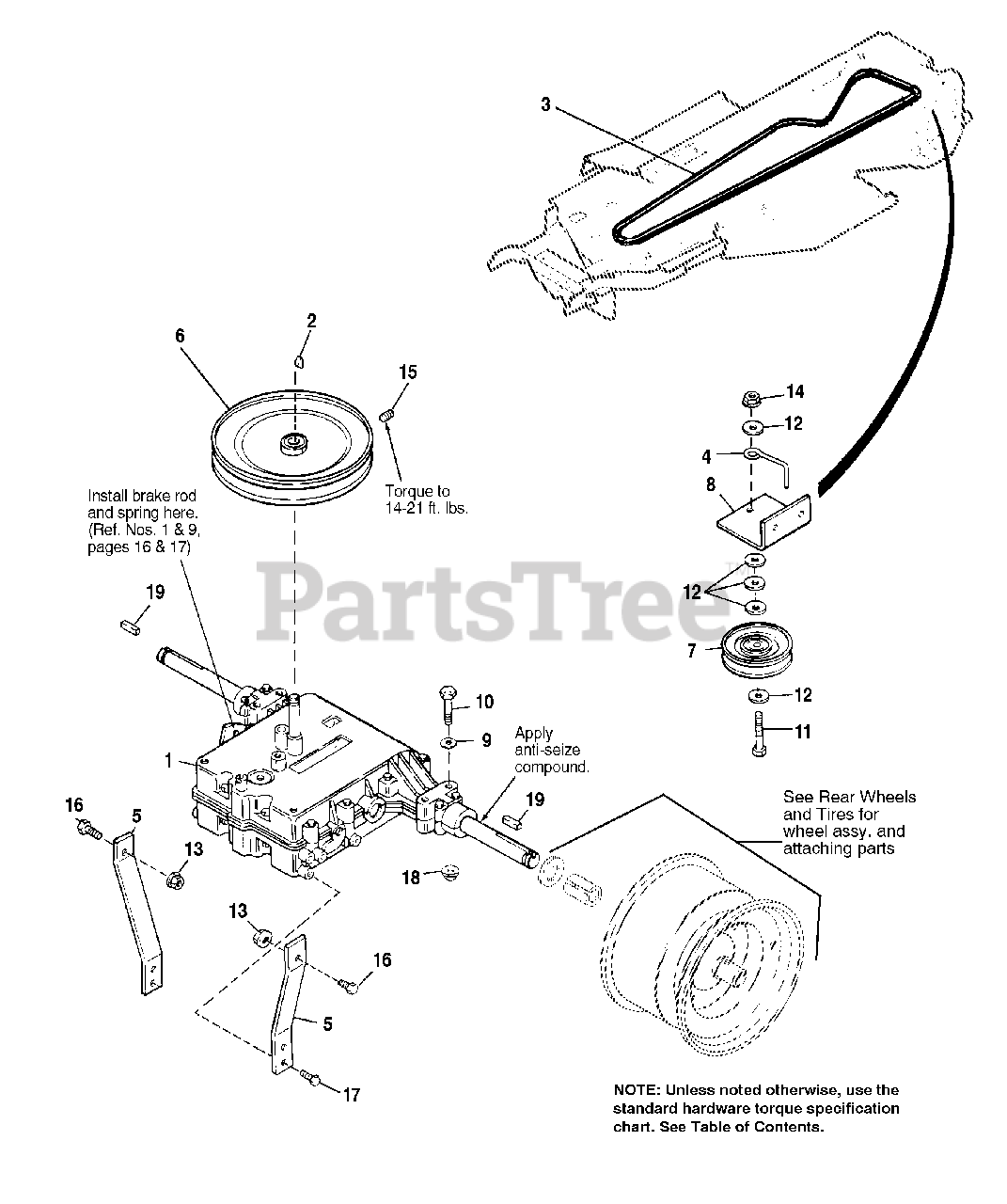

Gear Transmission - Group 1 Parts Diagram

  • Title

1

TRANSMISSION, 5-Speed, Peerless

$

$

Not available

2

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1657044SM

"V" BELT

$51.99

$

In Stock, only 1 left!

0

4

Simplicity 1678924

BELT STOP

$

$

Not available

5

Simplicity 1705462

SUPPORT, Transmission

$

$

Not available

6

Simplicity 1705482SM

PULLEY ASSY., Driven

$62.99

$

Usually ships in 2-12 days

0

7

Simplicity 2174561SM

PULLEY, "V"

$53.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709864

BRACKET, Pulley

$

$

Not available

9

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 8

0

10

Simplicity 1921719SM

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

11

Simplicity 1921971SM

CAPSCREW, Hex, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

12

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1927557SM

NUT, Hex, Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1928352SM

NUT, Flange, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

15

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

Note: Torque to 14-21 ft. lbs.

$4.99

$

In Stock, Qty 5

0

16

Simplicity 1930591SM

SCREW, Whiz, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

17

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

18

Simplicity 1935048SM

NUT, Flange, Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

19

Simplicity 1729279SM

KEY, 3/16 Sq. x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0
