1692418 - Simplicity Broadmoor Lawn Tractor, 15hp Gear Models - Hand Controls Parts Diagram

Broadmoor Lawn Tractor, 15hp

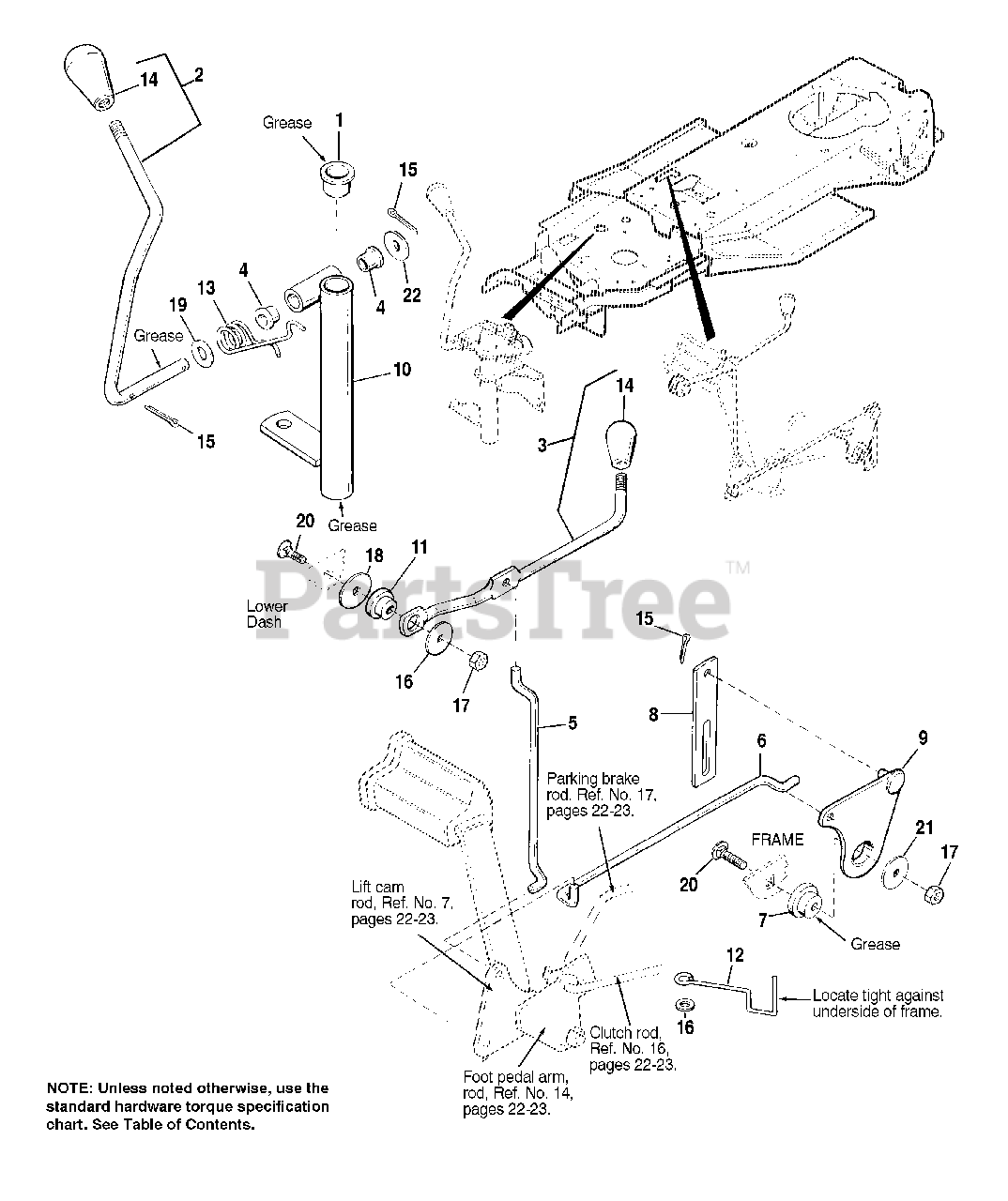

Gear Models - Hand Controls Parts Diagram

  • Title

1

Simplicity 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1685700SM

LEVER, Shift

Note: (Incl. Ref. No. 14)

$

$

Not available

3

Simplicity 1686730SM

ROD, Lift Handle

Note: (Incl. Ref. No. 14)

$

$

Not available

4

Simplicity 1704428SM

BUSHING, Plastic

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 1704623SM

LINK, Lift, Upper

$

$

Not available

6

Simplicity 1704624SM

LINK, Lift

$19.99

$

Usually ships in 2-12 days

0

7

Simplicity 1704629SM

SPACER
(Superseded to 1732540SM)

Note: Special

$10.99

$

In Stock, only 1 left!

0

8

Simplicity 1704756A

LINK, Lift, Upper Transport
(Superseded to 1704756ASM)

$19.99

$

In Stock, only 3 left!

0

9

Simplicity 1704825SM

CAM , Lift Assy.

$80.99

$

Usually ships in 2-12 days

0

10

Simplicity 1705487

SHIFT LEVER ASSY.

$

$

Not available

11

Simplicity 1705590SM

SPACER

Note: Special

$16.99

$

In Stock, only 1 left!

0

12

Simplicity 1705638

BELT STOP

$

$

Not available

13

Simplicity 1709236SM

SPRING, Torsion

$

$

Not available

14

Simplicity 1713843SM

KNOB, Plastic

$12.99

$

Usually ships in 2-12 days

0

15

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1919438SM

NUT, Hex, ESNA, Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1924356SM

WASHER, Plain, 13/32 x 1-1/5 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

19

Simplicity 1924361SM

WASHER, Plain, 17/32
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

21

Simplicity 1960044SM

WASHER, Plain, 21/64 x 1-1/4 x 5/64

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 1960206SM

WASHER, Plain, 33/64

$3.99

$

Usually ships in 2-12 days

0
