1692402 - Simplicity Regent 36" Lawn Tractor, 12.5hp Brake & Clutch - Hydro Models Parts Diagram

Regent 36" Lawn Tractor, 12.5hp

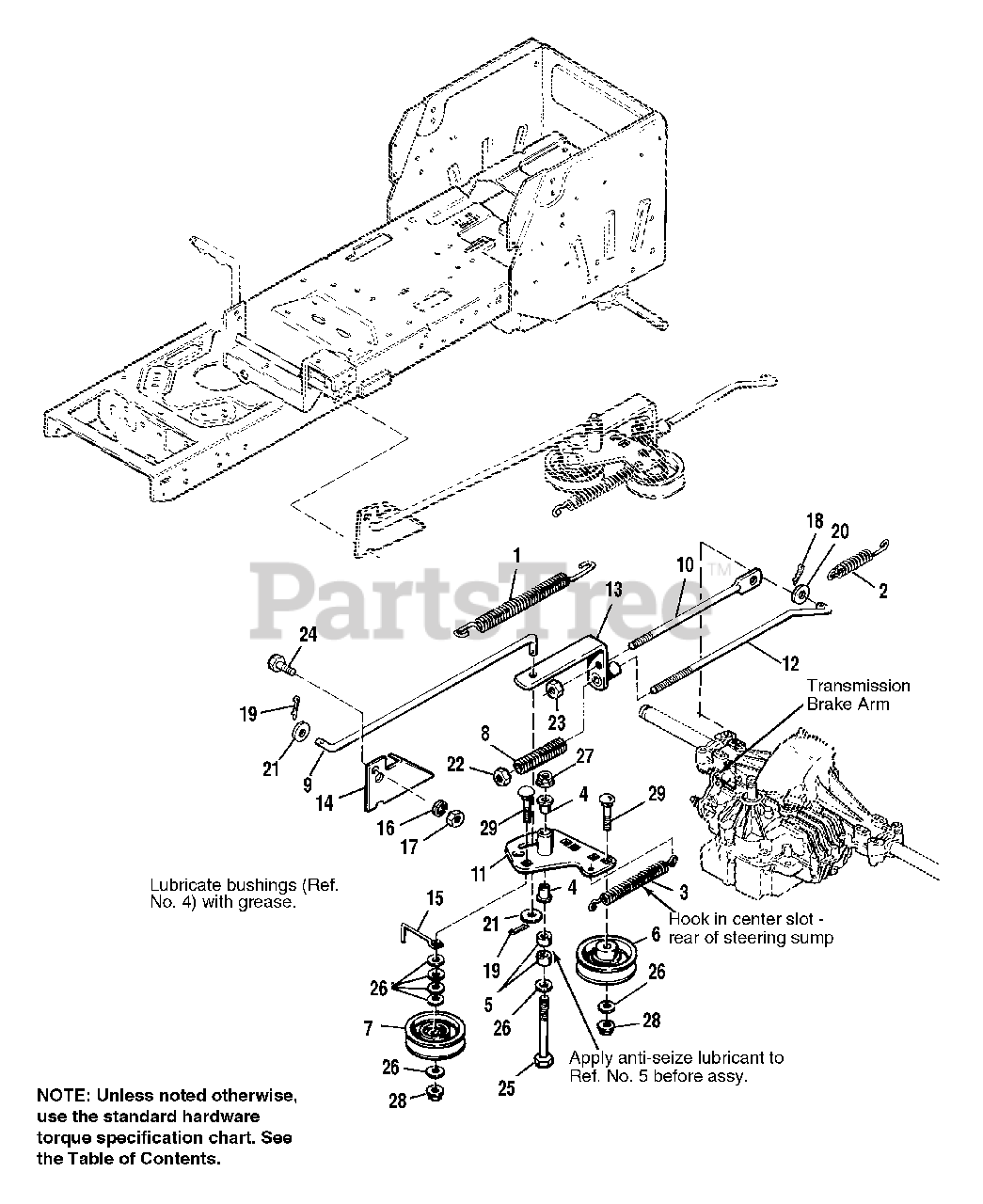

Brake & Clutch - Hydro Models Parts Diagram

  • Title

1

Simplicity 2156302

SPRING, External
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

2

Simplicity 2159106SM

SPRING, External
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

3

Simplicity 1666759SM

SPRING

$

$

Not available

4

Simplicity 1663114SM

BUSHING, Plastic

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 20+

0

6

Simplicity 1721133SM

PULLEY, Idler

$29.99

$

In Stock, Qty 20+

0

7

Simplicity 2174561SM

PULLEY, "V"

$53.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709097SM

SPRING

$92.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709780SM

ROD, Clutch

$

$

Not available

10

Simplicity 1709783

ROD, Return

$

$

Not available

11

Simplicity 1709789

IDLER ARM ASSY.

$

$

Not available

12

Simplicity 1709791SM

ROD, Brake

$46.99

$

Usually ships in 2-12 days

0

13

Simplicity 1709793

BRAKE ARM ASSY.

$

$

Not available

14

Simplicity 1709810SM

ACTUATOR, Switch

$

$

Not available

15

Simplicity 1709863SM

BELT STOP

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 1917356SM

LOCKWASHER, Spring, 3/8
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372SM

NUT, Hex, 3/8-16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1919326SM

WASHER, Plain, 11/32 x 3/4 x 1/16

$4.49

$

In Stock, Qty 6

0

21

Simplicity 1919326SM

WASHER, Plain, 11/32 x 3/4 x 1/16

$4.49

$

In Stock, Qty 6

0

22

Simplicity 1919438SM

NUT, Hex, Esna, Lock, 3/8-16
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1919439SM

NUT, Hex, Esna, Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

25

Simplicity 1923903SM

CAPSCREW, Hex Hd., 3/8-16 x 3

$4.49

$

In Stock, only 1 left!

0

26

Simplicity 1924940SM

WASHER, 13/32 X 7/8 X 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1928352SM

NUT, Flange, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

28

Simplicity 1928352SM

NUT, Flange, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

29

Simplicity 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0
