1692401 - Simplicity Regent Lawn Tractor, 12.5hp Gear Transaxle Parts Diagram

Regent Lawn Tractor, 12.5hp

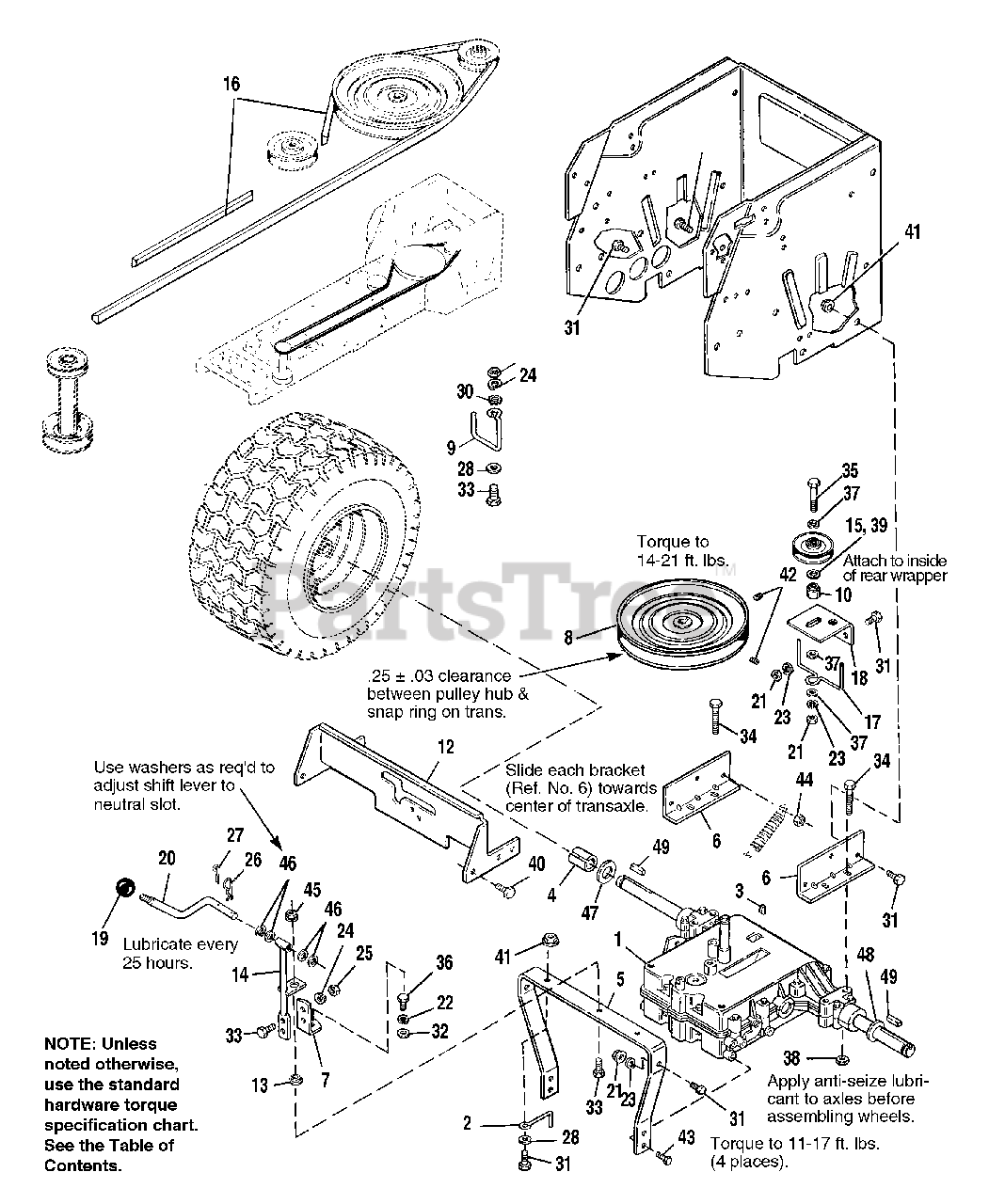

Gear Transaxle Parts Diagram

  • Title

1

TRANSAXLE, 5 Speed, Peerless Model 930-039

$

$

Not available

2

Simplicity 2158499SM

BELT STOP

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 2805123SM

KEY, Woodruff, #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1663180SM

SPACER

$60.99

$

In Stock, only 1 left!

0

5

Simplicity 1666631

SUPPORT, Transmission, Front

$

$

Not available

6

Simplicity 1666632

SUPPORT, Transmission, Rear

$

$

Not available

7

Simplicity 1666638SM

LINK, Shift, Lower

$14.99

$

Usually ships in 2-12 days

0

8

Simplicity 1666693SM

PULLEY ASSY., Transmission

Note: Torque to 14-21 ft.lbs.

$136.99

$

Usually ships in 2-12 days

0

9

Simplicity 1666709SM

STOP, Belt

$94.99

$

Usually ships in 2-12 days

0

10

Simplicity 1676375

SPACER

$

$

Not available

12

Simplicity 1701555

QUADRANT, Shift

$

$

Not available

13

Simplicity 1705590SM

SPACER

Note: Special

$16.99

$

Usually ships in 2-12 days

0

14

Simplicity 1708022

SHIFT LINK ASSY., Upper

$

$

Not available

15

Simplicity 2174561SM

PULLEY, Idler, "V"

$53.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708114SM

V-BELT

$54.99

$

Usually ships in 2-12 days

0

17

Simplicity 1708221SM

BELT STOP

$39.99

$

Usually ships in 2-12 days

0

18

Simplicity 1709864

BRACKET, Pulley

$

$

Not available

19

Simplicity 1713843SM

KNOB, Ball, Shift

$12.99

$

Usually ships in 2-12 days

0

20

Simplicity 1713850SM

ROD, Shift

$

$

Not available

21

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

23

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 9

0

?29

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 1920427SM

LOCKWASHER, Ext.

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1921210SM

CAPSCREW, Hex 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

32

Simplicity 1921319SM

WASHER, Plain
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

34

Simplicity 1921719SM

CAPSCREW, Hex, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

35

Simplicity 1921973SM

CAPSCREW, 3/8-16 x 2-3/4

$5.49

$

Usually ships in 2-12 days

0

36

Simplicity 1922234SM

CAPSCREW, Hex, 1/4-28 x 5/8

$2.49

$

Usually ships in 2-12 days

0

37

Simplicity 1922755SM

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

38

Simplicity 1923362SM

LOCKNUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

39

Simplicity 1924940SM

WASHER, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 3/8
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

41

Simplicity 1928352SM

LOCKNUT, Hex, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

42

Simplicity 1930540SM

SETSCREW, 5/16-18 x 5/8

$4.49

$

In Stock, Qty 11

0

43

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

44

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

45

Simplicity 1935048SM

NUT, Hex, Flange Hd., 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

46

Simplicity 1960027SM

WASHER, Rev. Pinion
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

47

Simplicity 1960160SM

WASHER

Note: As Required

$4.99

$

In Stock, Qty 11

0

48

Simplicity 2860202SM

WASHER, 1/4

$4.49

$

In Stock, Qty 20+

0

49

Simplicity 1729279SM

KEY, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0
