1692384 - Simplicity Coronet 34" Rear-Engine Riding Mower, 13hp Electrical Parts Diagram

Coronet 34" Rear-Engine Riding Mower, 13hp

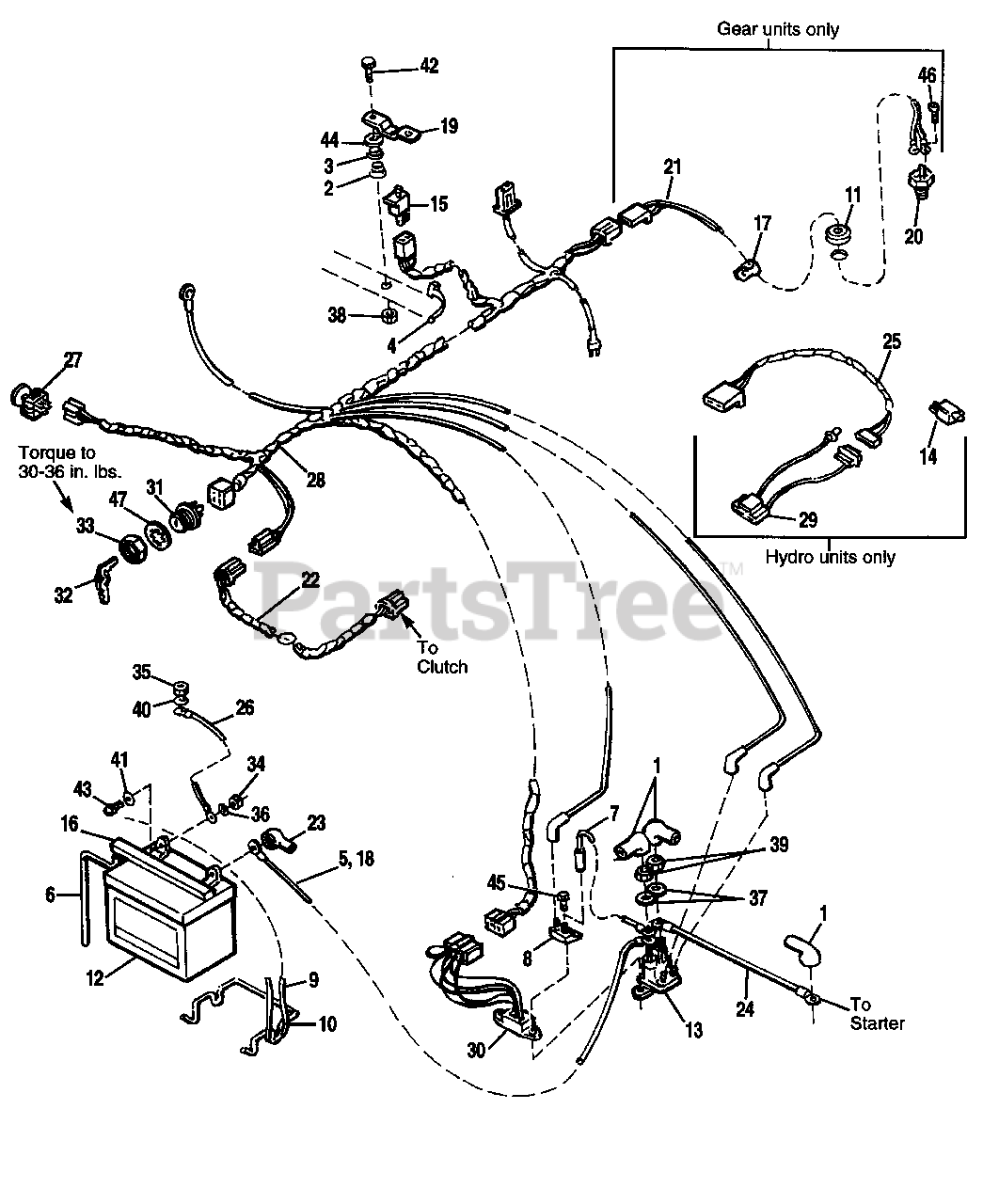

Electrical Parts Diagram

  • Title

1

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

2

Simplicity 2153010SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

3

Simplicity 2161176SM

SPRING

$3.99

$

In Stock, only 1 left!

0

4

Simplicity 2834683SM

CLIP
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1603618SM

CABLE, Battery to Solenoid

Note: Not used on Mfg. Nos. 1692385, 1692399, 1692491.

$11.99

$

In Stock, only 3 left!

0

6

Simplicity 1612103SM

TUBE, Vent

$5.49

$

Usually ships in 2-12 days

0

7

Simplicity 1665237SM

WIRE ASSY.

$11.99

$

In Stock, Qty 7

0

8

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

9

Simplicity 1665872SM

STRAP, Battery

$11.99

$

In Stock, Qty 7

0

10

Simplicity 1667805SM

BRACE, Battery

$

$

Not available

11

Simplicity 1676648SM

GROMMET

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1685215SM

BATTERY

$

$

Not available

13

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

14

Simplicity 1701580SM

SWITCH, Neutral Start (Hydro model)

$21.99

$

Usually ships in 2-12 days

0

15

Simplicity 1732004SM

SWITCH, Seat

$8.99

$

In Stock, Qty 20+

0

16

Simplicity 1704581

BATTERY CAP

$

$

Not available

17

Simplicity 1704873SM

CLAMP, Wire

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1707056SM

CABLE, Battery to Solenoid

Note: Used only on Mfg. Nos. 1692385, 1692399, 1692491.

$10.99

$

Usually ships in 2-12 days

0

19

Simplicity 1708552SM

PLATE, Seat Actuator

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1708558SM

NEUTRAL SWITCH (Gear model)

$21.99

$

Usually ships in 2-12 days

0

21

Simplicity 1708644SM

WIRE ASSY., Neutral Switch (Gear model)

$

$

Not available

22

Simplicity 1708882SM

WIRE ASSY., PTO Clutch

$8.99

$

Usually ships in 2-12 days

0

23

Simplicity 1709086SM

BOOT, Insulator
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

24

Simplicity 1709088SM

CABLE, Solenoid to Starter

$11.99

$

Usually ships in 2-12 days

0

25

Simplicity 1709250SM

WIRE ASSY., Neutral Switch (Hydro model)

$

$

Not available

26

Simplicity 1713163SM

CABLE, Battery, Ground

Note: Not used on Mfg. Nos. 1692385, 1692399, 1692491.

$24.99

$

Usually ships in 2-12 days

0

27

Simplicity 1716332SM

SWITCH, PTO, Electric Clutch
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

28

Simplicity 1713499SM

WIRING HARNESS

$

$

Not available

29

Simplicity 1713637SM

ADAPTER PLUG, Engine

Note: Used only on Mfg. Nos. 1692385, 1692399, 1692491.

$6.99

$

Usually ships in 2-12 days

0

30

Simplicity 1713642SM

MODULE, Interlock

$109.99

$

Usually ships in 2-12 days

0

31

Simplicity 1686734SM

SWITCH, Ignition

$32.99

$

In Stock, Qty 20+

0

32

Simplicity 1714054SM

KEY, Ignition

$7.49

$

In Stock, Qty 20+

0

33

Simplicity 1714055SM

ADAPTER, Nut

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

37

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1919438SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 1920427SM

LOCKWASHER, External Tooth, 3/8

$3.99

$

Usually ships in 2-12 days

0

41

Simplicity 1921319SM

WASHER, Plain
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

42

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

44

Simplicity 1924940SM

WASHER, Flat, 13/32 x 7/8 x 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

45

Simplicity 1925003SM

SCREW, Hex, Flange, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

46

Simplicity 1929477SM

SCREW, Taptite, #10-20 x 5/8 (Gear model)

$4.49

$

Usually ships in 2-12 days

0

47

Simplicity 1960547SM

WASHER, Internal Tooth, 5/8

$4.49

$

In Stock, only 4 left!

0

47

Simplicity 1701011SM

CABLE TIE

Note: Not Shown

$5.49

$

In Stock, only 2 left!

0

47

Simplicity 2832747SM

CABLE TIE

Note: Not Shown

$3.99

$

Usually ships in 2-12 days

0
