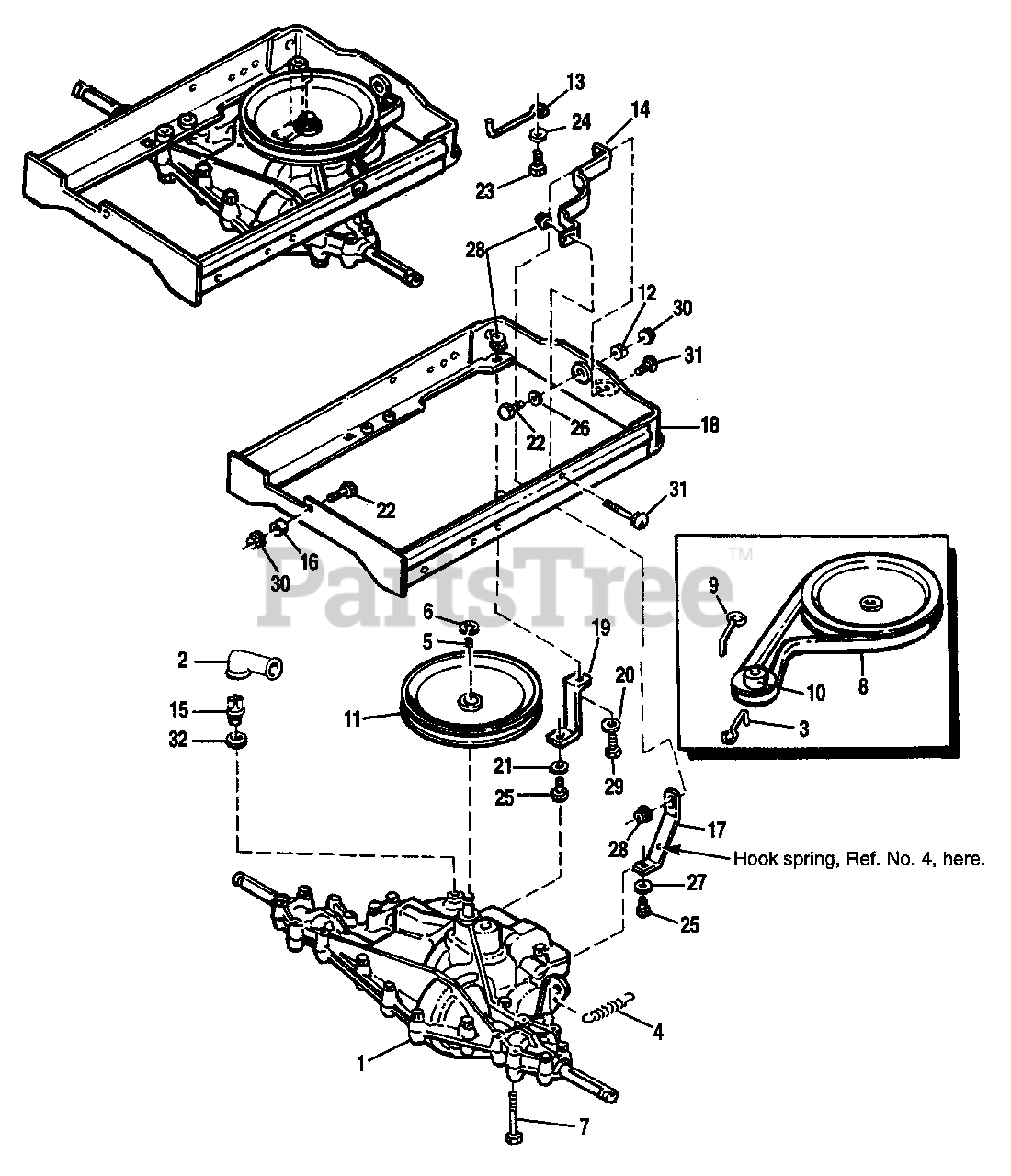

1692382 - Simplicity Coronet Rear-Engine Riding Mower, 12.5hp Peerless Transaxle Model 915-016B-Transmission & Carrier Parts Diagram

Coronet Rear-Engine Riding Mower, 12.5hp

Peerless Transaxle Model 915-016B-Transmission & Carrier Parts Diagram

  • Title

1

TRANSMISSION, 5-Speed (Gear)

$

$

Not available

2

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

3

Simplicity 2158499SM

BELT STOP

$5.49

$

Usually ships in 2-12 days

0

4

Simplicity 2159106SM

SPRING, Return
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

5

Simplicity 2805123SM

KEY, Woodruff, #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

6

Simplicity 2827103SM

RING, Retaining

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 2860478SM

SCREW, Hex Hd., 5/16-18 x 2-1/4

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1676460SM

V-BELT

$29.99

$

In Stock, only 2 left!

0

9

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 2 left!

0

10

Simplicity 1706450SM

PULLEY ASSY., Drive, Engine

$58.99

$

In Stock, only 1 left!

0

11

Simplicity 1706454SM

PULLEY ASSY., Driven, Transmission

$53.99

$

Usually ships in 2-12 days

0

12

Simplicity 1719725SM

BUSHING, Rear

$9.99

$

Usually ships in 2-12 days

0

13

Simplicity 1707589SM

BELT STOP
(Superseded to 2158499SM)

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 1686710SM

GUIDE, Belt, Transmission

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 1708558SM

SWITCH, Ball

$21.99

$

Usually ships in 2-12 days

0

16

Simplicity 1719683SM

BUSHING, Front

$12.99

$

Usually ships in 2-12 days

0

17

Simplicity 1709216SM

STRAP, Torque
(Superseded to 1709216ASM)

$8.49

$

Usually ships in 2-12 days

0

18

Simplicity 1687051SM

CARRIER ASSY.

$168.99

$

Usually ships in 2-12 days

0

19

Simplicity 1713742SM

STRAP, Torque

$6.49

$

Usually ships in 2-12 days

0

20

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1919384SM

WASHER, Plain, 7/16 x 1-1/4 x 1/8

$5.49

$

In Stock, only 1 left!

0

22

Simplicity 1921176SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

23

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

24

Simplicity 1922755SM

WASHER, Plain, 13/32 x 1 x 1/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

25

Simplicity 1923683SM

SCREW, Hex Hd., Taptite, 3/8-18 x 5/8
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

26

Simplicity 1924361SM

WASHER
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1924940SM

WASHER, Plain, 13/32 x 7/8 x 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1927557SM

NUT, Hex, Flange, Whizlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1930591SM

SCREW, Hex, Flange, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

30

Simplicity 1930644SM

NUT, Hex, Flange Lock, 1/2 x 13

$3.49

$

In Stock, Qty 6

0

31

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1960020SM

WASHER, Plain, 21/32 x 1-1/4 x 1/16

$4.49

$

In Stock, Qty 20+

0
