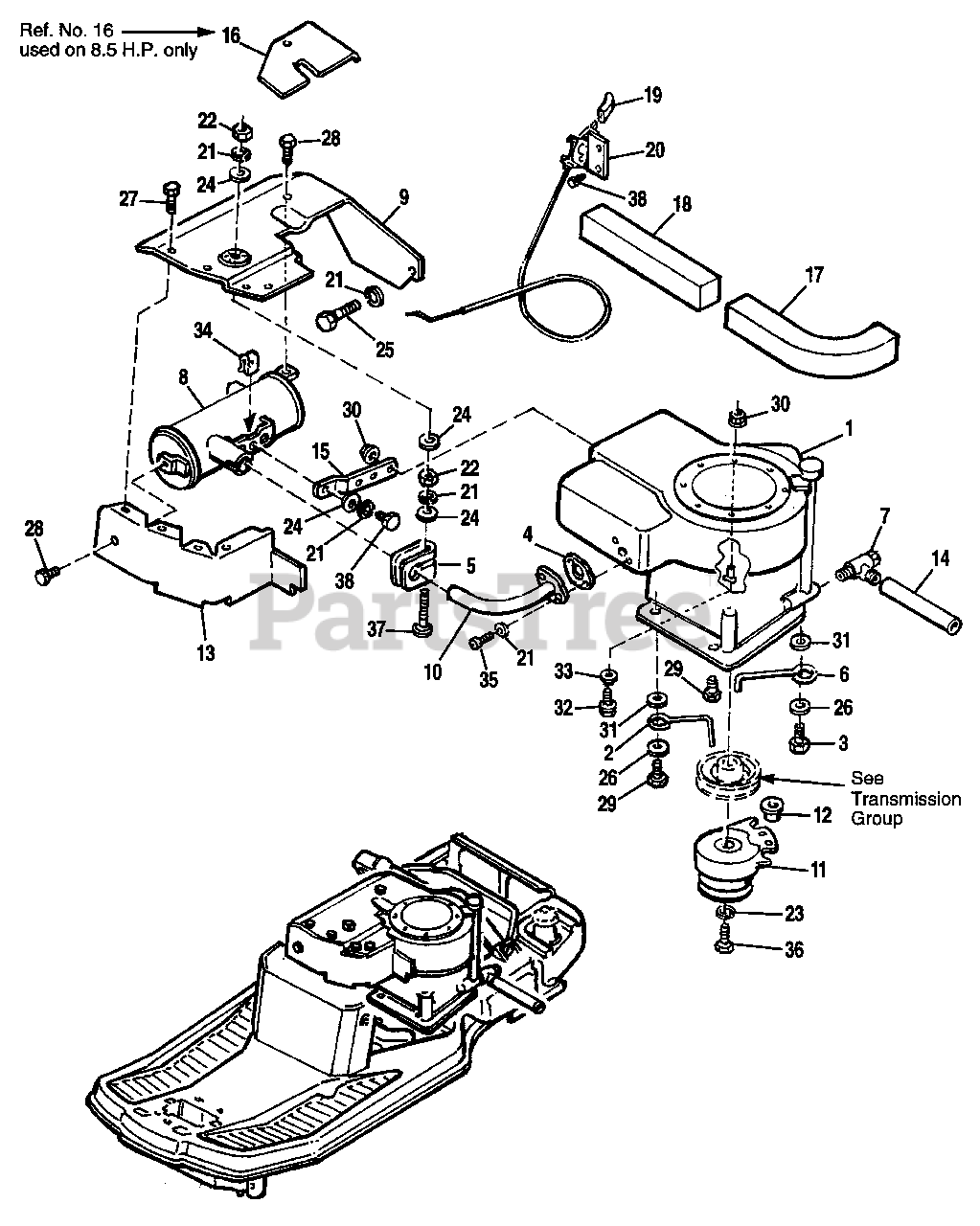

1692382 - Simplicity Coronet Rear-Engine Riding Mower, 12.5hp Engine Group - Electric Clutch (PTO)-8.5, 10 & 12HP Briggs & Stratton Parts Diagram

Coronet Rear-Engine Riding Mower, 12.5hp

Engine Group - Electric Clutch (PTO)-8.5, 10 & 12HP Briggs & Stratton Parts Diagram

  • Title

1

ENGINE, 8.5,10 & 12 HP (Briggs & Stratton)

$

$

Not available

2

Simplicity 2158499SM

BELT STOP

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 2860361SM

SCREW, Hex, Washer Hd., Taptite, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

4

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

Usually ships in 2-12 days

0

5

Simplicity 1676183SM

CLAMP, Muffler

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 2 left!

0

7

Simplicity 1708405SM

DRAIN VALVE, Oil

$38.99

$

Usually ships in 2-12 days

0

8

Simplicity 1708416SM

MUFFLER ASSY.

$198.99

$

Usually ships in 2-12 days

0

9

Simplicity 1708420SM

DUCT, Top, RH

$49.99

$

Usually ships in 2-12 days

0

10

Simplicity 1708421SM

PIPE, Exhaust

$85.99

$

Usually ships in 2-12 days

0

11

Simplicity 1686882SM

ELECTRIC CLUTCH

$365.99

$

Usually ships in 2-12 days

0

12

Simplicity 1708537SM

SLEEVE, Clutch Anchor

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 1708581SM

DUCT, Top, LH
(Superseded to 1708581ASM)

$16.99

$

Usually ships in 2-12 days

0

14

Simplicity 1708645SM

HOSE, Oil Drain

$9.99

$

Usually ships in 2-12 days

0

15

Simplicity 1708715ASM

SUPPORT, Muffler

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708716

DUCT, Top, Muffler, 8.5 HP

$

$

Not available

17

Simplicity 1709055SM

SEAL, Air Inlet

$

$

Not available

18

Simplicity 1709056SM

SEAL, Air Inlet

$

$

Not available

19

Simplicity 1713846SM

KNOB, Throttle Control

$15.99

$

In Stock, only 1 left!

0

20

Simplicity 1714040SM

THROTTLE CONTROL ASSY.

$73.99

$

Usually ships in 2-12 days

0

21

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 8

0

25

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

26

Simplicity 1922755SM

WASHER, Plain, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

27

Simplicity 1923735SM

SCREW, Hex Hd., 10-16 x 3/8

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1924856SM

SCREW, Hex, Flange, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

29

Simplicity 1930598SM

SCREW, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 1931277SM

NUT, Hex, Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Simplicity 1933263SM

WASHER, Plain
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

32

Simplicity 1933689SM

SCREW, Hex, Flange, Whizlock, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

33

Simplicity 1933988SM

PUSH NUT
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 3 left!

0

35

Simplicity 1936228SM

CAPSCREW, Socket Hd., 5/16-18 x 3/4

$4.49

$

In Stock, only 1 left!

0

36

Simplicity 1960370SM

CAPSCREW, Hex Hd., 7/16-20 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

37

Simplicity 1960748SM

CARRIAGE BOLT, 5/16-3 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

38

Simplicity 1960536SM

SCREW, Hex, Taptite 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0
