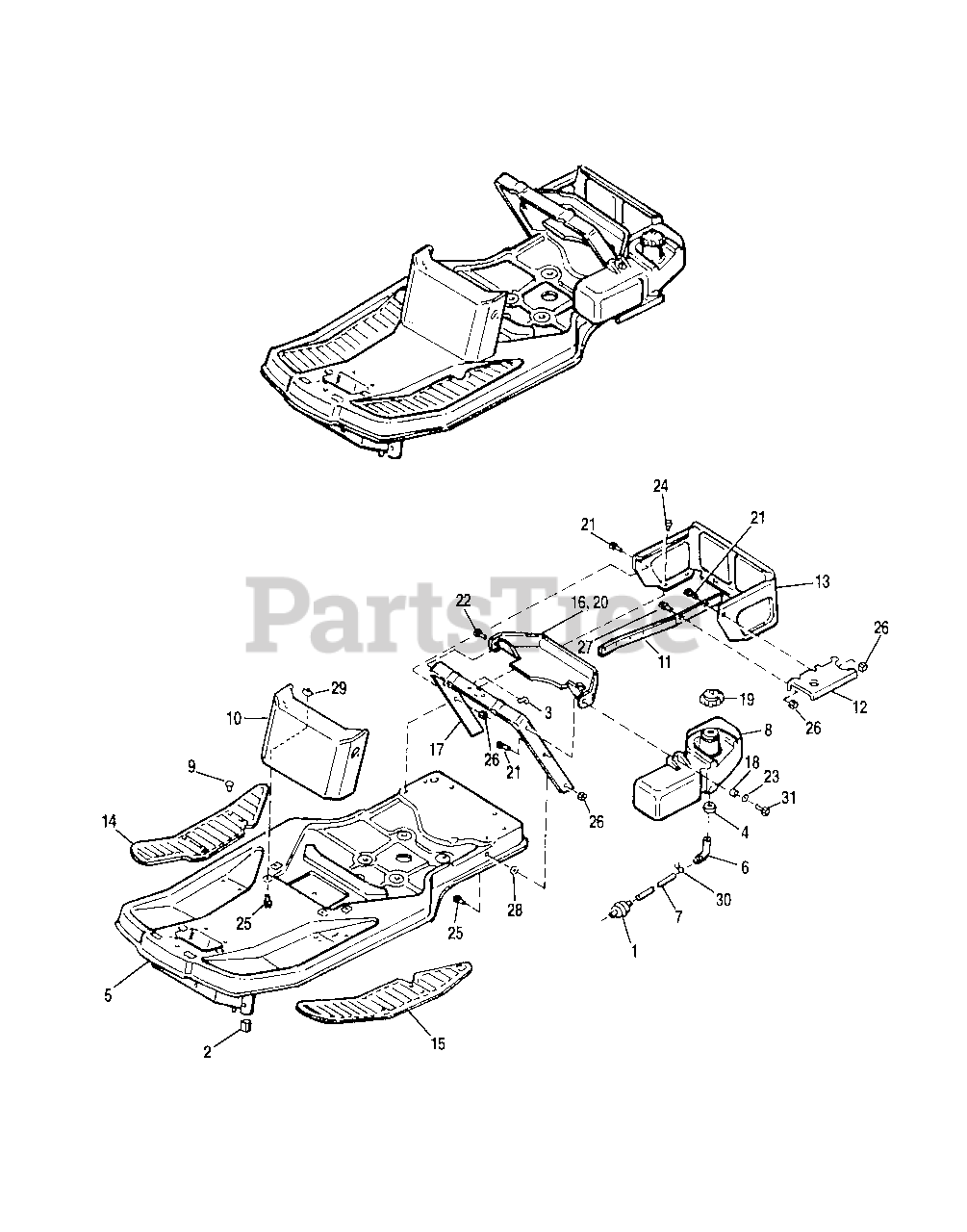

1692380 - Simplicity Coronet Rear-Engine Riding Mower, 8.5hp Frame & Fuel System - All models except 13 HP Hydro Parts Diagram

Coronet Rear-Engine Riding Mower, 8.5hp

Frame & Fuel System - All models except 13 HP Hydro Parts Diagram

  • Title

1

Simplicity 2173206SM

FUEL FILTER
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 2834683SM

CLIP
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1654930SM

BUSHING, Rubber

$7.99

$

In Stock, Qty 20+

0

5

Simplicity 1660007SM

FRAME ASSY. (Incl. Ref. No. 2)

$427.99

$

Usually ships in 2-12 days

0

6

Simplicity 1674231SM

ELBOW

$

$

Not available

7

Simplicity 1718678SM

HOSE, Fuel Tank

$

$

Not available

8

Simplicity 1687036SM

FUEL TANK (Incl. Ref. Nos. 1, 4, 6 & 30)

$95.99

$

Usually ships in 2-12 days

0

9

Simplicity 1704351SM

FASTENER

$4.99

$

In Stock, only 4 left!

0

10

Simplicity 1727685

PANEL, Front
(Superseded to 1727685ASM)

$42.99

$

Usually ships in 2-12 days

0

11

Simplicity 1708362ASM

STRAP, Fuel Tank, Brace

$41.99

$

Usually ships in 2-12 days

0

12

Simplicity 1726558SM

SUPPORT, Fuel Tank
(Superseded to 1726558ASM)

$16.99

$

Usually ships in 2-12 days

0

13

Simplicity 1715962

SHROUD, Rear
(Superseded to 7301146AYP)

$68.99

$

Usually ships in 2-12 days

0

14

Simplicity 1708524SM

PAD, Foot Rest, RH

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 1708525SM

PAD, Foot Rest, LH

$14.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708725ASM

DUCT, Air Inlet (Gear model only)

$93.99

$

Usually ships in 2-12 days

0

17

Simplicity 1709269SM

"U" SUPPORT, Seat Deck

$29.99

$

Usually ships in 2-12 days

0

18

Simplicity 1710437SM

SPACER, 21/64 x 1/2 x 21/64

$18.99

$

Usually ships in 2-12 days

0

19

Simplicity 1714020SM

CAP, Fuel Tank, Vented

$31.99

$

In Stock, only 2 left!

0

20

Simplicity 1714447

DUCT, Air Inlet (Hydro model only)

$

$

Not available

21

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924856SM

SCREW, Hex Hd., Taptite, 5/16 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

23

Simplicity 1924940SM

WASHER, Plain, 13/32 x 7/8 x 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1925003SM

SCREW, Hex Hd., Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

25

Simplicity 1930591SM

CAPSCREW, Hex Hd., Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

26

Simplicity 1931277SM

NUT, Hex, Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

28

Simplicity 1933988SM

PAL NUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1935255SM

PAL NUT, 5/16-18

$3.49

$

In Stock, only 2 left!

0

30

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960373SM

SCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0
