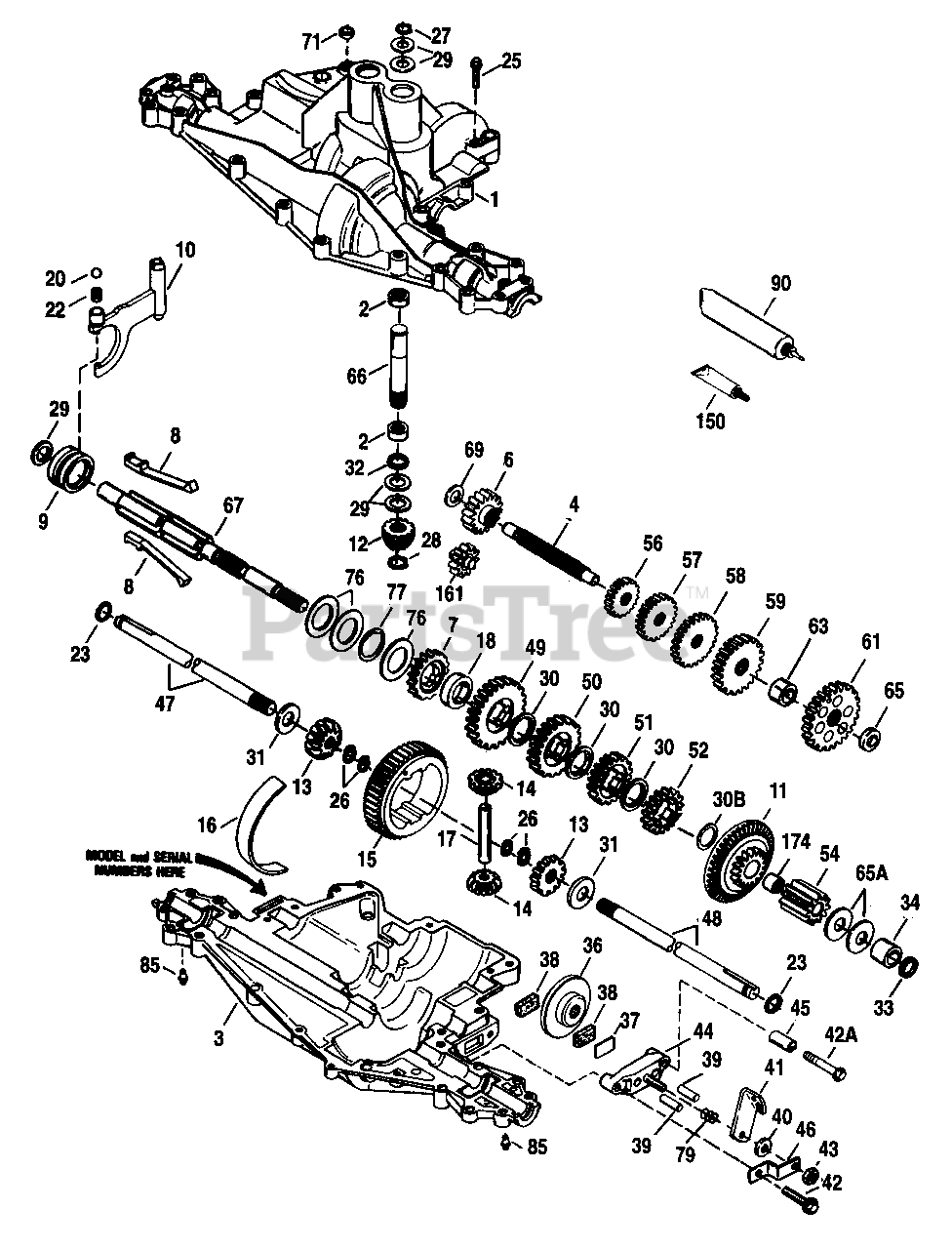

1692379 - Simplicity Coronet 30" Rear-Engine Riding Mower, 8.5hp Peerless Transaxle Model 915-016B-Service Parts Parts Diagram

Coronet 30" Rear-Engine Riding Mower, 8.5hp

Peerless Transaxle Model 915-016B-Service Parts Parts Diagram

  • Title

1

Simplicity 772117

COVER, Transaxle

$378.99

$

Usually ships in 2-12 days

0

2

Simplicity 780086

BEARING, Needle

$

$

Not available

3

Simplicity 770114

CASE, Transaxle

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 776300

COUNTERSHAFT, (4-7/8" Long)

$

$

Not available

6

Simplicity 778281

GEAR, Spur (16 Teeth)

$

$

Not available

7

Simplicity 778278

GEAR, Spur (22 Teeth)

$

$

Not available

8

Simplicity 792160

KEY

$

$

Not available

9

Simplicity 784373

COLLAR, Shifter

$

$

Not available

10

Simplicity 784365

ROD & FORK ASSY., Shift

$

$

Not available

11

Simplicity 778290A

GEAR, Bevel (44 & 16 Teeth)(Incl. Ref. No. 174)

$

$

Not available

12

Simplicity 778262

BEVEL PINION, Input

$

$

Not available

13

Simplicity 778221

GEAR, Bevel

$

$

Not available

14

Simplicity 778068

GEAR, Bevel Pinion

$

$

Not available

15

Simplicity 778260

RING GEAR

$

$

Not available

16

Simplicity 786150

STRIP, Bearing

$

$

Not available

17

Simplicity 786139

PIN, Drive

$

$

Not available

18

Simplicity 786157

SPACER, Neutral (1-3/8" O.D. x 1-1/8" I.D. x 15/32" Thick)

$

$

Not available

20

Simplicity 792139

BALL, Steel

$189.99

$

Usually ships in 2-12 days

0

22

Simplicity 792142

SPRING

$

$

Not available

23

Simplicity 788061

SEAL RING

$

$

Not available

25

Simplicity 792073

SCREW, Hex Hd., Flange, Threadforming, 1/4-20 x 1-1/4

$61.99

$

In Stock, only 3 left!

0

26

Simplicity 792125

RING, Retaining, (Pkg. of 2)

$

$

Not available

27

Simplicity 792035

RING, Retaining

$

$

Not available

28

Simplicity 788040

RING, Retaining

$

$

Not available

29

Simplicity 780072

WASHER, Thrust

$

$

Not available

30

Simplicity 780108

WASHER, Thrust

$4.49

$

Usually ships in 2-12 days

0

30B

Simplicity 780178

WASHER, Thrust

$

$

Not available

31

Simplicity 780001

WASHER

$

$

Not available

32

Simplicity 792001

"O" RING

$

$

Not available

33

Simplicity 788076

SEAL, Square Cut

$

$

Not available

34

Simplicity 780159

BUSHING

$

$

Not available

36

Simplicity 790071

DISK, Brake

$

$

Not available

37

Simplicity 790007

PLATE, Brake Pad

$

$

Not available

38

Simplicity 799021

PAD, Brake (Pkg. of 2)

$

$

Not available

39

Simplicity 786026

PIN, Dowel

$

$

Not available

40

Simplicity 792076A

WASHER, Flat

$

$

Not available

41

Simplicity 790047

LEVER, Brake

$

$

Not available

42

Simplicity 792073

SCREW, Hex Hd., Flange, Threadforming, 1/4-20 x 1-1/4

$61.99

$

In Stock, only 3 left!

0

42A

Simplicity 792085

SCREW, Hex Hd., Flange, Threadforming, 1/4-20 x 2-1/4

$

$

Not available

43

Simplicity 792075

NUT, Lock, 5/16-24

$

$

Not available

44

Simplicity 790025

HOLDER, Brake Pad

$24.99

$

Usually ships in 2-12 days

0

45

Simplicity 786066

SPACER

$

$

Not available

46

Simplicity 786086

BRACKET, Brake Lever

$

$

Not available

47

Simplicity 774869

AXLE, (16-7/8" Long)

$

$

Not available

48

Simplicity 774688

AXLE, (11-5/8" Long)(Incl. Ref. No. 26, Qty. 2)

$

$

Not available

49

Simplicity 778125

GEAR, Spur (35 Teeth)

$

$

Not available

50

Simplicity 778250

GEAR, Spur (27 Teeth)

$

$

Not available

51

Simplicity 778122A

GEAR, Spur (22 Teeth)

$

$

Not available

52

Simplicity 778321

GEAR, Spur (19 Teeth)

$

$

Not available

54

Simplicity 778263

GEAR, Spur (11 Teeth)

$

$

Not available

56

Simplicity 778151

GEAR, Spur (15 Teeth)

$

$

Not available

57

Simplicity 778249

GEAR, Spur (23 Teeth)

$

$

Not available

58

Simplicity 778128A

GEAR, Spur (28 Teeth)

$

$

Not available

59

Simplicity 778129A

GEAR, Spur (30 Teeth)

$

$

Not available

61

Simplicity 778265

GEAR, Spur (34 Teeth)

$

$

Not available

63

Simplicity 786155A

SPACER

$

$

Not available

65

Simplicity 780162

WASHER, Thrust

$

$

Not available

65A

Simplicity 780160

WASHER, Thrust

$

$

Not available

66

Simplicity 776299

SHAFT, Input (3-5/16" Long)

$

$

Not available

67

Simplicity 776352

SHAFT, Brake (4 Keyed)

$

$

Not available

69

Simplicity 780161

WASHER, Thrust

$

$

Not available

71

Simplicity 788069

SEAL, Square Cut

$

$

Not available

76

Simplicity 780090

WASHER

$

$

Not available

77

Simplicity 788078A

RING, Retaining, Inverted

$

$

Not available

79

Simplicity 792144

SPRING, Brake

$132.99

$

Usually ships in 2-12 days

0

85

Simplicity 792137

FITTING, Lubrication

$

$

Not available

90

Simplicity 788067B

GREASE, 32 Oz. Bottle

$

$

Not available

150

Simplicity 510334

GASKET ELIMINATOR (Loctite #515)

$

$

Not available

161

Simplicity 776302

IDLER ASSY., Reverse

$

$

Not available

174

Simplicity 780085

BEARING, Needle

$1.99

$

Usually ships in 2-12 days

0
