1692375 - Simplicity Front Cut Rear-Engine Riding Mower, 16hp Steering Parts Diagram

Front Cut Rear-Engine Riding Mower, 16hp

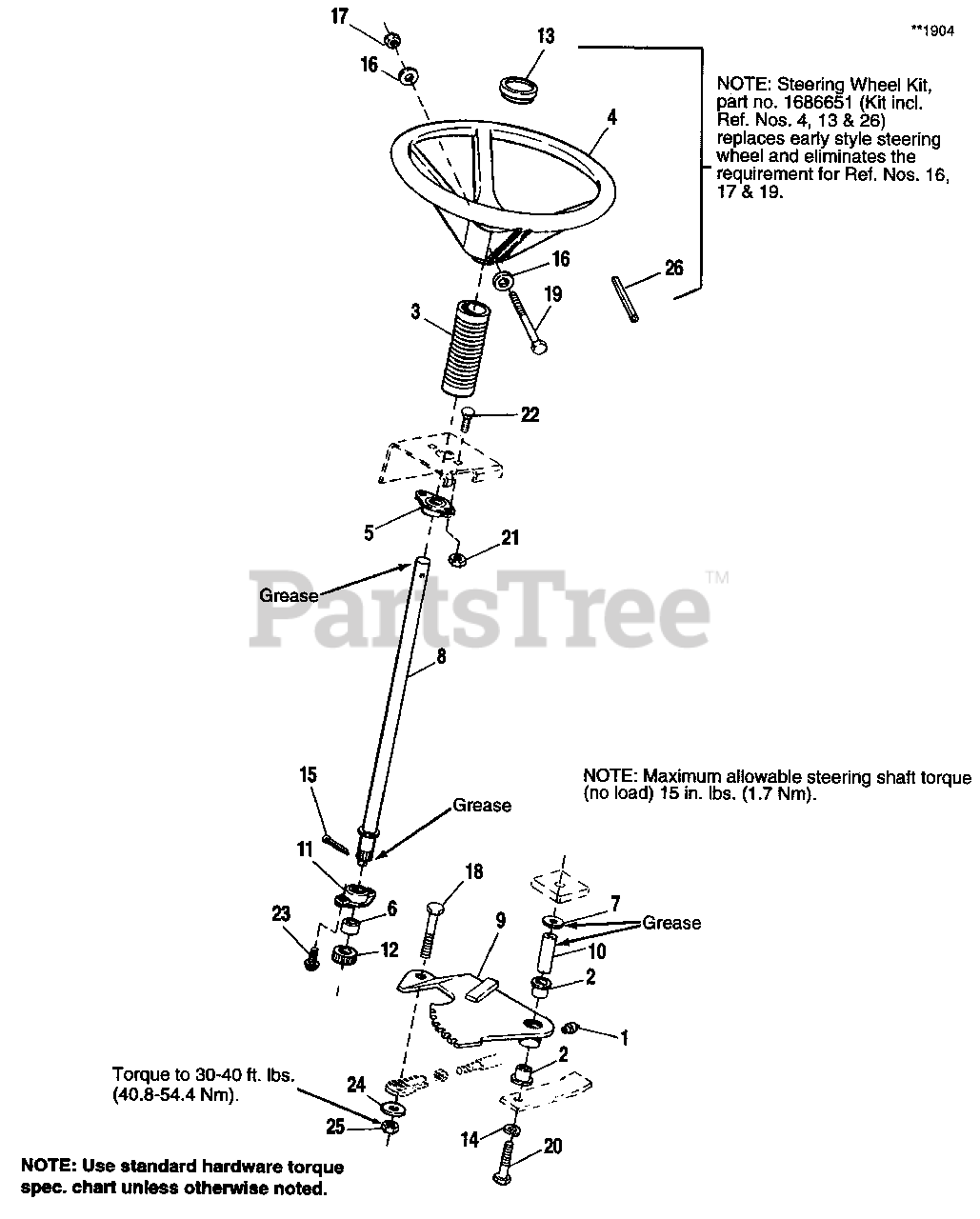

Steering Parts Diagram

  • Title

1

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1671737SM

BEARING

$4.99

$

In Stock, only 1 left!

0

3

Simplicity 1678381SM

TUBE, Steering Shaft

$10.99

$

Usually ships in 2-12 days

0

4

Simplicity 1686651SM

STEERING WHEEL KIT (Incl. Ref. Nos. 13 & 26)

Note: Steering Wheel Kit, part no. 1686651 (Kit incl. Ref. Nos. 4, 13 & 26) replaces early style steering wheel and eliminates the requirement for Ref. Nos. 16, 17 & 19.

$190.99

$

In Stock, only 1 left!

0

5

Simplicity 1702385SM

BEARING, Flange

$8.99

$

Usually ships in 2-12 days

0

6

Simplicity 1702784

SPACER, Steering Shaft

$

$

Not available

7

Simplicity 1702786

WASHER, Nylon

$

$

Not available

8

Simplicity 1702870SM

SHAFT ASSY., Steering

$199.99

$

Usually ships in 2-12 days

0

9

Simplicity 1703009SM

ARM ASSY.
(Superseded to 1703009ASM)

$276.99

$

Usually ships in 2-12 days

0

10

Simplicity 1703112SM

SPACER

$9.99

$

Usually ships in 2-12 days

0

11

Simplicity 1703226SM

BEARING, Flange

$32.99

$

Usually ships in 2-12 days

0

12

Simplicity 1703305SM

PINION, Steering Shaft

$50.99

$

Usually ships in 2-12 days

0

13

Simplicity 1714097SM

CAP, Steering Wheel

$10.99

$

Usually ships in 2-12 days

0

14

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 1918455SM

PIN, Cotter

$

$

Not available

16

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

17

Simplicity 1919438SM

NUT, Hex, ESNA Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1920328SM

CAPSCREW, Hex,1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1925690SM

CAPSCREW, Hex, 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 1927469SM

CAPSCREW, Hex, 1/2-13 x 2-1/4

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1931277SM

NUT, Hex, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

23

Simplicity 1933260SM

SCREW, Whizlock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

24

Simplicity 1960170SM

WASHER, 1/2 x 1
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1960379SM

NUT, Hex, ESNA, 1/2-13 (Thin)

$4.99

$

In Stock, Qty 18

0

26

Simplicity 1960540SM

PIN, Spring, 5/8 x 2

$4.49

$

In Stock, Qty 11

0
