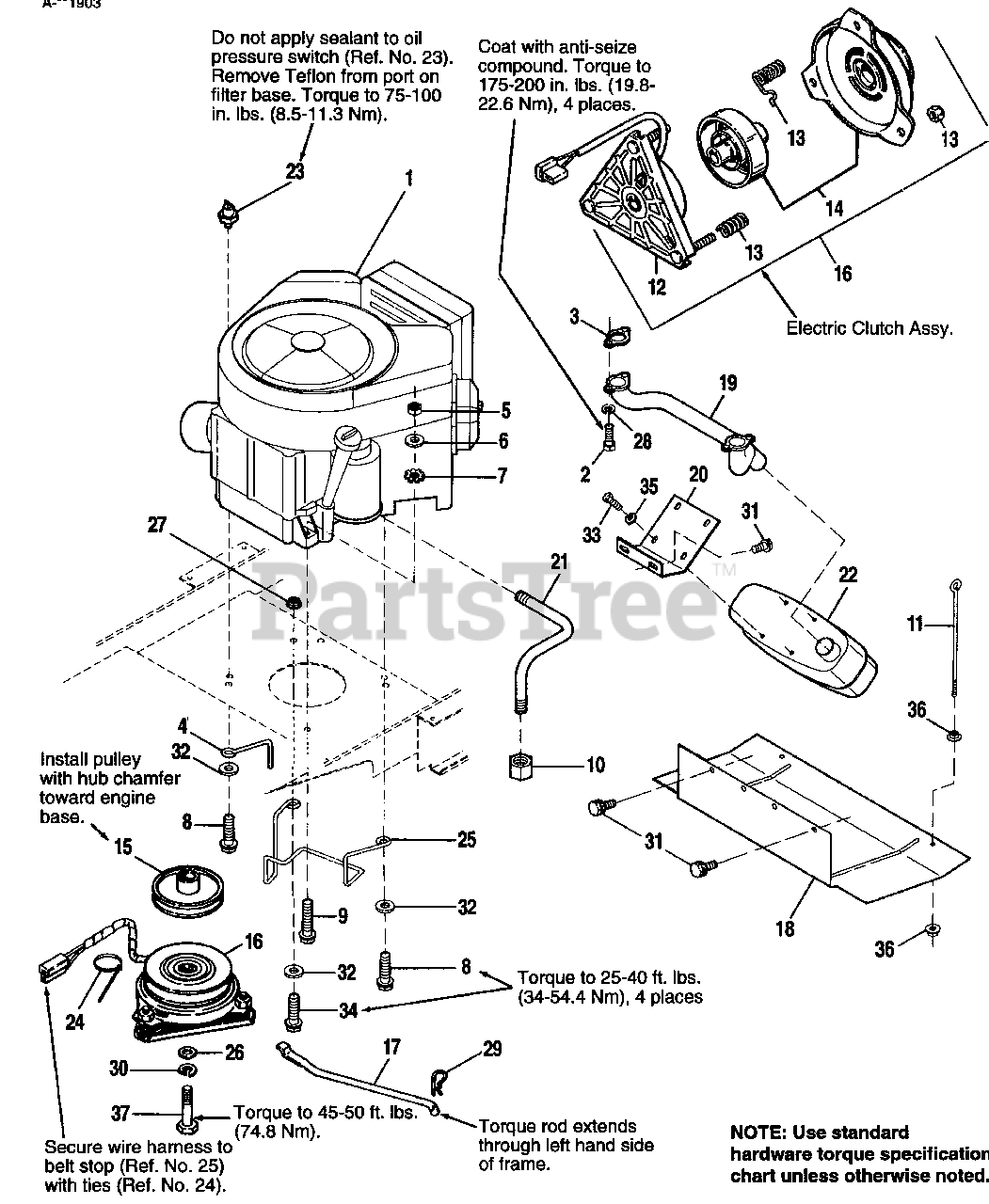

1692375 - Simplicity Front Cut Rear-Engine Riding Mower, 16hp Engine Group - 12HP & 16HP Parts Diagram

Front Cut Rear-Engine Riding Mower, 16hp

Engine Group - 12HP & 16HP Parts Diagram

  • Title

1

ENGINE, 12.5 or 16 HP Briggs & Stratton

$

$

Not available

2

CAPSCREW, Metric

$

$

Not available

3

GASKET, Muffler

$

$

Not available

4

Simplicity 2172844SM

STOP, Belt

$26.99

$

Usually ships in 2-12 days

0

5

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

7

Simplicity 2820427SM

LOCKWASHER, Ext. Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 2860358SM

SCREW, Taptite, 3/8-16 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 1667346SM

CAP, Hex, Pipe, 3/8

$7.49

$

Usually ships in 2-12 days

0

11

Simplicity 1676338SM

ROD, Hold Down

$23.99

$

Usually ships in 2-12 days

0

12

Simplicity 1679101

FIELD ASSY., Clutch

$

$

Not available

13

Simplicity 1679104SM

ACCESSORY KIT, Clutch

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1703074

ROTOR ASSY/ARMATURE ASSY. KIT, Clutch

$

$

Not available

15

Simplicity 1702962SM

PULLEY ASSY., Drive

$98.99

$

Usually ships in 2-12 days

0

16

Simplicity 1703074

ELECTRIC CLUTCH ASSY., (Incl. Ref. Nos. 12-14)

$

$

Not available

17

Simplicity 1703107SM

ROD, Torque

$

$

Not available

18

Simplicity 1703720SM

SHIELD, Heat

$26.99

$

Usually ships in 2-12 days

0

19

Simplicity 1703760SM

MANIFOLD, Exhaust

$

$

Not available

20

Simplicity 1703773SM

BRACE, Muffler

$

$

Not available

21

Simplicity 1703821SM

DRAIN, Oil

$26.99

$

Usually ships in 2-12 days

0

22

Simplicity 1703906SM

MUFFLER ASSY., w/Deflector

$100.99

$

Usually ships in 2-12 days

0

23

Simplicity 1703956SM

SWITCH, Oil Pressure
(Superseded to 690233)

$28.99

$

In Stock, only 2 left!

0

24

Simplicity 1704739SM

TIE

$

$

Not available

25

Simplicity 1705268SM

STOP, Belt

$30.99

$

Usually ships in 2-12 days

0

26

Simplicity 1708264SM

WASHER, 7/16

$8.99

$

In Stock, Qty 5

0

27

Simplicity 1916159SM

NUT, Retainer, 5/15-18

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1917356SM

LOCKWASHER, 5/8
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1918196SM

CLIP, Hair Pin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

32

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

34

Simplicity 1930591SM

SCREW, Hex, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

35

Simplicity 1960151SM

WASHER,
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

36

Simplicity 1960294SM

NUT, Flange, Whizlock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

37

Simplicity 1960351SM

CAPSCREW, Hex, 7/16 x 3-1/4

$5.49

$

Usually ships in 2-12 days

0
