1692370 - Simplicity Broadmoor Lawn Tractor, 14hp Electrical Group - Lower Harness Parts Diagram

Broadmoor Lawn Tractor, 14hp

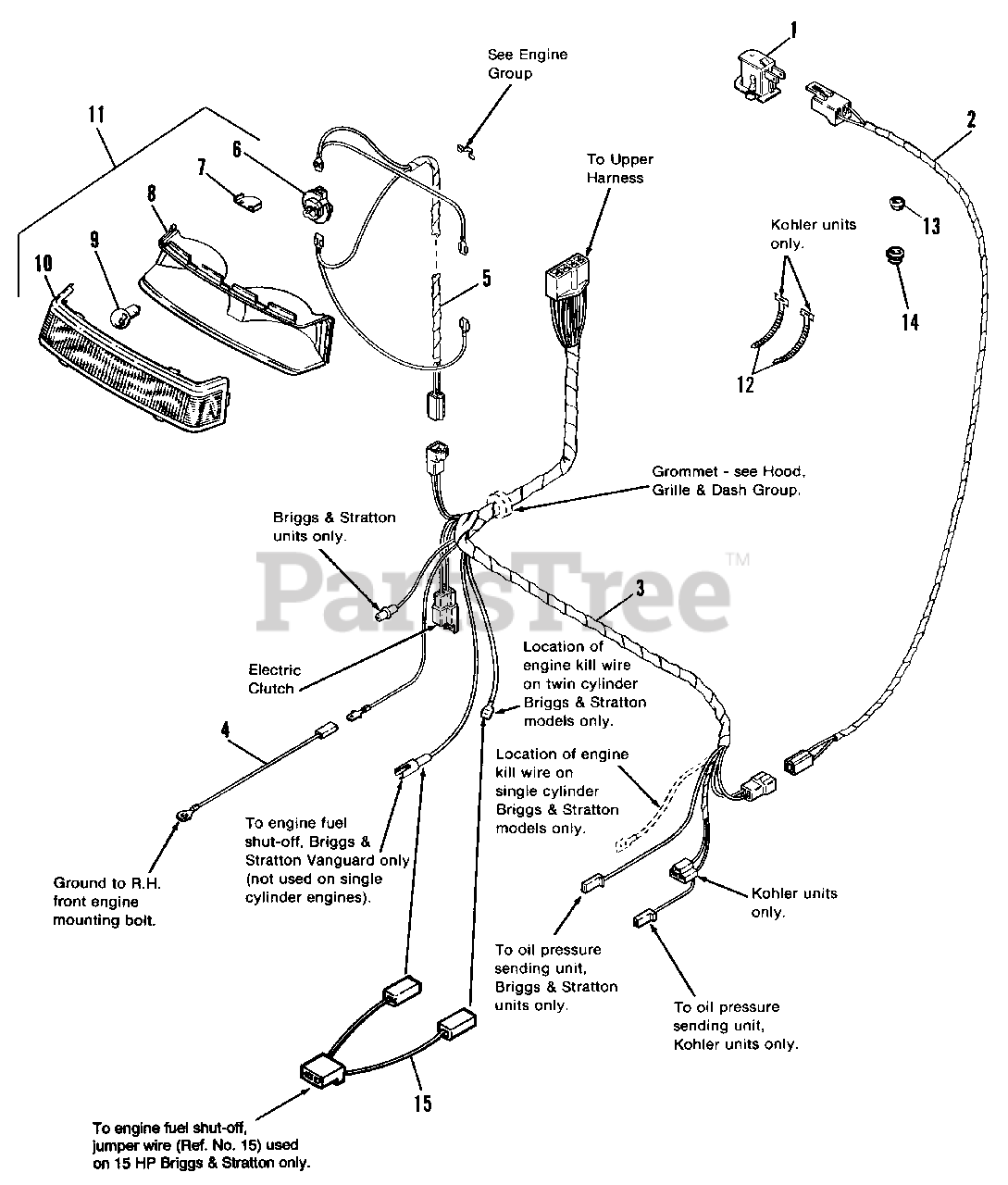

Electrical Group - Lower Harness Parts Diagram

  • Title

1

Simplicity 1704379SM

SWITCH, Seat, Operator Present
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 20+

0

2

Simplicity 1704877SM

WIRE ASSY., Seat Switch

$

$

Not available

3

Simplicity 1704377SM

HARNESS ASSY., Lower (12.5, 15 & 16 HP Briggs & Stratton)

$

$

Not available

3

Simplicity 1705447SM

HARNESS ASSY., Lower (14 HP Kohler))

$69.99

$

Usually ships in 2-12 days

0

4

Simplicity 1707232SM

WIRE ASSY., Engine Ground

$5.99

$

Usually ships in 2-12 days

0

5

Simplicity 1674358SM

WIRE ASSY., Headlight

$35.99

$

In Stock, Qty 6

0

6

Simplicity 1677370SM

SOCKET, Bulb

$21.99

$

In Stock, only 2 left!

0

7

Simplicity 1703946SM

HEAT SHIELD

$

$

Not available

8

Simplicity 1703249SM

BEZEL, Headlight

$93.99

$

In Stock, only 1 left!

0

9

Simplicity 1677371SM

BULB, Headlight, 12.8V

$30.99

$

In Stock, only 1 left!

0

10

Simplicity 1703248SM

LENS, Headlight

$50.99

$

In Stock, only 1 left!

0

11

Simplicity 1703945SM

HEADLIGHT ASSY. (Incl. Ref. Nos. 6-10)

$164.99

$

In Stock, only 1 left!

0

12

Simplicity 1701011SM

TIE, Cable

$5.49

$

In Stock, only 2 left!

0

13

Simplicity 1701229SM

BUSHING, Snap, Small

$1.99

$

Usually ships in 2-12 days

0

14

Simplicity 1705921SM

BUSHING, Snap, Large (14 HP Kohler only)

$2.49

$

Usually ships in 2-12 days

0

15

Simplicity 1713304

WIRE ASSY., Jumper (15 HP Briggs & Stratton only)

$

$

Not available
