1692356 - Simplicity 40" Snow Thrower Attachment 40" Snowthrower - Frame, Drive & Auger Group Parts Diagram

40" Snow Thrower Attachment

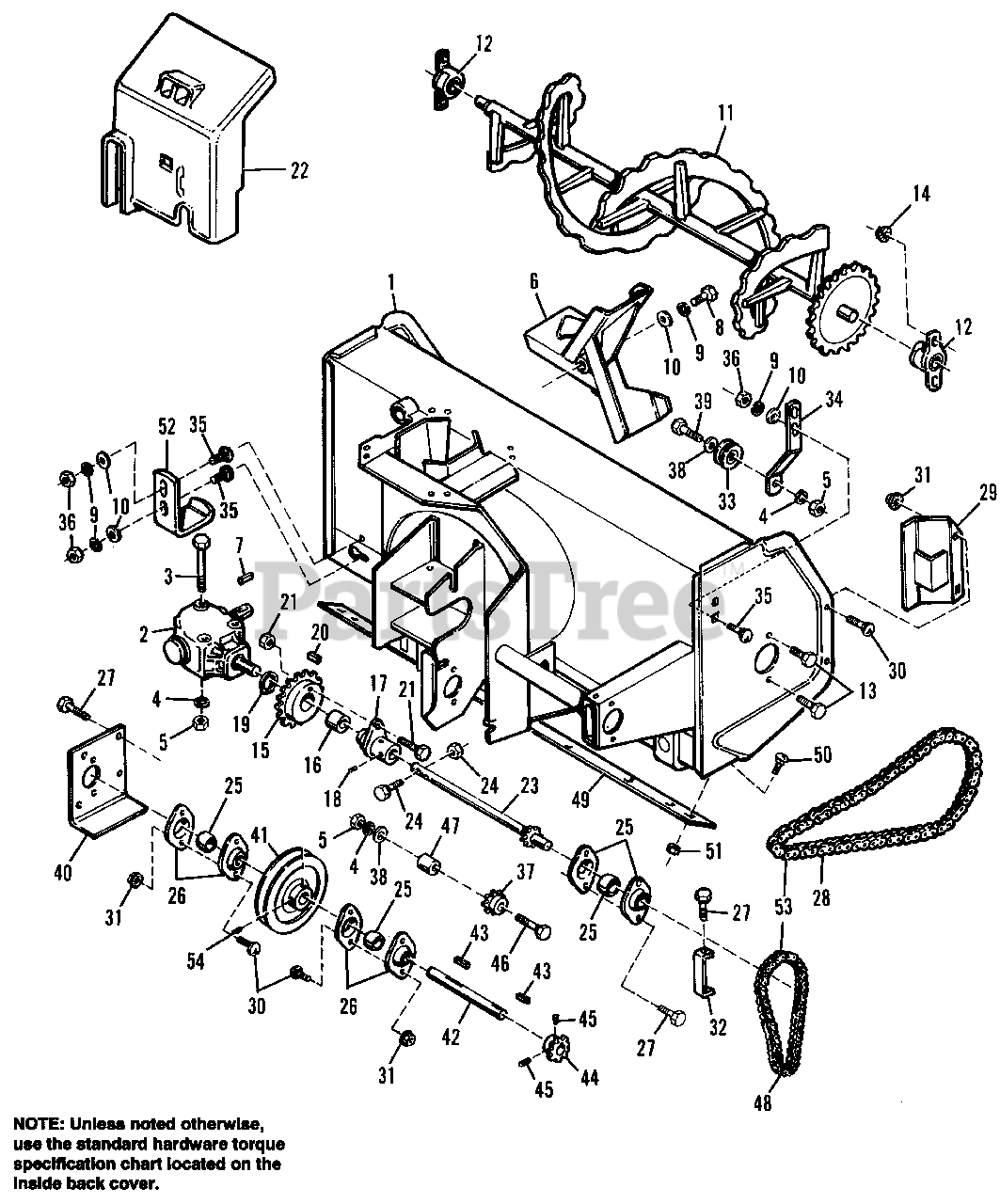

40" Snowthrower - Frame, Drive & Auger Group Parts Diagram

  • Title

1

Simplicity 1713676SM

FRAME ASSY.

$

$

Not available

2

Simplicity 1713677SM

GEAR BOX

$

$

Not available

3

Simplicity 1922648SM

CAPSCREW, Hex, 3/8-16 x 4, Gr. 5
(Superseded to 703875)

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 1916950SM

NUT, Hex, 3/8
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1713678SM

FAN ASSY.

$253.99

$

Usually ships in 2-12 days

0

7

Simplicity 1713679SM

KEY, 8mm x 7mm x 35mm

$9.49

$

Usually ships in 2-12 days

0

8

Simplicity 1960347SM

CAPSCREW, Hex, M8-1-1/4 x 25mm
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1924940SM

WASHER, Plain, 5/16
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1713680SM

AUGER, 40"

$826.99

$

Usually ships in 2-12 days

0

12

Simplicity 1713681SM

BUSHING, Side Mount

$94.99

$

Usually ships in 2-12 days

0

13

Simplicity 1933260SM

SCREW, Lock, Flange, Whizlock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

14

Simplicity 1930645SM

NUT, Hex, Flange, 2-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 1713682SM

SPROCKET

$153.99

$

Usually ships in 2-12 days

0

16

Simplicity 1713683SM

BUSHING

$

$

Not available

17

Simplicity 1713684SM

SHEAR PLATE

$125.99

$

Usually ships in 2-12 days

0

18

Simplicity 1960619SM

SETSCREW, Hex, Socket Cup Pt., 5/16-18 x 5/16

$3.49

$

In Stock, Qty 10

0

19

Simplicity 1713685SM

SNAP RING, External

$6.99

$

Usually ships in 2-12 days

0

20

Simplicity 1713686SM

KEY, 8mm x 35mm

$7.99

$

Usually ships in 2-12 days

0

21

Simplicity 1713687SM

SHEAR BOLT, Fan, w/Nylon Nut, 5mm x .8 x 40mm

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1713688SM

COVER, Reduction, Plastic

$

$

Not available

23

Simplicity 1713689SM

SHAFT, Driven

$129.99

$

Usually ships in 2-12 days

0

24

Simplicity 1713690SM

SHEAR BOLT, Auger, w/Nylon Nut, 1/4-20 x 2

$4.49

$

In Stock, only 3 left!

0

25

Simplicity 1713691SM

BEARING

$48.99

$

Usually ships in 2-12 days

0

26

Simplicity 1713692SM

BEARING, Flange

$7.99

$

Usually ships in 2-12 days

0

27

Simplicity 1931648SM

SCREW, Lock, Flange Whiz, 5/16-18 x 1/2
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

28

Simplicity 1713693SM

CHAIN, #40 x 91 Links (without connecting link)

$102.99

$

Usually ships in 2-12 days

0

29

Simplicity 1713694SM

GUARD, Chain, Auger

$53.99

$

Usually ships in 2-12 days

0

30

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1935048SM

NUT, Hex, Flange, 2-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1713695SM

GUARD, Chain, Drive Shaft

$22.99

$

Usually ships in 2-12 days

0

33

Simplicity 1713696SM

PULLEY, Idler

$29.99

$

In Stock, only 1 left!

0

34

Simplicity 1713697SM

ARM, Chain Adjuster

$43.99

$

Usually ships in 2-12 days

0

35

Simplicity 1931335SM

CARRAIGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

36

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1713698SM

SPROCKET, Idler

$56.99

$

Usually ships in 2-12 days

0

38

Simplicity 1925125SM

WASHER, Plain, 7/16

$6.49

$

In Stock, only 2 left!

0

39

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

40

Simplicity 1713699SM

PLATE, Support Bearing

$18.99

$

Usually ships in 2-12 days

0

41

Simplicity 1713700SM

PULLEY ASSY. (Incl. Ref. No. 54)

$78.99

$

Usually ships in 2-12 days

0

42

Simplicity 1713701SM

SHAFT, Driving

$70.99

$

Usually ships in 2-12 days

0

43

Simplicity 2805850SM

KEY, 3/16 x 3/16 x 1

$2.49

$

Usually ships in 2-12 days

0

44

Simplicity 1713702SM

SPROCKET

$48.99

$

Usually ships in 2-12 days

0

45

Simplicity 1928804SM

SETSCREW, Hex, Socket, 1/4-20 x 5/16

$4.49

$

Usually ships in 2-12 days

0

46

Simplicity 1922130SM

CAPSCREW, Hex Hd., 3/8-16 x 2-3/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

47

Simplicity 1713703SM

SPACER, Idler

$63.99

$

Usually ships in 2-12 days

0

48

Simplicity 1713704SM

CHAIN, #40 x 40 Links (Incl. Ref. No. 53)

$54.99

$

In Stock, only 1 left!

0

49

Simplicity 1713705SM

EDGE, Cutting

$59.99

$

Usually ships in 2-12 days

0

50

Simplicity 1960282SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

51

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

52

Simplicity 1713706SM

SKID SHOE

$41.99

$

Usually ships in 2-12 days

0

53

Simplicity 1704893SM

MASTER LINK, Chain #40

$4.99

$

In Stock, only 1 left!

0

54

Simplicity 1674333SM

SETSCREW, Pulley

$5.99

$

Usually ships in 2-12 days

0
