1692327 A - Simplicity Tractor Tow Bar Tow Bar (1692327A) Parts Diagram

Tractor Tow Bar

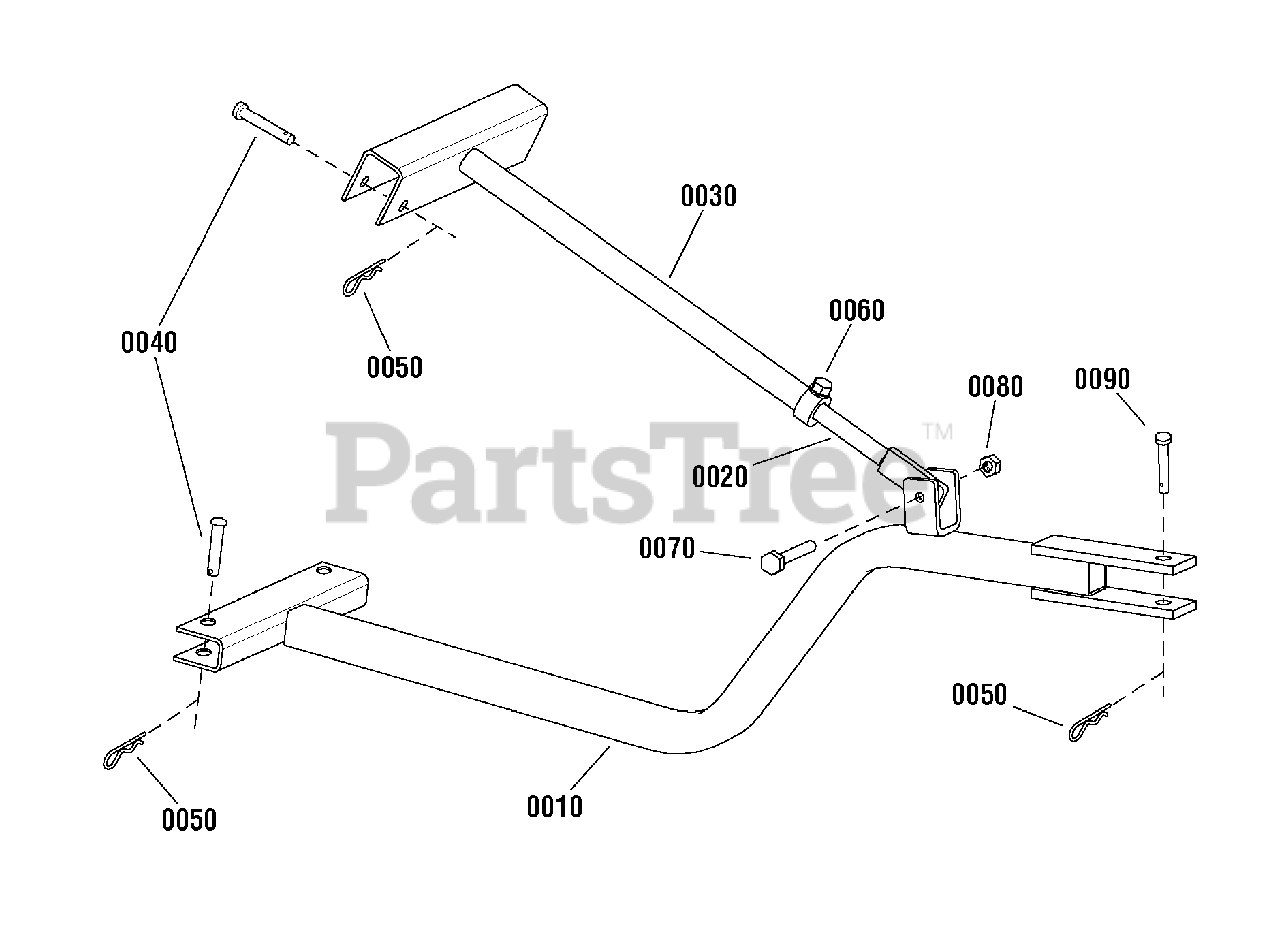

Tow Bar (1692327A) Parts Diagram

  • Title
0010

TOW BAR

Note: (Not Serviceable)

$

$

Not available

0020

ROD

Note: (Not Serviceable)

$

$

Not available

0030

Simplicity 1713357SM

SWING ARM ASSEMBLY

$95.99

$

Usually ships in 2-12 days

0

0040

PIN, 5/16 x 1-1/2

Note: (Not Serviceable)

$

$

Not available

0050

Simplicity 1918196SM

PIN, Quick, 3/32 x 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 1925205SM

SET SCREW, 5/16 - 18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

0070

Simplicity 1921978SM

CAPSCREW, Hex, 5/16 - 18 x 2
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

0080

Simplicity 1919438SM

NUT, Hex Lock, 5/16 - 18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 2118053SM

PIN, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

--

Simplicity 1713362

INSTALLATION INSTRUCTIONS

$

$

Not available
