1692301 - Simplicity Landlord Garden Tractor, 16hp Transmission Group - Gear Parts Diagram

Landlord Garden Tractor, 16hp

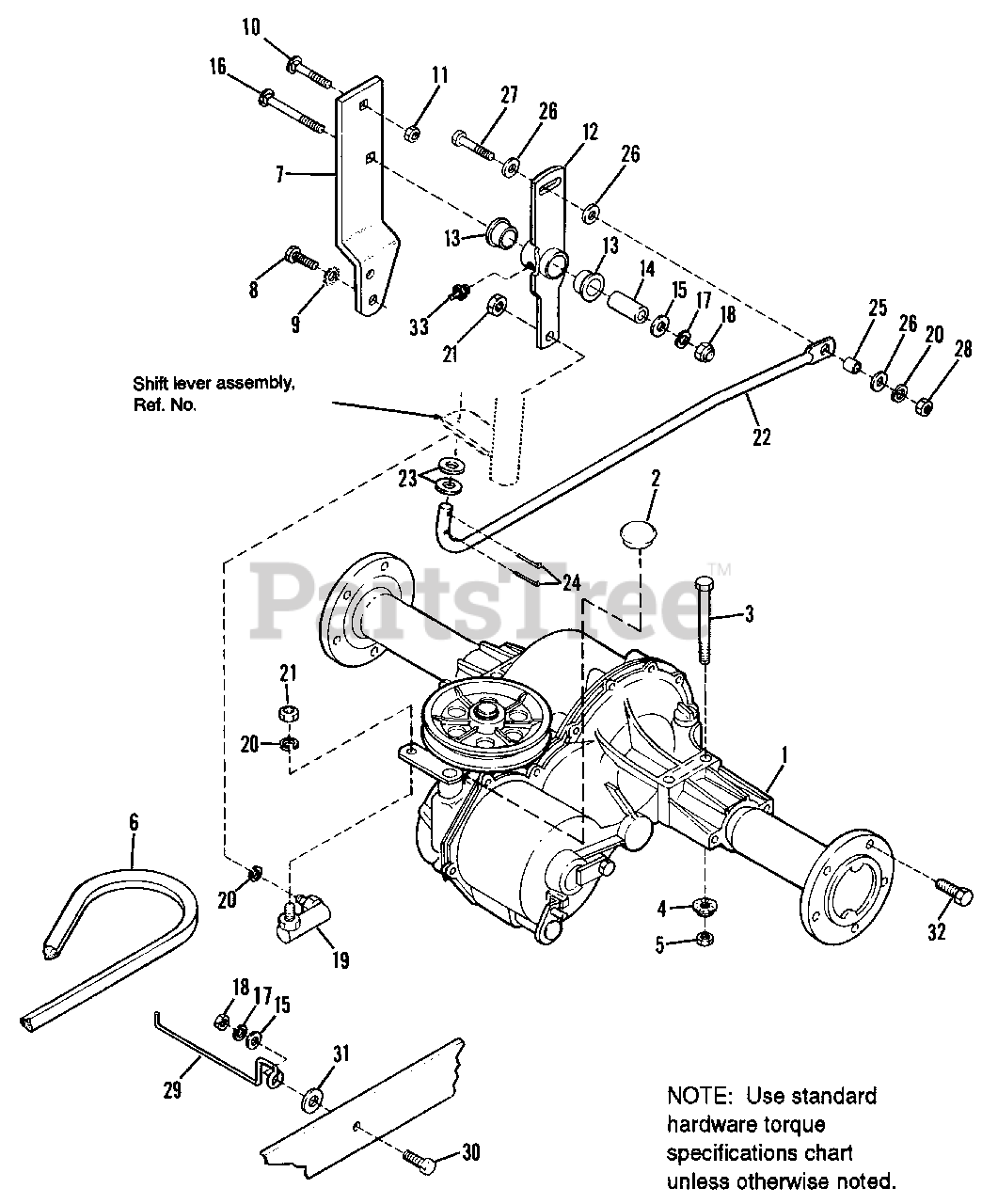

Transmission Group - Gear Parts Diagram

  • Title

1

Simplicity 1707055SM

GEAR TRANSMISSION, 6-Speed

$2111.99

$

Usually ships in 2-12 days

0

2

Simplicity 1707572SM

PLUG, Hole

$

$

Not available

3

Simplicity 1923938SM

CAPSCREW, Hex, 3/8-16 x 3-1/2
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

4

Simplicity 1930645SM

NUT, Hex, Flange Whizlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Simplicity 1960251SM

NUT, Hex, Jam Lock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

6

Simplicity 1707381SM

BELT, Drive

$49.99

$

Usually ships in 2-12 days

0

7

Simplicity 1707162SM

SUPPORT, Transmission

$7.99

$

Usually ships in 2-12 days

0

8

Simplicity 1950036SM

SCREW, Metric, M10-1.5 x 25 mm

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1920427SM

LOCKWASHER External Tooth, 3/8

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 1923220SM

CARRIAGE BOLT, 3/8-16 x 1-1/4
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

11

Simplicity 1922694SM

NUT, Hex, Nyloc, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1707159

SHIFT LEVER ASSY.

$

$

Not available

13

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

14

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 20+

0

15

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1960315SM

CARRIAGE BOLT, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 2166079SM

BALL JOINT Double-End

$

$

Not available

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2820263SM

NUT, Hex, Full, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1707218SM

ROD, Shift

$14.99

$

Usually ships in 2-12 days

0

23

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 2171371SM

SPACER

$9.49

$

In Stock, only 1 left!

0

26

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1921977SM

SCREW, Cap, Hex, 5/16-18 x 1-1/2
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

28

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1707294SM

ROD GUIDE

$

$

Not available

30

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960009

WASHER, Plain

$

$

Not available

32

Simplicity 1729280SM

BOLT, Hub, Rear Wheel

$6.49

$

In Stock, only 2 left!

0

33

Simplicity 2821133SM

GREASE FITTING
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0
