1692287 - Simplicity Broadmoor Lawn Tractor, 15hp Transmission Group - Gear 2 - Peerless Model 801-059 Parts Diagram

Broadmoor Lawn Tractor, 15hp

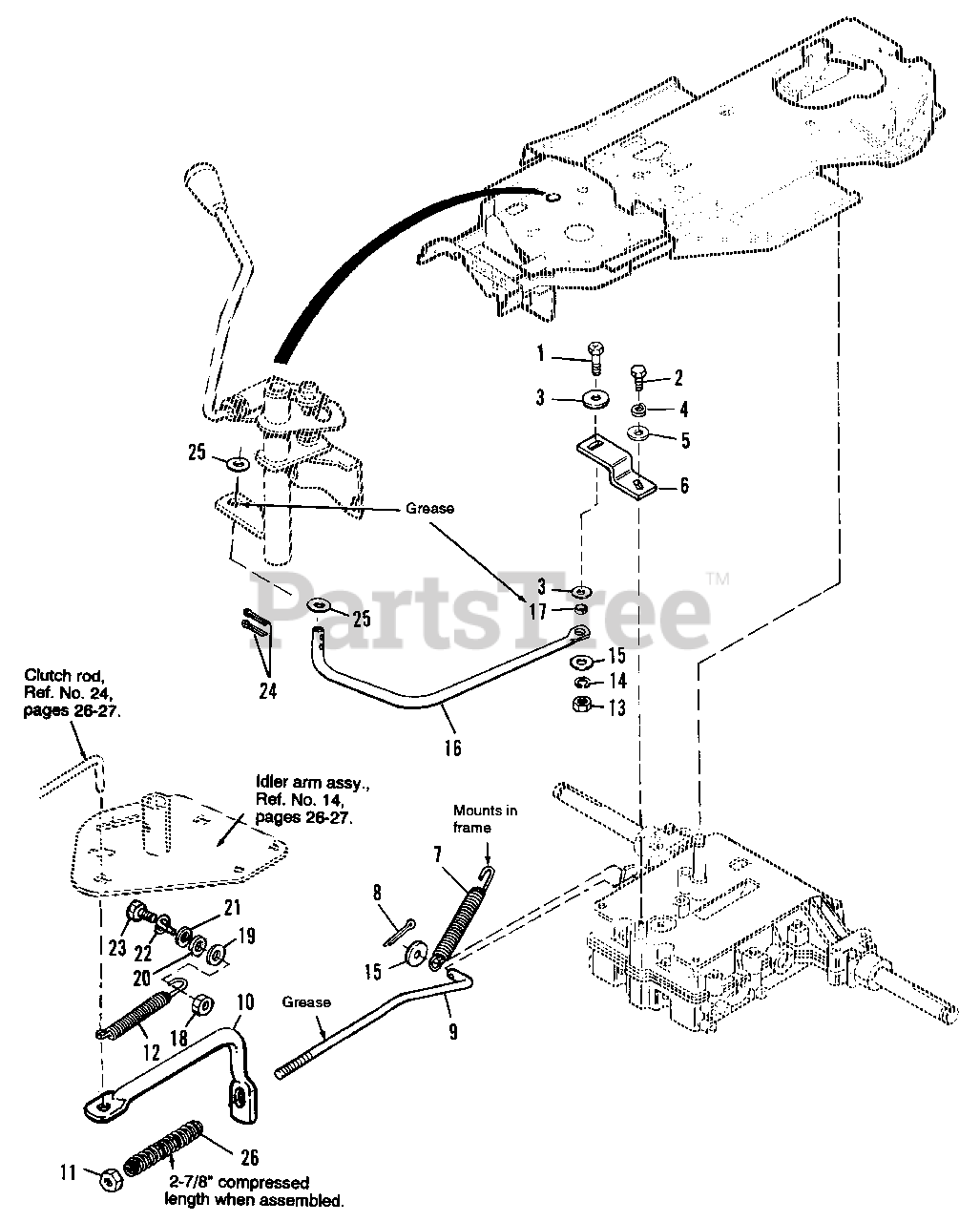

Transmission Group - Gear 2 - Peerless Model 801-059 Parts Diagram

  • Title

1

Simplicity 1921977SM

CAPSCREW, Hex, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

2

Simplicity 1922234SM

CAPSCREW, Hex, 1/4-28 x 5/8

$2.49

$

Usually ships in 2-12 days

0

3

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

5

Simplicity 1960151SM

WASHER, Plain, 1/4
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

6

Simplicity 1705500

LEVER, Shift

$

$

Not available

7

Simplicity 2159106SM

SPRING, External
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

8

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1714012SM

ROD, Brake

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 1709896SM

GUIDE, Brake Rod

$25.99

$

Usually ships in 2-12 days

0

11

Simplicity 1919438SM

NUT, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1706553SM

SPRING, External

$9.99

$

Usually ships in 2-12 days

0

13

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

16

Simplicity 1709866

ROD, Shift

$

$

Not available

17

Simplicity 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

18

Simplicity 1930645SM

JAM NUT, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

21

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 2167032SM

BELT STOP

$31.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921969SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

24

Simplicity 1918447SM

COTTER PIN, 15/16 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1709097SM

SPRING, Compression

$92.99

$

Usually ships in 2-12 days

0
