1692283 - Simplicity Broadmoor Lawn Tractor, 16hp Steering Group Parts Diagram

Broadmoor Lawn Tractor, 16hp

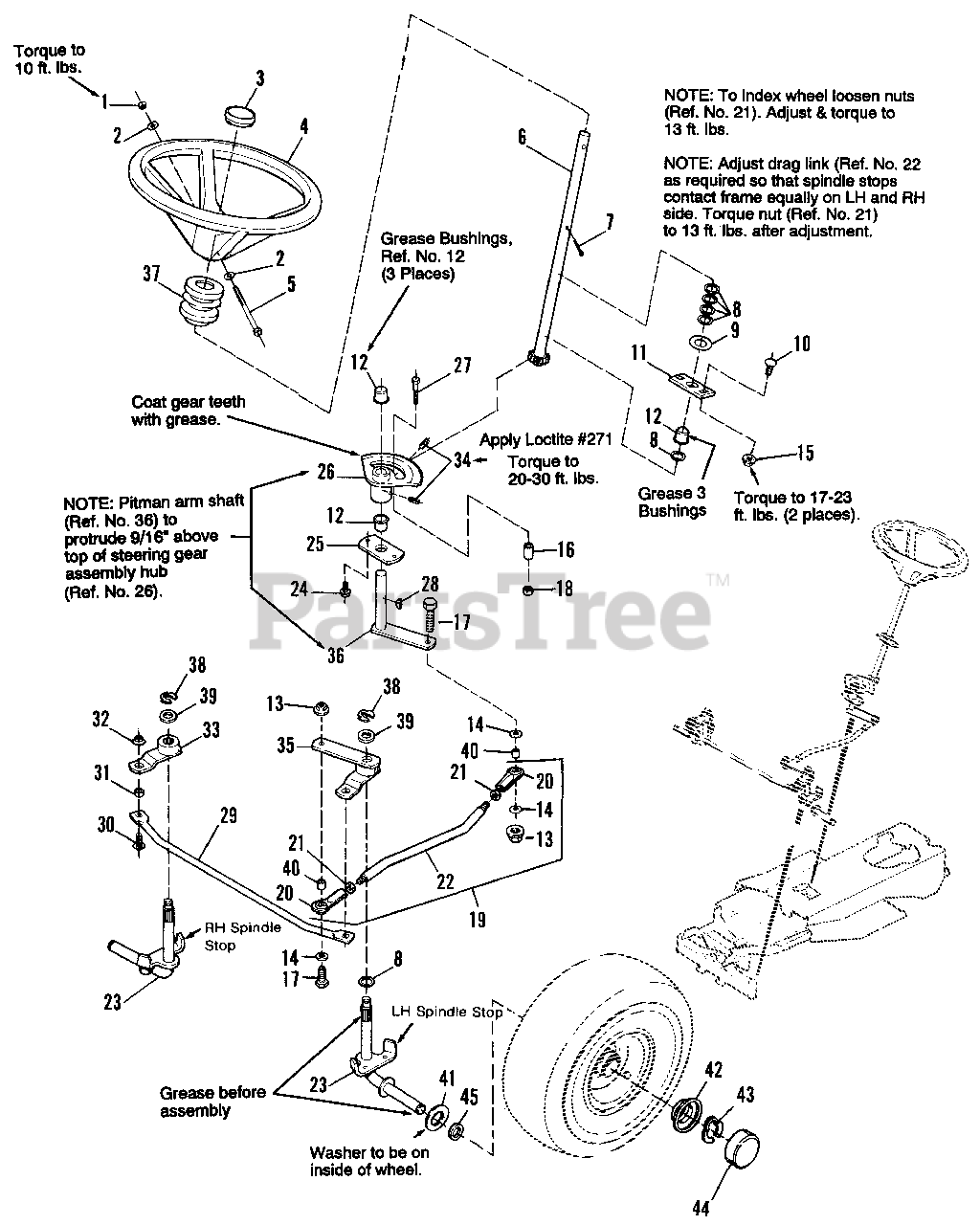

Steering Group Parts Diagram

  • Title

1

Simplicity 1923362SM

NUT, Hex, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

2

Simplicity 1919326SM

WASHER, Steering Wheel

$4.49

$

In Stock, Qty 6

0

3

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

4

Simplicity 1686651SM

STEERING WHEEL

$190.99

$

In Stock, only 1 left!

0

5

Simplicity 1925690SM

CAPSCREW, 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1707321SM

SHAFT ASSY., Steering

$192.99

$

In Stock, only 1 left!

0

7

Simplicity 1919314SM

COTTER PIN

$3.49

$

In Stock, Qty 7

0

8

Simplicity 1960114SM

WASHER, Plain, 49/64
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2173668SM

WASHER, Plain

$9.49

$

In Stock, only 2 left!

0

10

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

11

Simplicity 1703508ASM

PLATE, Mounting, Steering

$24.99

$

In Stock, Qty 6

0

12

Simplicity 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1930645SM

NUT, Hex, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Simplicity 1922755SM

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

15

Simplicity 1928352SM

NUT, Hex, Flange, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 1673796SM

SPACER, Stop

$24.99

$

Usually ships in 2-12 days

0

17

Simplicity 1921969SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

18

Simplicity 1919438SM

NUT, Hex, Esna Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 1685478SM

DRAG LINK ASSY., (Incl. Ref. Nos. 14, 13, 17, 20, 21 & 22)

$158.99

$

Usually ships in 2-12 days

0

20

Simplicity 1702779SM

BALL JOINT, Flat

$28.99

$

In Stock, Qty 12

0

21

Simplicity 1919262SM

JAM NUT, Hex, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1708084A

DRAG LINK

$

$

Not available

23

Simplicity 1707450SM

SPINDLE ASSY., Splined
(Superseded to 1707450ASM)

$170.99

$

In Stock, only 4 left!

0

24

Simplicity 1960373SM

SCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1716117SM

SECTOR MOUNTING PLATE
(Superseded to 1716117ASM)

$

$

Not available

26

Simplicity 1686824SM

GEAR ASSY., Steering

$158.99

$

Usually ships in 2-12 days

0

27

Simplicity 1921221SM

CAPSCREW, Hex, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

28

Simplicity 2830670SM

KEY, Hi Pro

$2.49

$

Usually ships in 2-12 days

0

29

Simplicity 1706956SM

TIE ROD

$

$

Not available

30

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

31

Simplicity 1611705SM

SPACER

$4.49

$

In Stock, Qty 17

0

32

Simplicity 1930645SM

NUT, Hex, Lock, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

33

Simplicity 1706996SM

ARM ASSY., Steering, R.H., Splined

$

$

Not available

34

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

35

Simplicity 1706997SM

STEERING ARM ASSY., L.H., Splined
(Superseded to 1706997ASM)

$149.99

$

In Stock, only 1 left!

0

36

Simplicity 1703512SM

PITMAN ARM ASSY.

$75.99

$

Usually ships in 2-12 days

0

37

Simplicity 1707320

TUBE, Steering

$

$

Not available

38

Simplicity 1704420SM

KLIP RING, 5/8

$4.99

$

In Stock, only 2 left!

0

39

Simplicity 1960020SM

WASHER

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1708236SM

SPACER

$8.99

$

In Stock, Qty 10

0

41

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 1701435SM

RETAINER, Hubcap

$13.99

$

In Stock, only 1 left!

0

43

Simplicity 1611710SM

RETAINING RING

$4.49

$

In Stock, Qty 20+

0

44

Simplicity 1676519SM

HUBCAP

$8.49

$

In Stock, Qty 20+

0

45

Simplicity 1960160SM

WASHER, Special (Hydro models only)

$4.99

$

In Stock, Qty 9

0
