1692283 - Simplicity Broadmoor Lawn Tractor, 16hp Engine Group - Electric Clutch - 12.5 & 16HP Twin Cylinder Briggs & Stratton Parts Diagram

Broadmoor Lawn Tractor, 16hp

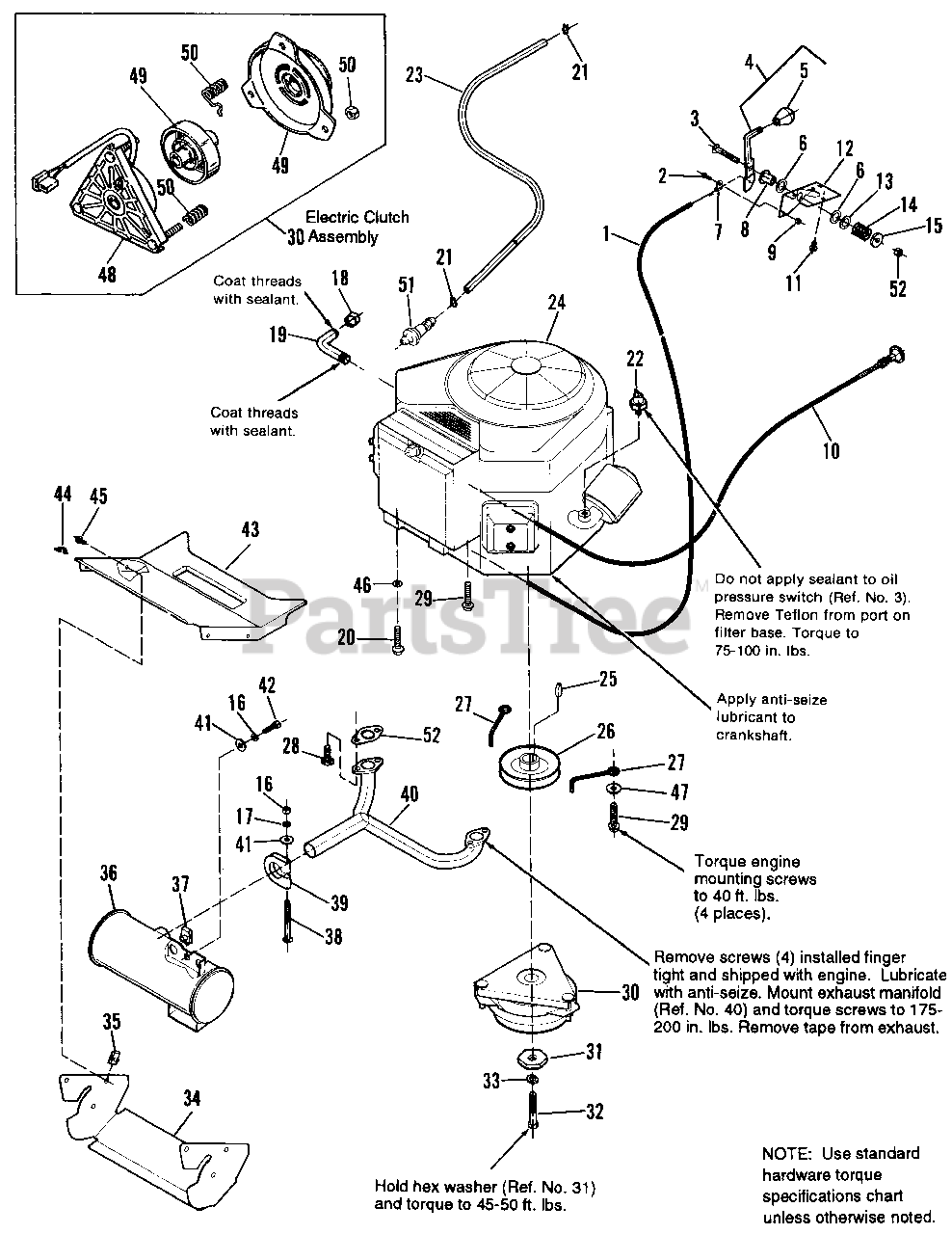

Engine Group - Electric Clutch - 12.5 & 16HP Twin Cylinder Briggs & Stratton Parts Diagram

  • Title

1

Simplicity 1666268SM

CABLE, Throttle

$39.99

$

In Stock, Qty 5

0

2

Simplicity 1930531SM

SCREW, Trusshead, 10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

3

Simplicity 1931338SM

CARRIAGE BOLT, 5/16-18 x 1-3/4
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 1685699SM

HANDLE, Throttle (Incl. Ref. No. 5)

$37.99

$

Usually ships in 2-12 days

0

5

Simplicity 1713844SM

KNOB, Throttle

$12.99

$

Usually ships in 2-12 days

0

6

Simplicity 2860171SM

WASHER, Nylon

$4.49

$

In Stock, Qty 11

0

7

Simplicity 2158475SM

CLIP, Bowden Wire

$5.49

$

In Stock, only 4 left!

0

8

Snapper 1704332SM

SPACER

$28.99

$

Usually ships in 2-12 days

0

9

Simplicity 1928919SM

NUTASSY., 10-32

$3.99

$

In Stock, only 3 left!

0

10

Simplicity 1704344SM

CABLE, Choke Control

$49.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960728SM

SCREW, Plastite, 1/4-20 x 5/8

$3.99

$

In Stock, only 4 left!

0

12

Simplicity 1704335SM

BRACKET, Throttle Mounting

$

$

Not available

13

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 7

0

15

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1667346SM

CAP, Oil

$7.49

$

Usually ships in 2-12 days

0

19

Simplicity 1704343SM

DRAIN, Oil

$13.99

$

Usually ships in 2-12 days

0

20

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1703956SM

SWITCH, Oil Pressure
(Superseded to 690233)

$28.99

$

In Stock, Qty 5

0

23

Simplicity 1718678SM

HOSE, Fuel, 45-1/2" Long

$

$

Not available

24

ENGINE, Twin Cylinder, 16 HP (Briggs & Stratton) ENGINE, Twin Cylinder, 12.5 HP (Briggs & Stratton)

$

$

Not available

25

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

26

Simplicity 1704307ASM

PULLEY ASSY.

$120.99

$

Usually ships in 2-12 days

0

27

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 2 left!

0

28

Simplicity 1960407SM

SCREW, Metric

$4.49

$

In Stock, only 4 left!

0

29

Simplicity 1930598SM

SCREW, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 1703816SM

ELECTRIC CLUTCH (Incl. Ref. Nos. 48-50)

$555.99

$

Usually ships in 2-12 days

0

31

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

32

Simplicity 1960370SM

CAPSCREW, 7/16-20 x 2-1/2

$5.49

$

Usually ships in 2-12 days

0

33

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1704357SM

DUCT, Lower Muffler
(Superseded to 1704357ASM)

$179.99

$

Usually ships in 2-12 days

0

35

Simplicity 1960368SM

PAL NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1703971SM

MUFFLER ASSY.

$213.99

$

Usually ships in 2-12 days

0

37

Simplicity 2835255

PAL NUT, 5/16-18

$

$

Not available

38

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

39

Simplicity 1676183SM

CLAMP, Muffler

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 1703986SM

MANIFOLD, Exhaust

$186.99

$

Usually ships in 2-12 days

0

41

Simplicity 1919326SM

WASHER, Plain, 11/32

$4.49

$

In Stock, Qty 8

0

42

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

43

Simplicity 1707334SM

DUCT, Upper Muffler

$16.99

$

Usually ships in 2-12 days

0

44

Simplicity 2834683SM

CLIP
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

45

Simplicity 1960295SM

SCREW, Flange Whizlock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

46

Simplicity 2820427SM

LOCKWASHER, External Tooth
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

47

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

48

Simplicity 1679101

FIELD ASSY., Clutch

$

$

Not available

49

Simplicity 1703816SM

ROTOR & ARMATURE ASSY.

$555.99

$

Usually ships in 2-12 days

0

50

Simplicity 1679104SM

SPRING & NUT KIT

$12.99

$

Usually ships in 2-12 days

0

51

Simplicity 2173206SM

FUEL FILTER
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

52

Simplicity 1919438SM

NUT, Hex, Esna Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
