1692260 - Simplicity Regent 36" Lawn Tractor, 12.5hp Transmission Group - Hydro Gear Model 318-0500 Parts Diagram

Regent 36" Lawn Tractor, 12.5hp

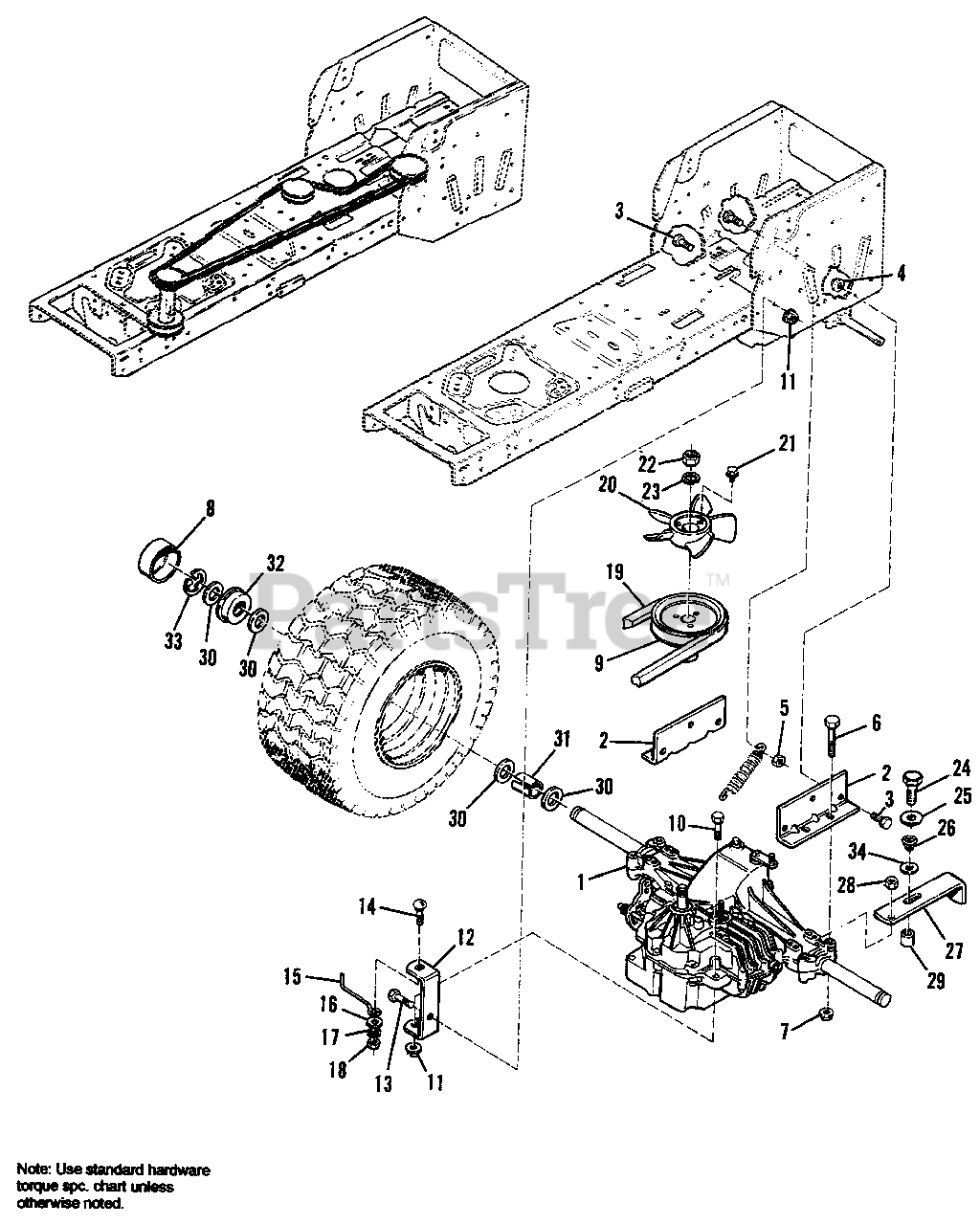

Transmission Group - Hydro Gear Model 318-0500 Parts Diagram

  • Title

1

Simplicity 1686613SM

TRANSMISSION, Hydro

$

$

Not available

2

Simplicity 1666632

SUPPORT, Trarsmission, Rear

$

$

Not available

3

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

4

Simplicity 1928352SM

LOCKNUT, Hex, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

5

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Simplicity 1921719SM

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

7

Simplicity 1935048SM

NUT, Hex, Flange Lock, 5/8-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1676519SM

HUB CAP

$8.49

$

In Stock, Qty 20+

0

9

Simplicity 1709786SM

PULLEY ASSY.

$

$

Not available

10

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

11

Simplicity 1931277SM

NUT, Hex, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 1709790

STRAP, Torque

$

$

Not available

13

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

14

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

15

Simplicity 2172844SM

BELT STOP

$26.99

$

Usually ships in 2-12 days

0

16

Simplicity 1919381SM

WASHER, 11/32 x 1 x 3/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2170164SM

V-BELT

$40.99

$

Usually ships in 2-12 days

0

20

Simplicity 1707933SM

FAN

$11.99

$

In Stock, only 1 left!

0

21

Simplicity 1933958SM

SCREW, Taptite, 1/4-20 x 1-1/64

$4.49

$

In Stock, only 1 left!

0

22

Simplicity 1919262SM

NUT, Hex, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 1960509SM

SCREW, Taptite, Hex Hd., 10-24 x 1-1/4

$1.99

$

Usually ships in 2-12 days

0

25

Simplicity 1960151SM

WASHER, Plain, 1/4 x 1-11/32 x 1/16
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

26

Simplicity 2157127SM

SPRING, Conical

$

$

Not available

27

Simplicity 1709271SM

LEVER, Tow Valve

$7.99

$

Usually ships in 2-12 days

0

28

Simplicity 1923358SM

NUT, Hex, Full Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

29

Simplicity 1709901SM

SPACER

$9.49

$

Usually ships in 2-12 days

0

30

Simplicity 2860202SM

WASHER, Plain, 3/4 x 1-5/8 x 1/8

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1667191SM

SPACER

$5.49

$

Usually ships in 2-12 days

0

32

Simplicity 1701435SM

RETAINER, Hub Cap

$13.99

$

In Stock, only 1 left!

0

33

Simplicity 2827794SM

E-RING

$3.49

$

In Stock, Qty 18

0

34

Simplicity 1922611SM

WASHER, Plain

$6.99

$

In Stock, only 1 left!

0
