48" Turbo Mower Driven Vacuum System

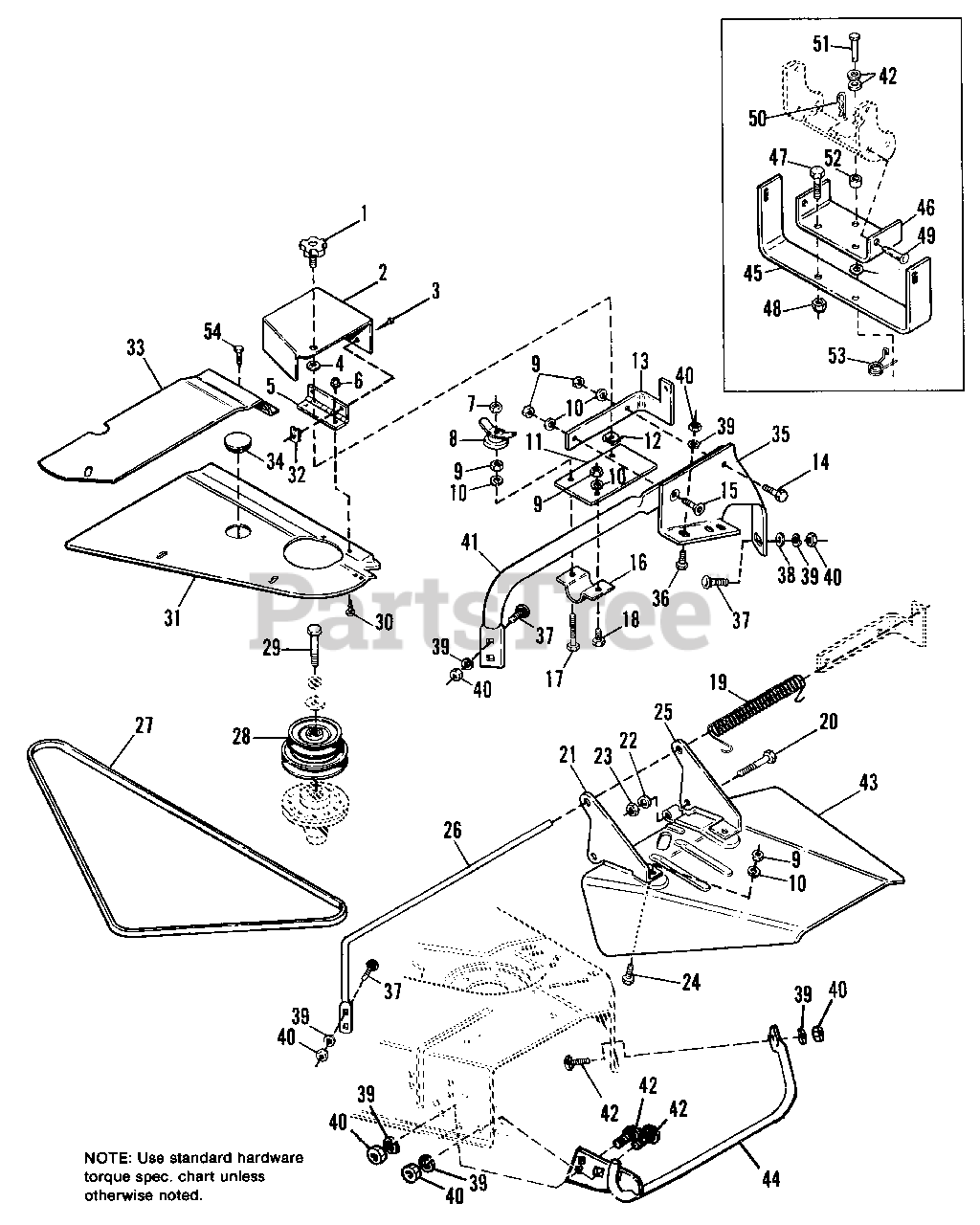

48" Mower Driven Vacuum System-Cover & Support Group Parts Diagram

  • Title

1

Simplicity 1700669SM

KNOB, Plastic

$19.99

$

Usually ships in 2-12 days

0

2

Simplicity 1709326SM

COVER ASSY., Belt (Incl. Ref. Nos. 3, 6 & 7)

$37.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960720SM

SCREW, Hex Hd., Thread Forming, #10-1/2

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1933988SM

PUSHNUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1700649SM

HINGE

$25.99

$

Usually ships in 2-12 days

0

6

Simplicity 1928919SM

NUT, Hex #10-32

$3.99

$

In Stock, only 3 left!

0

7

Simplicity 1923362SM

LOCKNUT, Hex, Full, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

8

Simplicity 1679163SM

WING NUT ASSY.

$69.99

$

In Stock, only 1 left!

0

9

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1700638SM

CLAMP, Upper

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 1935255SM

PAL NUT

$3.49

$

In Stock, only 3 left!

0

13

Simplicity 1722049SM

PIVOT ASSY., Deflector

$

$

Not available

14

Simplicity 1921977SM

CAPSCREW, Hex, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

15

Simplicity 1960486SM

CAPSCREW, Hex, Flat Socket Hd., 5/16-18 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1679898SM

CLAMP, Lower

$8.49

$

Usually ships in 2-12 days

0

17

Simplicity 1960318SM

CAPSCREW, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1925205SM

CAPSCREW, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 1700851SM

SPRING, Torsion

$21.99

$

Usually ships in 2-12 days

0

20

Simplicity 1926110SM

CAPSCREW, Hex, 7/16-14 x 2-3/4

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 1700801ASM

PIVOT BRACKET, L.H.

$43.99

$

Usually ships in 2-12 days

0

22

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1918213SM

NUT, Hex, Full, 7/16-14

$4.99

$

In Stock, only 2 left!

0

24

Simplicity 1923325SM

CAPSCREW, Hex, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

25

Simplicity 1700802ASM

PIVOT BRACKET, R.H.

$55.99

$

Usually ships in 2-12 days

0

26

Simplicity 1700800SM

ROD, Hinge

$30.99

$

Usually ships in 2-12 days

0

27

Simplicity 1679914SM

V-BELT (48.7")
(Superseded to 1734012SM)

$40.99

$

Usually ships in 2-12 days

0

28

Simplicity 1709335SM

PULLEY ASSY.
(Superseded to 1709335ASM)

$148.99

$

Usually ships in 2-12 days

0

29

Simplicity 1927120SM

CAPSCREW, Hex, 7/16-14 x 2-1/4

$6.99

$

Usually ships in 2-12 days

0

30

Simplicity 922121

SCREW, Round Hd., #10-32 x 3/8

$

$

Not available

31

Simplicity 1700013SM

COVER, L.H.
(Superseded to 1700013AYP)

$98.99

$

Usually ships in 2-12 days

0

32

Simplicity 1933741SM

SPEED NUT, #10

$3.49

$

Usually ships in 2-12 days

0

33

Simplicity 1709328SM

COVER, L.H.

$42.99

$

Usually ships in 2-12 days

0

34

Simplicity 1674020SM

PLUG, Mower Cover

$4.49

$

In Stock, Qty 7

0

35

Simplicity 1709327SM

BRACKET, Support

$69.99

$

Usually ships in 2-12 days

0

36

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

37

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

38

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

40

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1677651SM

BRACE, Bracket Support

$48.99

$

Usually ships in 2-12 days

0

42

Simplicity 1960170SM

WASHER, Plain, 1/2 x 1 x 1-3/64
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

43

Simplicity 1677157CSM

DEFLECTOR ASSY.

$135.99

$

Usually ships in 2-12 days

0

44

Simplicity 1677261ASM

STONE GUARD

$148.99

$

Usually ships in 2-12 days

0

45

Simplicity 1708067SM

"U" BRACKET

$

$

Not available

46

Simplicity 1709324SM

ADAPTER, "U" Bracket

$

$

Not available

47

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

48

Simplicity 1960335

NUT, Hex, Esna Lock, 1/2-13

$

$

Not available

49

Simplicity 2155037SM

PIN, Round Hd., 7/16 X 1-3/4

$12.99

$

In Stock, only 1 left!

0

50

Simplicity 1960033SM

CLIP, Hairpin

$3.49

$

In Stock, Qty 20+

0

51

Simplicity 1960064SM

PIN, Yoke, 1/2 x 1-7/8
(Superseded to 7012751YP)

$

$

Not available

52

Simplicity 1669565SM

SPACER, 1/2 I.D. x 3/4 O.D. x 11/16

$23.99

$

Usually ships in 2-12 days

0

53

Simplicity 2176012SM

CLIP, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

54

Simplicity 1929000SM

SCREW, Hex, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

54

Simplicity 1918452SM

COTTER PIN, 1/8 x 1 (For bail arm pivot pins)
(Superseded to 703795)

Note: Not Shown

$5.99

$

In Stock, only 1 left!

0
