1692198 - Simplicity Coronet 34" Rear-Engine Riding Mower, 12.5hp 34" Mower Deck-Drive & Arbors Parts Diagram

Coronet 34" Rear-Engine Riding Mower, 12.5hp

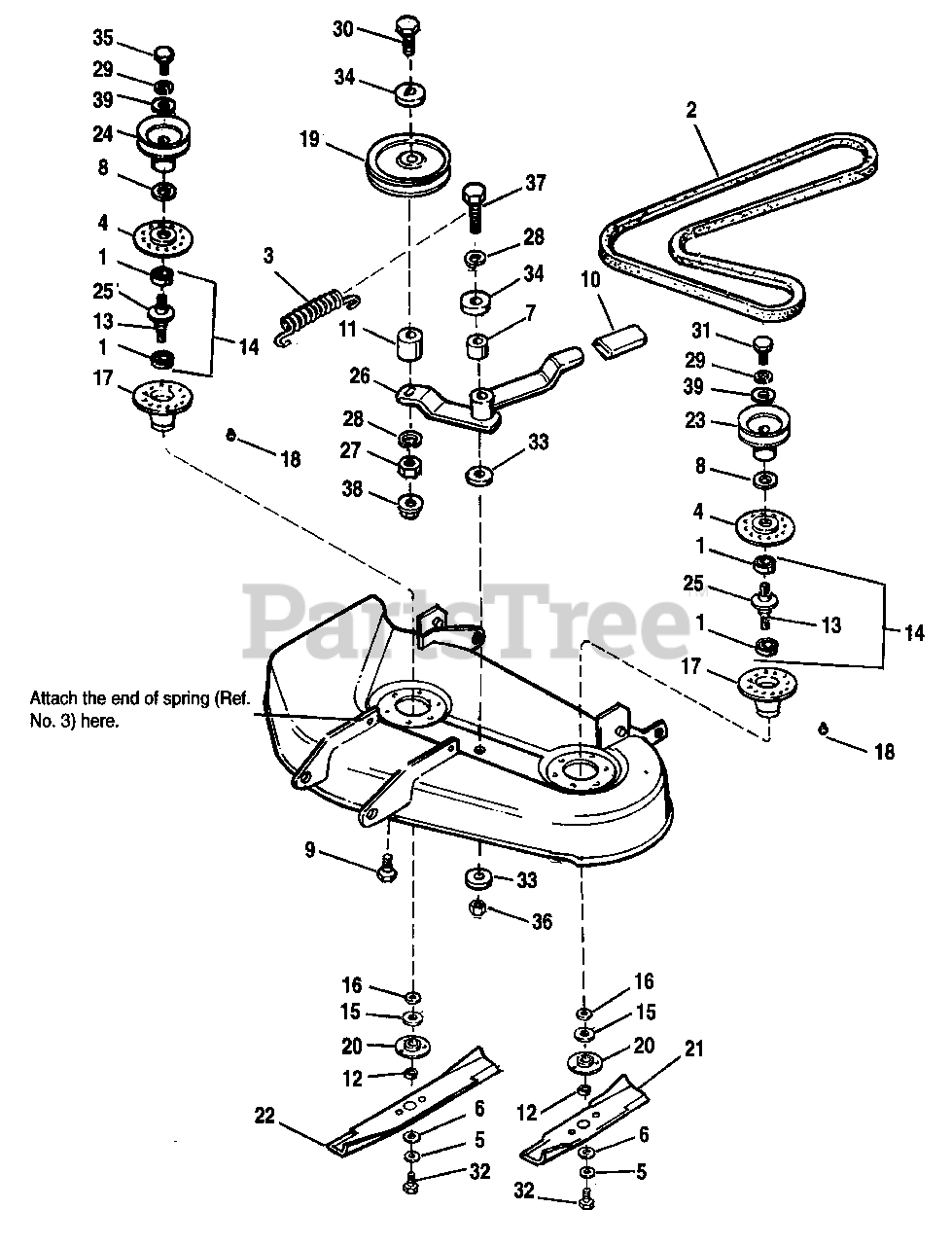

34" Mower Deck-Drive & Arbors Parts Diagram

  • Title

1

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

2

Simplicity 2108209

V-BELT, 82-7/64"

$

$

Not available

3

Simplicity 2164213SM

SPRING

$32.99

$

Usually ships in 2-12 days

0

4

Simplicity 1655729ASM

COVER, Arbor Housing

$14.99

$

Usually ships in 2-12 days

0

5

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

6

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

7

Simplicity 1657242SM

SPACER

$10.99

$

In Stock, Qty 10

0

8

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

9

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1665835

GRIP, Lever
(Superseded to 1665835YP)

$7.49

$

Usually ships in 2-12 days

0

11

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

12

Simplicity 1672132SM

COLLAR, Mower Arbor

$12.99

$

In Stock, Qty 5

0

13

Simplicity 1685245SM

SHAFT, Arbor

$74.99

$

In Stock, Qty 7

0

14

Simplicity 1685251SM

SHAFT & BEARING ASSY., (Incl. Ref. Nos. 1 & 13)

$99.99

$

In Stock, Qty 13

0

15

Simplicity 1700229SM

SHIELD, Grass, Bottom

$10.99

$

In Stock, Qty 20+

0

16

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

17

Simplicity 1703273ASM

ARBOR HOUSING ASSY. (Incl. Ref. No. 18)

$38.99

$

In Stock, Qty 20+

0

18

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 1704926SM

IDLER, Backside

$38.99

$

In Stock, only 3 left!

0

20

Simplicity 1705010SM

ADAPTOR, Blade

$27.99

$

In Stock, only 1 left!

0

21

Simplicity 1706737ASM

BLADE, Mower, Small (14-27/64")
(Superseded to 1706737BMYP)

$25.99

$

In Stock, only 3 left!

0

22

Simplicity 1706738ASM

BLADE, Mower, Large (19-3/16")

$27.99

$

Usually ships in 2-12 days

0

23

Simplicity 1707310SM

PULLEY ASSY., Small Blade

$

$

Not available

24

Simplicity 1707323SM

PULLEY ASSY., Large Blade
(Superseded to 1707323ASM)

$116.99

$

Usually ships in 2-12 days

0

25

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

26

Simplicity 1708561SM

LEVER ASSY.

$47.99

$

Usually ships in 2-12 days

0

27

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

29

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1921972SM

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

31

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4, Gr. 8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1, Gr. 8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1924356SM

WASHER, Flat, 3/8 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

34

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1927531SM

CAPSCREW, Hex Hd., 7/16-14 x 2, Gr. 8

$5.49

$

In Stock, Qty 5

0

36

Simplicity 1928352SM

NUT, Hex, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

37

Simplicity 1928957SM

CAPSCREW, Hex Hd., 3/8-16 x 2-3/4

$6.49

$

In Stock, only 2 left!

0

38

Simplicity 1930645SM

NUT, Hex, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

39

Simplicity 1933263SM

WASHER
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0
