1692171 - Simplicity Coronet 34" Rear-Engine Riding Mower, 12.5hp Hydro Transmission, Drive & Brake Group 2 Parts Diagram

Coronet 34" Rear-Engine Riding Mower, 12.5hp

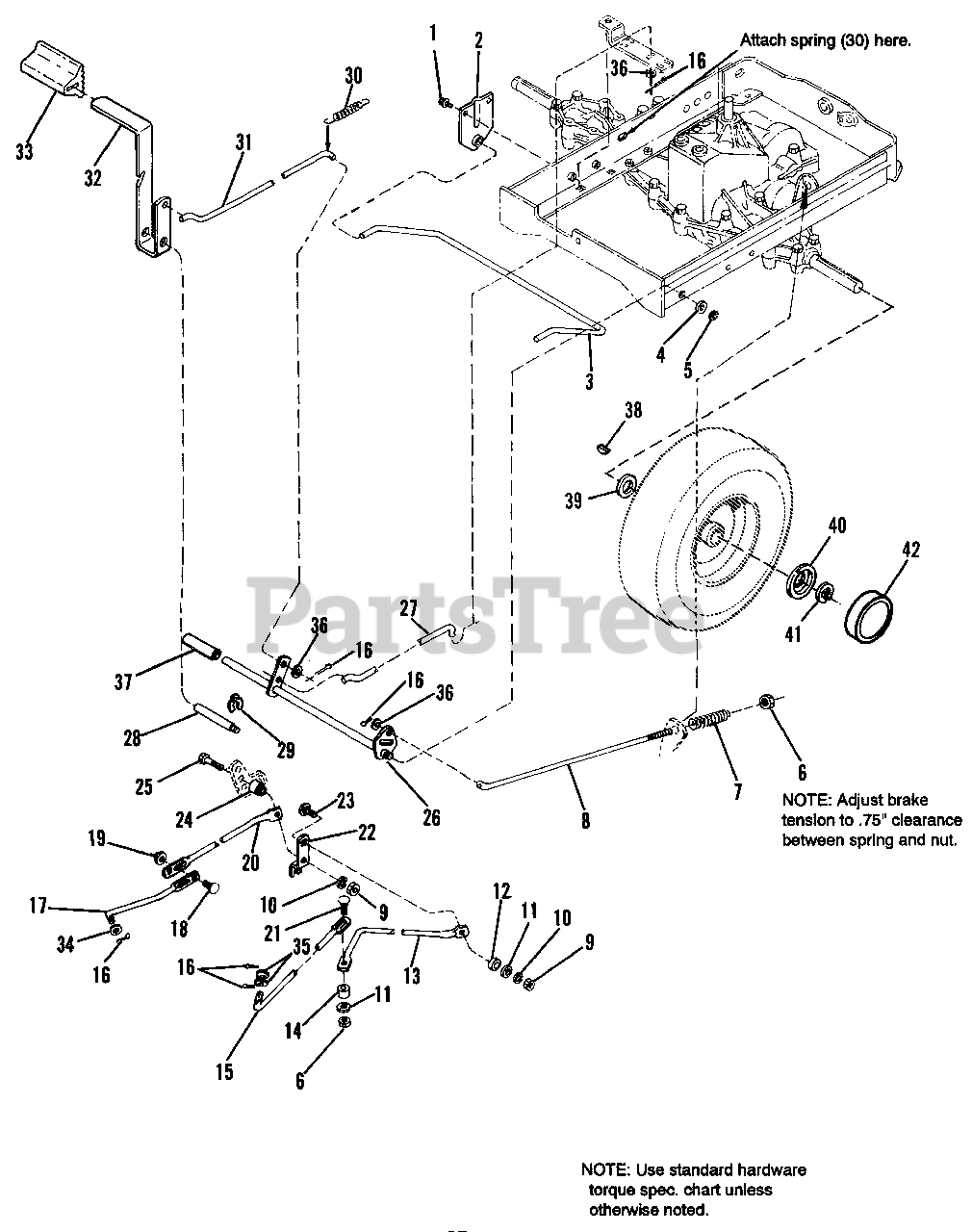

Hydro Transmission, Drive & Brake Group 2 Parts Diagram

  • Title

1

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

2

Simplicity 1708367SM

BRACKET, Torsion Bar

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1708366SM

TORSION BAR

$29.99

$

Usually ships in 2-12 days

0

4

Simplicity 1924361SM

WASHER, Plain
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1703805SM

KLIPRING, 1/2

$3.49

$

In Stock, Qty 12

0

6

Simplicity 1919438SM

NUT, Hex, Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1709097SM

SPRING, Compression

$92.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709224SM

ROD, Brake

$9.49

$

Usually ships in 2-12 days

0

9

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

13

Simplicity 1709223SM

ROD, Control

$20.99

$

Usually ships in 2-12 days

0

14

Simplicity 1666697SM

SPACER

Note: Used on early models only.

$6.49

$

In Stock, only 2 left!

0

15

Simplicity 1709228SM

ROD, Shift, Front

$25.99

$

Usually ships in 2-12 days

0

16

Simplicity 1918447SM

COTTER PIN, 7/64 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1709217SM

ROD, Return, Front

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 2 left!

0

19

Simplicity 1930641SM

NUT, Hex, Flange Whiz, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1709244SM

ROD, Return, Rear

$15.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

22

Simplicity 1709226SM

LEVER, Control
(Superseded to 1709226ASM)

$6.49

$

Usually ships in 2-12 days

0

23

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

24

Simplicity 1709227SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

25

Simplicity 1922127SM

CAPSCREW, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 1709231SM

PIVOT SHAFT ASSY.

$38.99

$

In Stock, only 1 left!

0

27

Simplicity 1709220SM

ROD, Clutch, Rear

$9.99

$

Usually ships in 2-12 days

0

28

Simplicity 1708409SM

PIVOT, Brake

$12.99

$

In Stock, only 1 left!

0

29

Simplicity 1708554SM

KLIPRING, 3/4

$2.99

$

In Stock, only 1 left!

0

30

Simplicity 2159106SM

SPRING, Return
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

31

Simplicity 1706260SM

ROD, Clutch, Front

$16.99

$

Usually ships in 2-12 days

0

32

Simplicity 1723348

LEVER, Clutch
(Superseded to 1723348ASM)

$17.99

$

Usually ships in 2-12 days

0

33

Snapper 1704849SM

PAD, Pedal

$

$

Not available

34

Simplicity 1924940SM

WASHER, Plain, 13/32 x 7/8 x 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1924359SM

WASHER, Plain, 1/2 x 1 x 1/32

$2.49

$

Usually ships in 2-12 days

0

36

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 6

0

37

Simplicity 1709850SM

TUBE

$6.49

$

Usually ships in 2-12 days

0

38

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

39

Simplicity 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1701435SM

RETAINER, Hubcap

$13.99

$

In Stock, only 1 left!

0

41

Simplicity 2827794SM

E-RING

$3.49

$

In Stock, Qty 16

0

42

Simplicity 1676519SM

HUBCAP

$8.49

$

In Stock, Qty 20+
