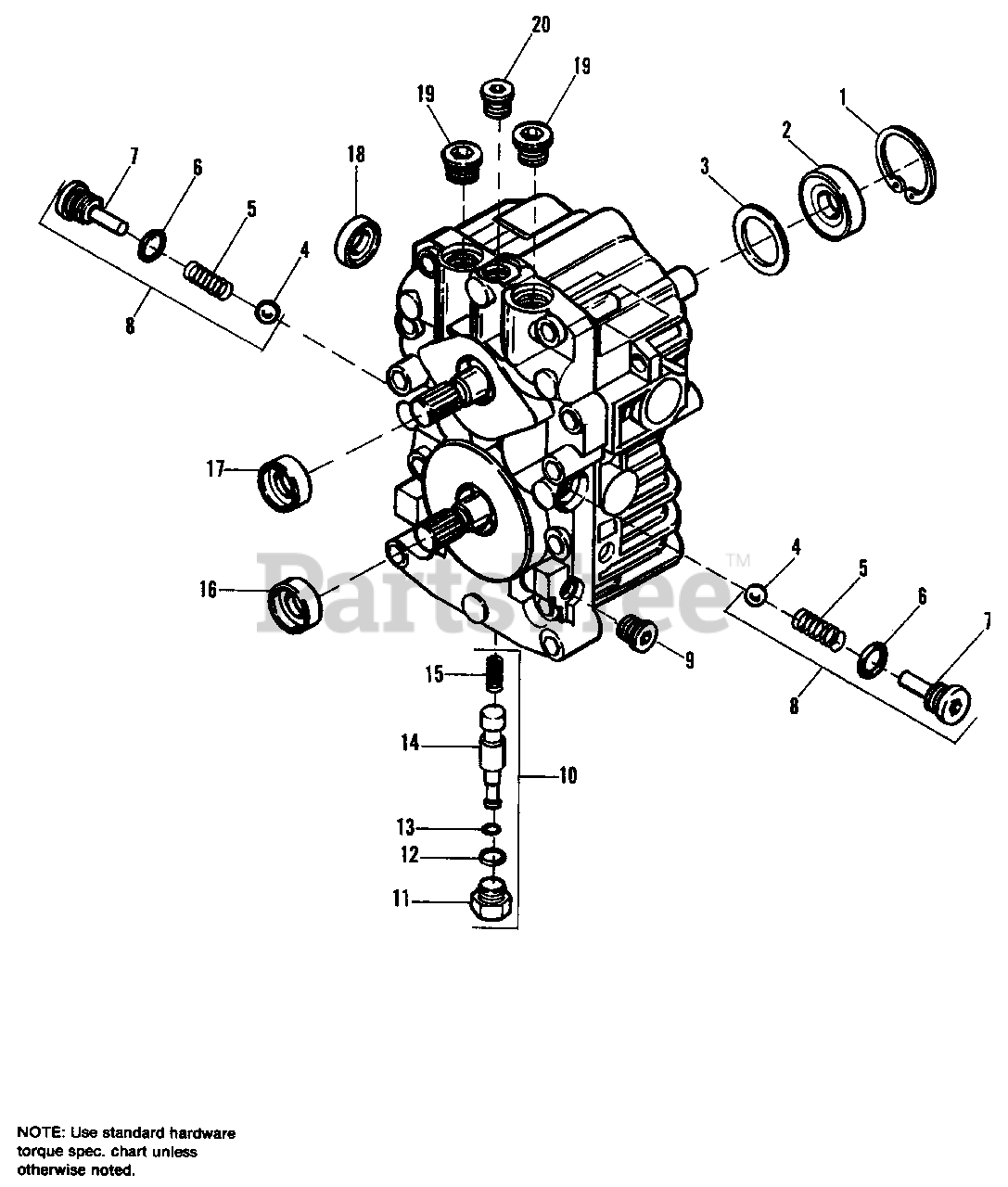

1692156 - Simplicity Regent Lawn Tractor, 12hp Hydro Pump Service Parts - Sunstrand Model BDU-10S-114 Parts Diagram

Regent Lawn Tractor, 12hp

Hydro Pump Service Parts - Sunstrand Model BDU-10S-114 Parts Diagram

  • Title

1

Simplicity 1706174SM

RETAINING RING

Note: The indicated parts are included in the Overhaul Seal Kit 1706192.

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 1706173SM

LIP SEAL

Note: The indicated parts are included in the Overhaul Seal Kit 1706192.

$8.99

$

In Stock, only 1 left!

0

3

Simplicity 1706172SM

SPACER

Note: The indicated parts are included in the Overhaul Seal Kit 1706192.

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1706184SM

BALL

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 1706185SM

SPRING

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 1706183SM

O-RING (.078 x .468)

Note: The indicated parts are included in the Overhaul Seal Kit 1706192.

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1706182SM

CHECK VALVE PLUG

$31.99

$

Usually ships in 2-12 days

0

8

Simplicity 1706181SM

CHECK VALVE KIT (Incl. Ref. Nos. 4-7)

$

$

Not available

9

Simplicity 1706176SM

PIPE PLUG

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 1706186SM

BY PASS VALVE KIT (Incl. Ref. Nos. 11-15)

$103.99

$

Usually ships in 2-12 days

0

11

Simplicity 1706190SM

BY PASS PLUG

$27.99

$

Usually ships in 2-12 days

0

12

Simplicity 1706187SM

O-RING (.072 x .351)

Note: The indicated parts are included in the Overhaul Seal Kit 1706192.

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1706191SM

O-RING

Note: The indicated parts are included in the Overhaul Seal Kit 1706192.

$

$

Not available

14

Simplicity 1706189SM

BY PASS SPOOL

$62.99

$

Usually ships in 2-12 days

0

15

Simplicity 1706188SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

16

Simplicity 1706177SM

LIP SEAL, Motor

Note: The indicated parts are included in the Overhaul Seal Kit 1706192.

$6.99

$

Usually ships in 2-12 days

0

17

Simplicity 1706178SM

LIP SEAL, Pump

Note: The indicated parts are included in the Overhaul Seal Kit 1706192.

$6.49

$

Usually ships in 2-12 days

0

18

Simplicity 1709908SM

LIP SEAL

Note: The indicated parts are included in the Overhaul Seal Kit 1706192.

$8.99

$

Usually ships in 2-12 days

0

19

Simplicity 1706179SM

O-RING BOSS PLUG, 9/16-18 Str. Thd., Socket Hd.

$25.99

$

Usually ships in 2-12 days

0

20

Simplicity 1706180SM

O-RING BOSS PLUG, 7/16-20 Str. Thd., Socket Hd.

$14.99

$

Usually ships in 2-12 days

0
