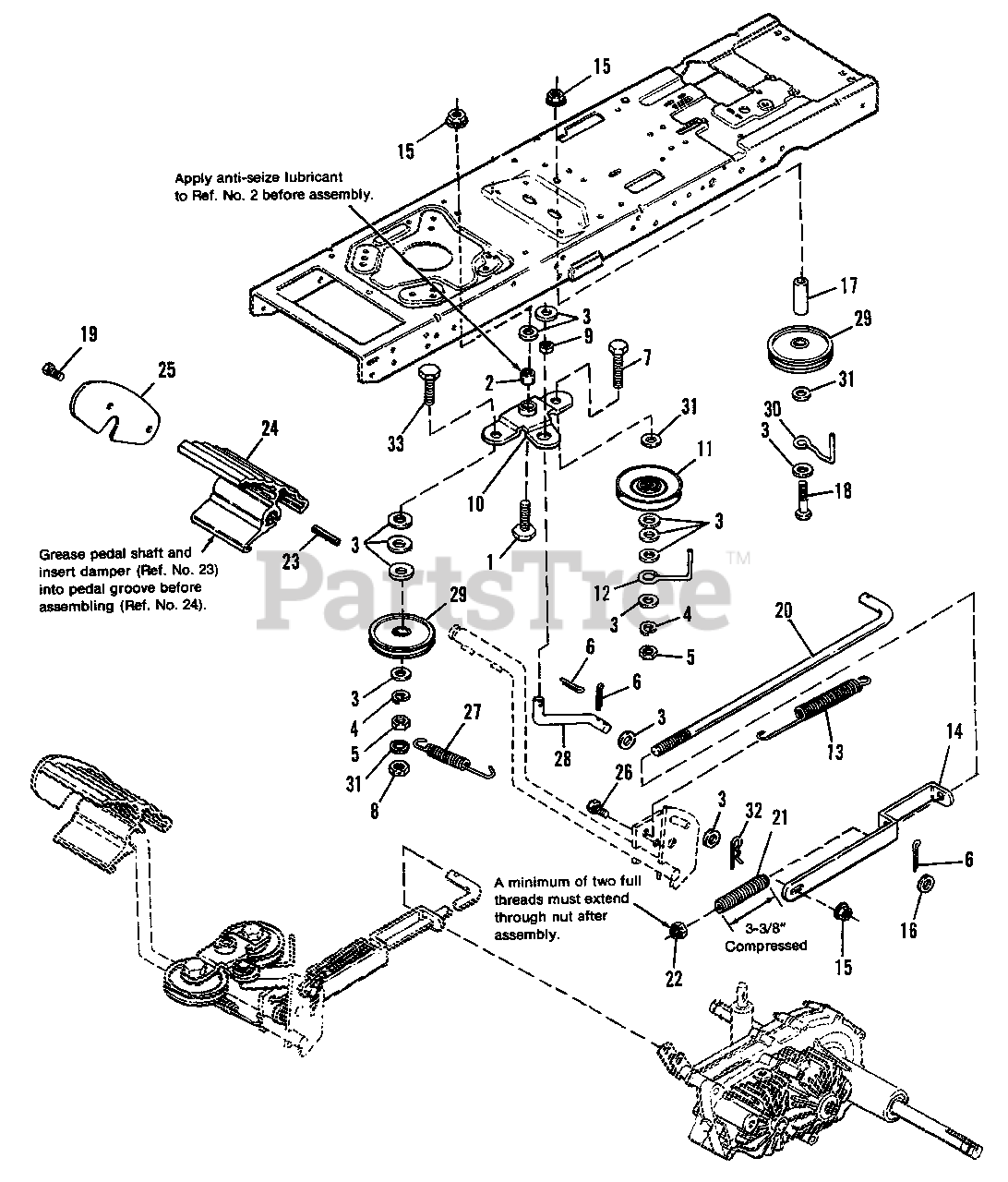

1692156 - Simplicity Regent Lawn Tractor, 12hp Hydro Brake & Clutch Group - Used With Hydro Gear/Agrifab MDL 219-1010S Parts Diagram

Regent Lawn Tractor, 12hp

Hydro Brake & Clutch Group - Used With Hydro Gear/Agrifab MDL 219-1010S Parts Diagram

  • Title

1

Simplicity 1960032SM

SCREW, Hex, 3/8 16 x 1-1/4, Thin Hd.

$5.49

$

In Stock, only 1 left!

0

2

Simplicity 1669999SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

3

Simplicity 1924940SM

WASHER, 13/32 x 7/8, 14 Ga.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

8

Simplicity 1960251SM

NUT, Hex, Lock, Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

9

Simplicity 1669255SM

BUSHING, Ball

$6.49

$

Usually ships in 2-12 days

0

10

Simplicity 1658953SM

ARM ASSY., Clutch

$

$

Not available

11

Simplicity 2174561SM

PULLEY, "V"

$53.99

$

Usually ships in 2-12 days

0

12

Simplicity 1656054SM

STOP, Belt

$

$

Not available

13

Simplicity 2159181SM

SPRING, Tension, Clutch

$7.49

$

In Stock, only 1 left!

0

14

Simplicity 1663138ASM

GUIDE, Rod

$131.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960339SM

NUT, Hex, Flange Lock, 3/8-16

$

$

Not available

16

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

17

Simplicity 2172452SM

SPACER

$20.99

$

Usually ships in 2-12 days

0

18

Simplicity 1923938SM

CAPSCREW, Hex, 3/8-16 x 3-1/2
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

19

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

20

Simplicity 1705818SM

ROD, Brake

$44.99

$

Usually ships in 2-12 days

0

21

Simplicity 1663136SM

SPRING

$12.99

$

Usually ships in 2-12 days

0

22

Simplicity 1919438SM

NUT, Hex, Esna, Jam, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1659907SM

DAMPER, Rubber

$5.49

$

In Stock, only 2 left!

0

24

Simplicity 1656852SM

PEDAL, Foot

$

$

Not available

25

Simplicity 1656854

PLATE, End

$

$

Not available

26

Simplicity 1921965SM

CAPSCREW, Hex, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 1700347SM

SPRING

$26.99

$

Usually ships in 2-12 days

0

28

Simplicity 1672120SM

LINK, Clutch Arm

$

$

Not available

29

Simplicity 1726348SM

PULLEY ASSY., Idler, Flat

$24.99

$

In Stock, only 4 left!

0

30

Simplicity 1706382

STOP, Belt

$

$

Not available

31

Simplicity 1922755SM

WASHER, 13/32 x 1, 10 Ga. Plain
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

32

Simplicity 1960074SM

CUP, Spring
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1923701SM

CAPSCREW, Hex Hd., 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0
