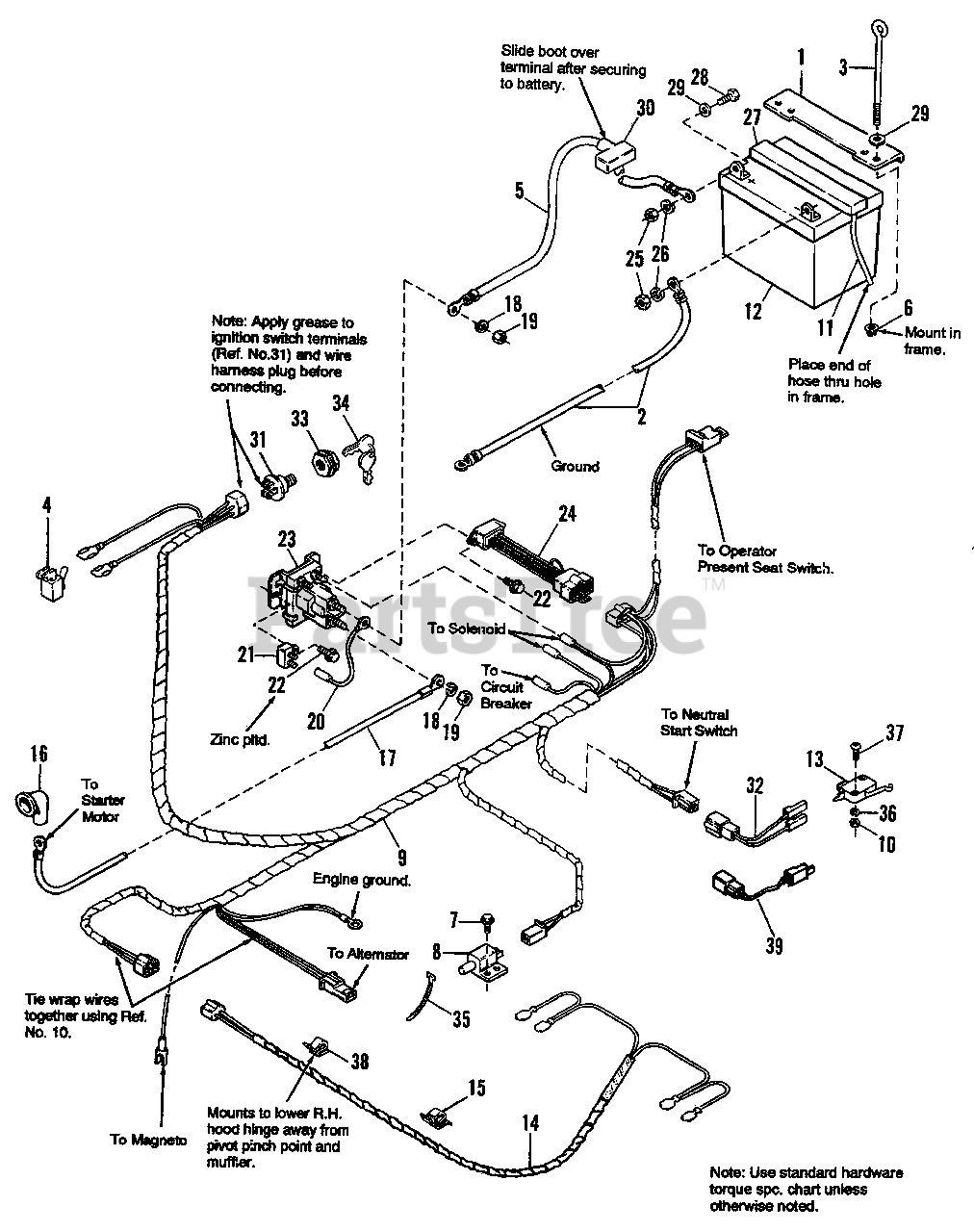

1692156 - Simplicity Regent Lawn Tractor, 12hp Electrical Group - Hydro Parts Diagram

Regent Lawn Tractor, 12hp

Electrical Group - Hydro Parts Diagram

  • Title

1

Simplicity 1718596

HOLD DOWN, Battery
(Superseded to 1718596ASM)

$36.99

$

Usually ships in 2-12 days

0

2

Simplicity 1703484SM

CABLE, Ground (Negative)

$

$

Not available

3

Simplicity 1700472SM

ROD, Battery Hold Down

$25.99

$

Usually ships in 2-12 days

0

4

Simplicity 2122184SM

SWITCH, Headlight

$22.99

$

Usually ships in 2-12 days

0

5

Simplicity 1603618SM

CABLE (Positive)

$11.99

$

In Stock, only 3 left!

0

6

Simplicity 1704349SM

NUT, Retainer, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1928477

SCREW, Taptite #10-24 x 1/2 (Mfg. Nos. 1692156, 1692164)

$

$

Not available

8

Simplicity 1701580SM

SWITCH, PTO

$21.99

$

Usually ships in 2-12 days

0

9

Simplicity 1707757SM

HARNESS, Wiring

$

$

Not available

10

Simplicity 1931003SM

NUT, Hex, #5-40 (Mfg. Nos. 1682156, 1692164)

$2.99

$

In Stock, only 1 left!

0

11

Simplicity 1704583SM

HOSE, Battery Drain

$2.99

$

Usually ships in 2-12 days

0

12

Simplicity 1685215SM

BATTERY

$

$

Not available

13

Simplicity 1686951SM

SWITCH, Transmission Interlock (Mfg. Nos. 1692156, 1692164)

$

$

Not available

13

Simplicity 1732004SM

SWITCH, Transmission Interlock (Mfg. Nos. 1692259, 1692263)

$8.99

$

In Stock, Qty 20+

0

14

Simplicity 1674358SM

WORE ASSY., Headlights

$35.99

$

In Stock, Qty 6

0

15

Simplicity 2165073SM

CUP, Wire

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

17

Simplicity 1701522SM

CABLE

$

$

Not available

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1665237SM

WIRE ASSY.

$11.99

$

In Stock, Qty 7

0

21

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

22

Simplicity 827429

SCREW, Taptite, 1/4-20 x 5/8, Zinc Pltd.

$

$

Not available

23

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

24

Simplicity 1707755SM

MODULE, Interlock, Seat Switch

$262.99

$

Usually ships in 2-12 days

0

25

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

27

Simplicity 1704581

VENT CAP, Battery

$

$

Not available

28

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

29

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1677296SM

BOOT, Insulator

$6.49

$

In Stock, Qty 10

0

31

Simplicity 1686734SM

SWITCH, Ignition

$32.99

$

In Stock, Qty 20+

0

32

Simplicity 1702323

ADAPTOR, Wire (Mfg. Nos.1692156, 1692164)

$

$

Not available

33

Simplicity 1704347SM

ADAPTOR NUT

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 1717163SM

KEYS

$8.99

$

In Stock, Qty 20+

0

35

Simplicity 2832747SM

TIE, Cable (Qty. 3 used on Mfg. Nos. 1692259, 1692283)

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1930947SM

LOCKWASHER, #5 (Mfg. Nos. 1692156, 1692164)

$3.49

$

In Stock, only 1 left!

0

37

Simplicity 1935031SM

SCREW, Phillips #5-40 x 3/4 (Mfg. Nos. 1692156, 1692164)

$2.99

$

Usually ships in 2-12 days

0

38

Simplicity 2830222

CUP, Wire

$

$

Not available

39

Simplicity 1709849

ADAPTOR, Wire (Mfg. Nos. 1692259, 1692263)

$

$

Not available
