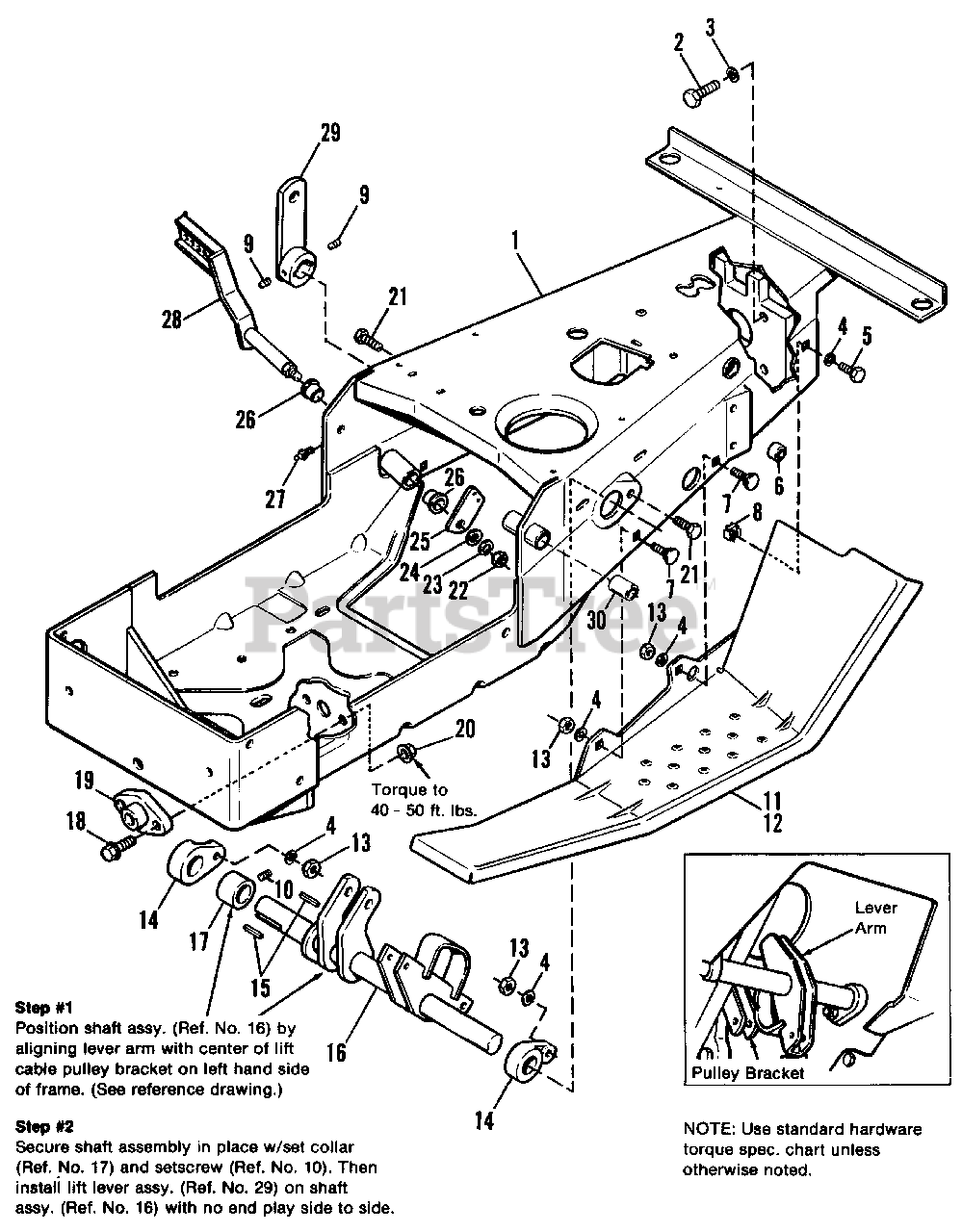

1692146 - Simplicity Sovereign 42" Garden Tractor, 18hp Frame & Footrest Group Parts Diagram

Sovereign 42" Garden Tractor, 18hp

Frame & Footrest Group Parts Diagram

  • Title

1

Simplicity 1708757

FRAME ASSY., w/Bushings

Note: Ref. No. 1 Includes Ref. Nos. 6, 27 & 30.

$

$

Not available

2

Simplicity 1921212SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

$

$

Not available

3

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

6

Simplicity 2174662SM

BUSHING

$58.99

$

Usually ships in 2-12 days

0

7

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2820470

NUT, Speed, 5/16-18

$

$

Not available

9

Simplicity 1928734SM

SETSCREW, 5/16-18 x 1/4
(Superseded to 704033)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 5

0

11

Simplicity 1665908SM

FOOTREST, L.H.
(Superseded to 1665908CSM)

$87.99

$

Usually ships in 2-12 days

0

12

Simplicity 1665909SM

FOOTREST, R.H.
(Superseded to 1665909CSM)

$87.99

$

Usually ships in 2-12 days

0

13

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2170975SM

BEARING, Lift Lever

$

$

Not available

15

Simplicity 2154096SM

KEY

$6.99

$

In Stock, only 2 left!

0

16

Simplicity 1667271SM

SHAFT ASSY., Lift (Hydro Lift)

$210.99

$

Usually ships in 2-12 days

0

17

Simplicity 2157624

COLLAR, Set

$

$

Not available

18

Simplicity 1928727SM

SCREW, Hex, Flange, Whiz, 3/8-16 x 1-1/4

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 1653876SM

BEARING, Pivot

$8.99

$

Usually ships in 2-12 days

0

20

Simplicity 1928352SM

LOCKNUT, Hex, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

21

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

22

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

24

Simplicity 1917328

WASHER, Plain, 3/8

$

$

Not available

25

Simplicity 2157300SM

ARM, Foot Pedal

$13.99

$

Usually ships in 2-12 days

0

26

Simplicity 1663114SM

BUSHING

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

28

Simplicity 1674137SM

PEDAL ASSY., Foot

$

$

Not available

29

Simplicity 2157625SM

LEVER ASSY., Front Lift

$233.99

$

Usually ships in 2-12 days

0

30

Simplicity 2158544SM

BEARING, lnterim Pinion

$

$

Not available
