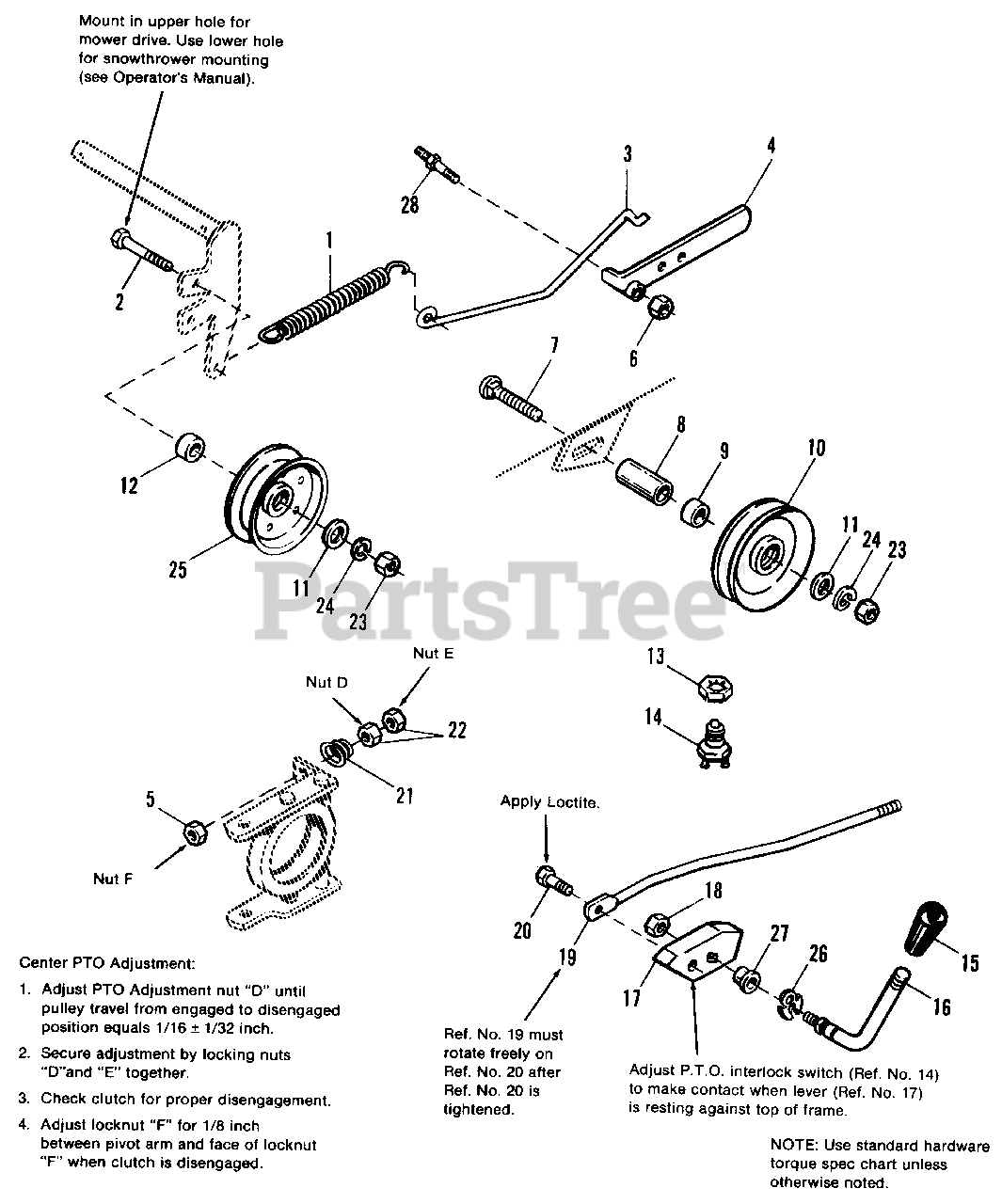

1692143 - Simplicity Sovereign Garden Tractor, 18hp PTO Control Group Parts Diagram

Sovereign Garden Tractor, 18hp

PTO Control Group Parts Diagram

  • Title

1

Simplicity 1715435SM

SPRING, Tension

$9.49

$

In Stock, Qty 20+

0

2

Simplicity 1923701SM

CAPSCREW, Hex Hd., 3/8-16 x 2
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1671424SM

ROD, Tension

$

$

Not available

4

Simplicity 2164155SM

HANDLE ASSY.

$102.99

$

Usually ships in 2-12 days

0

5

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1924058SM

LOCKNUT, Hex, 7/16-14

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 1931353SM

BOLT, Carriage, 3/8-16 x 1-3/4
(Superseded to 703858)

$4.99

$

In Stock, Qty 7

0

8

Simplicity 1667811SM

SPACER

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1665440SM

PULLEY ASSY., w/ Bearings

$

$

Not available

11

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

13

Simplicity 2830647SM

NUT, Pal

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 2177522SM

SWITCH, Interlock

$49.99

$

In Stock, Qty 9

0

15

Simplicity 1713843SM

KNOB, Soft

Note: Mtg. Nos. 1692143 & 1692144 order kit, part no. 1686648. Kit Includes Ref. Nos. 15, 16, 26 & 27.

$12.99

$

Usually ships in 2-12 days

0

16

Simplicity 1713854SM

HANDLE, PTO, Clutch

Note: Mtg. Nos. 1692143 & 1692144 order kit, part no. 1686648. Kit Includes Ref. Nos. 15, 16, 26 & 27.

$30.99

$

Usually ships in 2-12 days

0

17

Simplicity 2173991SM

LEVER

$

$

Not available

18

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Simplicity 1671323SM

ROD ASSY., Control

$142.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960072SM

CAPSCREW

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 2157127SM

SPRING

$

$

Not available

22

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

25

Simplicity 1606554SM

PULLEY, Idler

$

$

Not available

26

Simplicity 1703805SM

KLIPRING,1/2

Note: Mtg. Nos. 1692143 & 1692144 order kit, part no. 1686648. Kit Includes Ref. Nos. 15, 16, 26 & 27.

$3.49

$

In Stock, Qty 12

0

27

Simplicity 1704505SM

BUSHING

Note: Mtg. Nos. 1692143 & 1692144 order kit, part no. 1686648. Kit Includes Ref. Nos. 15, 16, 26 & 27.

$

$

Not available

28

Simplicity 2157273SM

STUD

$25.99

$

Usually ships in 2-12 days

0
