1692136 - Simplicity SunStar 60" Garden Tractor, 20hp Steering Unit Group, Power Parts Diagram

SunStar 60" Garden Tractor, 20hp

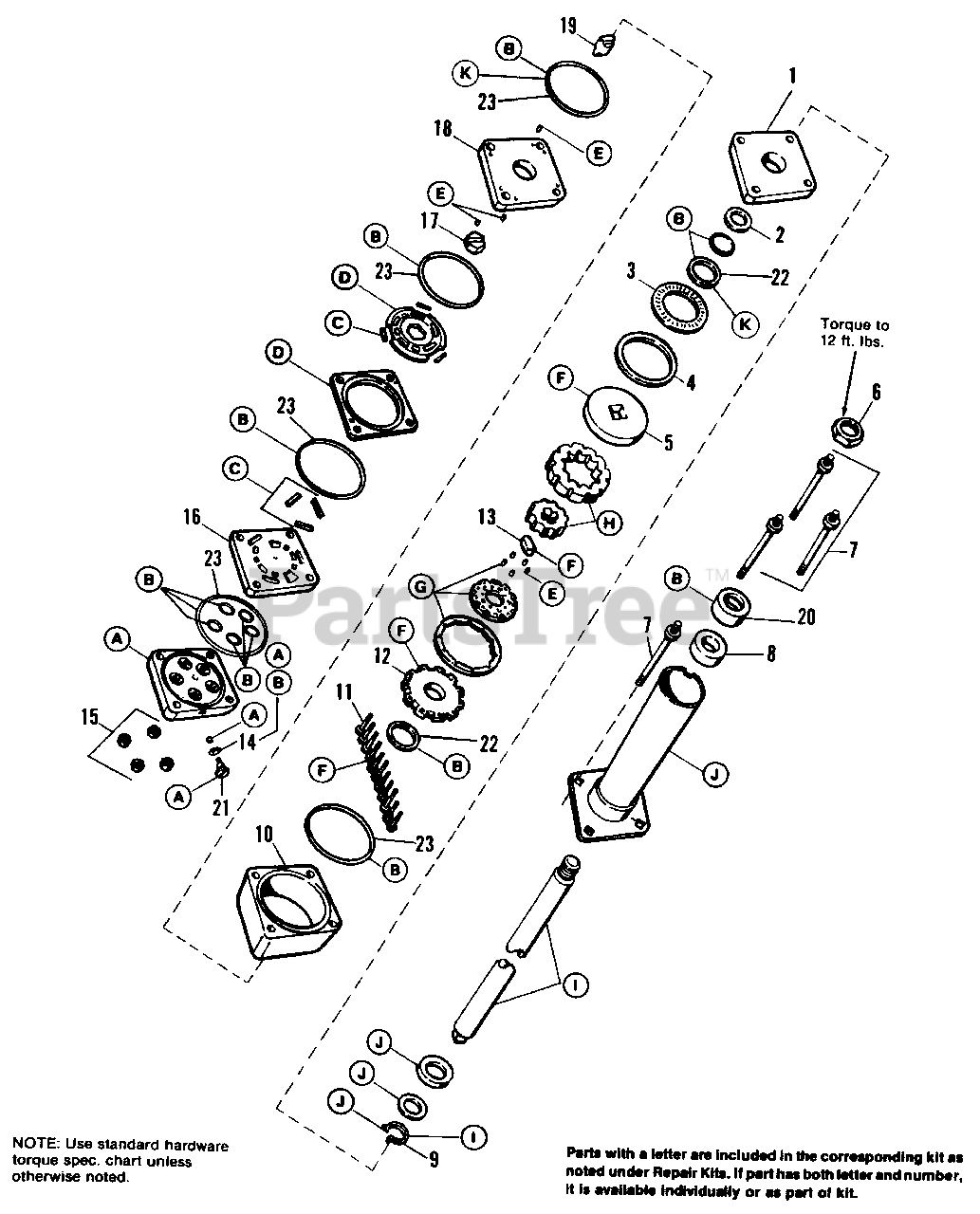

Steering Unit Group, Power Parts Diagram

  • Title

1

Simplicity 1679026SM

PLATE, UpperCover

$227.99

$

Usually ships in 2-12 days

0

2

Simplicity 1679027SM

SPACER, Seal

$16.99

$

Usually ships in 2-12 days

0

3

Simplicity 1679029SM

BEARING, Thrust

$19.99

$

Usually ships in 2-12 days

0

4

Simplicity 1679028SM

SPACER

$6.49

$

Usually ships in 2-12 days

0

5

Simplicity 1679031SM

PLATE, Drive

$296.99

$

Usually ships in 2-12 days

0

6

Simplicity 1679046SM

NUT, Hex, 5/8-18

$3.49

$

In Stock, only 1 left!

0

7

Simplicity 1679025SM

BOLT, Special

$20.99

$

Usually ships in 2-12 days

0

8

Simplicity 1679054SM

BEARING

$82.99

$

Usually ships in 2-12 days

0

9

Simplicity 1679024SM

RING, Retaining

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1679036SM

RING, Metering

$193.99

$

Usually ships in 2-12 days

0

11

Simplicity 1679032SM

CAPSCREW, Hex Hd.

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 1679033

COVER, Commutator

$

$

Not available

13

Simplicity 1679145SM

SPACER

$16.99

$

Usually ships in 2-12 days

0

14

Simplicity 1679043SM

"O" RING
(Superseded to 1679048SM)

$

$

Not available

15

Simplicity 2820263SM

LOCKNUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1679144SM

MANIFOLD, Port

$

$

Not available

17

Simplicity 1679040SM

DRIVE ASSY., Hex

$41.99

$

Usually ships in 2-12 days

0

18

Simplicity 1679037SM

MANIFOLD, Isolation

$188.99

$

Usually ships in 2-12 days

0

19

Simplicity 1679038SM

LINK, Drive

$85.99

$

Usually ships in 2-12 days

0

20

Simplicity 1679363SM

SEAL, Dust

$

$

Not available

21

Simplicity 1679364SM

PLUG

$8.99

$

Usually ships in 2-12 days

0

22

Simplicity 1707395SM

SEAL, (1 ea. in Kit K)

$85.99

$

Usually ships in 2-12 days

0

23

Simplicity 1707394SM

SEAL, (1 ea. in Kit K)

$4.99

$

Usually ships in 2-12 days

0

A

Simplicity 1678043SM

PORT COVER & CHECK VALVE ASSY.

Note: Repair Kits

$45.99

$

In Stock, Qty 20+

0

B

Simplicity 1679048SM

SEAL KIT

Note: Repair Kits

$

$

Not available

C

Simplicity 1679041SM

SPRING KIT

Note: Repair Kits

$18.99

$

Usually ships in 2-12 days

0

D

Simplicity 1679039SM

VALVE & RING KIT

Note: Repair Kits

$176.99

$

Usually ships in 2-12 days

0

E

Simplicity 1679047SM

NEEDLE ROLLER KIT

Note: Repair Kits

$1.99

$

Usually ships in 2-12 days

0

F

Simplicity 1679030SM

METERING ASSY. KIT

Note: Repair Kits

$854.99

$

Usually ships in 2-12 days

0

G

Simplicity 1679034SM

COMM. & RING ASSY. KIT

Note: Repair Kits

$193.99

$

Usually ships in 2-12 days

0

H

Simplicity 1679035SM

ROTOR ASSY. KIT

Note: Repair Kits

$319.99

$

Usually ships in 2-12 days

0

I

Simplicity 1679045SM

INPUT SHAFT ASSY. KIT

Note: Repair Kits

$95.99

$

Usually ships in 2-12 days

0

J

Simplicity 1679023SM

UPPER COVER ASSY. KIT

Note: Repair Kits

$

$

Not available

K

Simplicity 1685448SM

SEAL KIT (Contains Qty. 1 of Ref. No. 22 and Qty. 1 of Ref No. 23)
(Superseded to 1685448YP)

Note: Repair Kits Ref. No. K is for the top seal replacement in power stering unit-DO NOT disassemble the complete unit for this repair.

$97.99

$

Usually ships in 2-12 days

0
