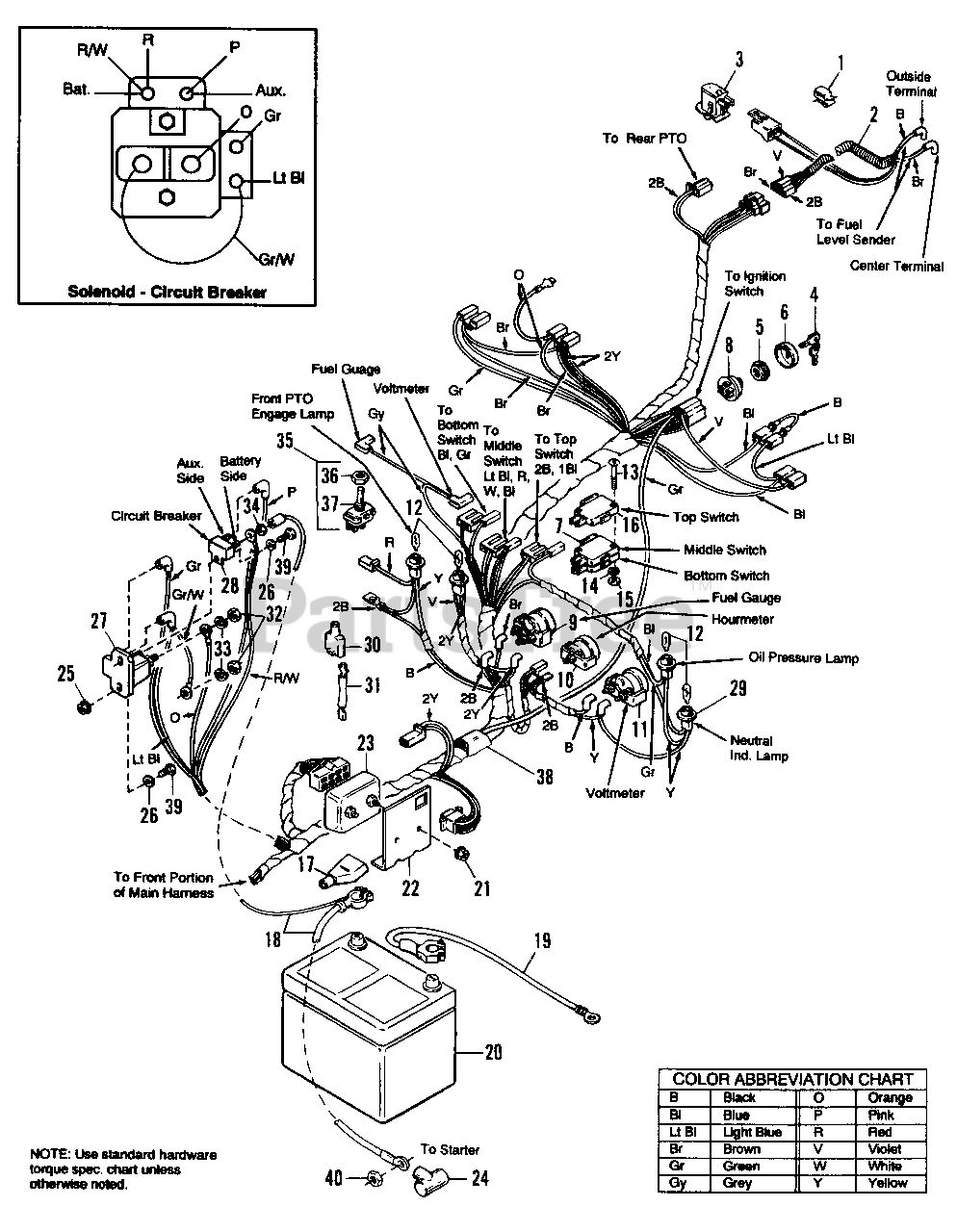

1692135 - Simplicity SunStar Garden Tractor, 20hp Main Wiring Harness Group Parts Diagram

SunStar Garden Tractor, 20hp

Main Wiring Harness Group Parts Diagram

  • Title

1

Simplicity 2172434SM

CLIP, Tinnerman

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1700994

HARNESS, Rear

$

$

Not available

3

Simplicity 1732004SM

SAFETY SWITCH (Seat), Operator Present

$8.99

$

In Stock, Qty 20+

0

4

Simplicity 1717163SM

KEY, Set

$8.99

$

In Stock, Qty 20+

0

5

Simplicity 1704347SM

NUT, Adaptor

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1704346SM

COVER, Ignition

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 1700160SM

DUAL INTERLOCK SWITCH
(Superseded to 1687330SM)

$

$

Not available

8

Simplicity 1708551SM

SWITCH
(Superseded to 1701256SM)

$

$

Not available

9

Simplicity 1674369SM

GAUGE, Fuel

$76.99

$

Usually ships in 2-12 days

0

10

Simplicity 1701525SM

HOUR METER

$

$

Not available

11

Simplicity 1676132SM

VOLTMETER

$119.99

$

Usually ships in 2-12 days

0

12

Simplicity 1676130SM

LAMP

$

$

Not available

13

Simplicity 1960014SM

SCREW, R.H., #5-24 x 1-1/2

$2.99

$

In Stock, only 2 left!

0

14

Simplicity 1930947SM

LOCKWASHER, #5

$3.49

$

In Stock, only 1 left!

0

15

Simplicity 1931003SM

NUT, Hex, #5-40

$2.99

$

In Stock, only 1 left!

0

16

Simplicity 1676123SM

SWITCH, Interlock (Under Dash) Shift Lever

$23.99

$

In Stock, only 1 left!

0

17

Simplicity 1713534SM

PROTECTOR, Battery (Red)

$5.99

$

Usually ships in 2-12 days

0

18

Simplicity 1708730SM

CABLE (Battery to Solenoid)

$

$

Not available

19

Simplicity 1714647SM

CABLE (Battery to Ground)

$

$

Not available

20

Simplicity 1685289SM

BATTERY (491 AMP Cold Crank Rating)

$

$

Not available

21

Simplicity 1960222SM

NUT, w/Washer, #8-32

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 1677479

BRACKET, Interlock, Mod.

$

$

Not available

23

Simplicity 1714715SM

INTERLOCK MODULE

$341.99

$

Usually ships in 2-12 days

0

24

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

25

Simplicity 1930641SM

NUT, Hex, Flange, Whizlock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1686981SM

SOLENOID (12 Volt DC)
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

28

Simplicity 1665238SM

BREAKER, Circuit

$14.99

$

In Stock, Qty 20+

0

29

Simplicity 1707389SM

BULB HOLDER

$8.99

$

Usually ships in 2-12 days

0

30

Simplicity 122182

CONNECTOR, 3 Way

$

$

Not available

31

Simplicity 1677484SM

WIRE ASSY., Diode

$

$

Not available

32

Simplicity 2820438SM

NUT, Hex, Jam, 5/16-24 Zinc Pltd.

$3.49

$

In Stock, only 2 left!

0

33

Simplicity 1917356SM

LOCKWASHER, 5/16, Zinc Pltd.
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1928919SM

NUT, Hex & Washer, #10-32

$3.99

$

In Stock, only 3 left!

0

35

Simplicity 1675800SM

SWITCH ASSY., PTO (incl. Ref. Nos. 36 & 37)

$64.99

$

Usually ships in 2-12 days

0

36

Simplicity 1677663

NUT, Special

$

$

Not available

37

SWITCH, PTO (See Ref. No. 35)

$

$

Not available

38

Simplicity 1708733

WIRING HARNESS (Main)

$

$

Not available

39

Simplicity 1923341SM

CAPSCREW, Hex Hd. 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

40

Simplicity 1960433SM

NUT, Hex Flange, M8-125

$2.99

$

Usually ships in 2-12 days

0
