1692133 - Simplicity SunStar Garden Tractor, 20hp Front PTO Group Parts Diagram

SunStar Garden Tractor, 20hp

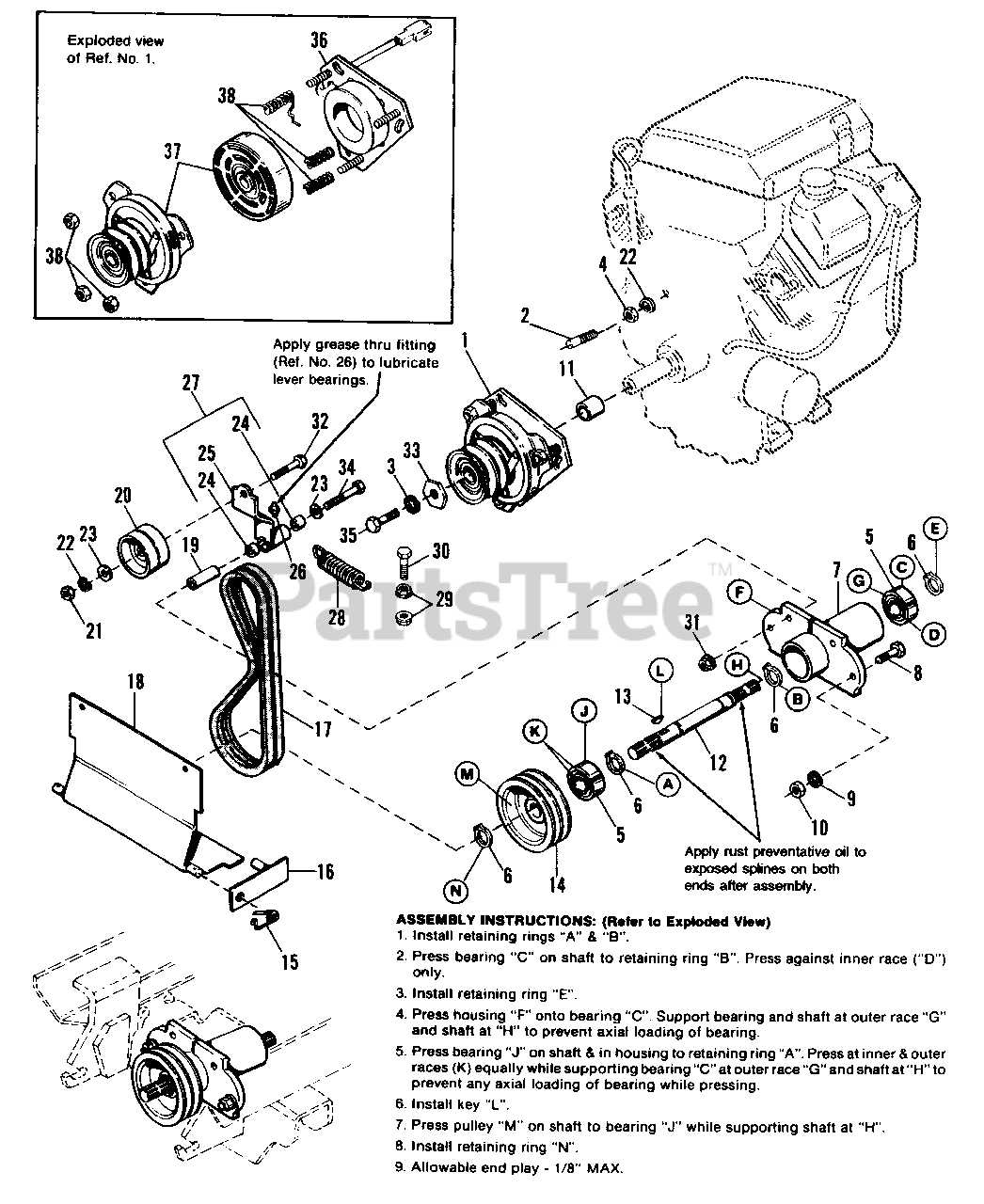

Front PTO Group Parts Diagram

  • Title

1

Simplicity 1686737SM

CLUTCH, Electric (Incl. Ref. Nos. 36, 37 & 38 )

$744.99

$

Usually ships in 2-12 days

0

2

Simplicity 1708526SM

STUD, Clutch, Torque

$

$

Not available

3

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1917421SM

NUT, Hex Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

5

Simplicity 2528126

BEARING, Ball, 1-3/16 x 2-7/16 x 5/8

$

$

Not available

6

Simplicity 2827742SM

RING
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

7

Simplicity 1674105SM

HOUSING & PLATE ASSY.

$

$

Not available

8

Simplicity 1921176SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4, Gr. 5

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 1916866

LOCKWASHER, 1/2

$

$

Not available

10

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

11

Simplicity 1708494SM

SPACER

$

$

Not available

12

Simplicity 1674103SM

SHAFT, Spline, PTO

$104.99

$

Usually ships in 2-12 days

0

13

Simplicity 2830671SM

KEY, Hi PRO, 1/4 x 3/4

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 1708523SM

PULLEY, PTO Drive

$83.99

$

Usually ships in 2-12 days

0

15

Simplicity 2176012SM

CLIP, Pin, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1676549ASM

LINK & PIN ASSY., Guard

$23.99

$

Usually ships in 2-12 days

0

17

Simplicity 1708529SM

BELT SET, PTO Drive (Matched Set of 2)

$54.99

$

In Stock, only 1 left!

0

18

Simplicity 1676546SM

GUARD ASSY.
(Superseded to 1676546ASM)

$69.99

$

Usually ships in 2-12 days

0

19

Simplicity 1676833SM

SPACER, 3/8 x 5/8 x 1-3/4

$27.99

$

Usually ships in 2-12 days

0

20

Simplicity 1674736SM

PULLEY, Idler, 3-1/4 Dia.

$55.99

$

Usually ships in 2-12 days

0

21

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

23

Simplicity 1924940SM

WASHER, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1675352SM

BUSHING, Idler Arm

$5.99

$

Usually ships in 2-12 days

0

25

IDLER ARM ASSY. (See Ref. No. 27)

$

$

Not available

26

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

27

Simplicity 1676B37

IDLER ARM ASSY. (Incl. Ref. Nos. 24 & 25)

$

$

Not available

28

Simplicity 1664661SM

SPRING, Tension

$

$

Not available

29

Simplicity 1931211SM

NUT, Hex, Flange Whizlock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

30

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

31

Simplicity 1930645SM

NUT, Hex, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

32

Simplicity 1923701SM

SCREW, Hex Hd., 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

33

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

34

Simplicity 1921972SM

SCREW, Hex Hd., 3/8-16 x 2-1/2, Gr. 5
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

35

Simplicity 1920594SM

SCREW, Hex Hd., 7/16-20 x 2.0, Gr. 5

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1686737SM

FIELD ASSEMBLY

Note: Repair Parts For Ref. No. 1.

$744.99

$

Usually ships in 2-12 days

0

37

Simplicity 1685490SM

ROTOR ASSEMBLY & ARMATURE ASSEMBLY KIT

Note: Repair Parts For Ref. No. 1.

$397.99

$

In Stock, only 1 left!

0

38

Simplicity 1707587SM

ACCESSORY KIT (Nut & Springs)

Note: Repair Parts For Ref. No. 1.

$9.99

$

Usually ships in 2-12 days

0
