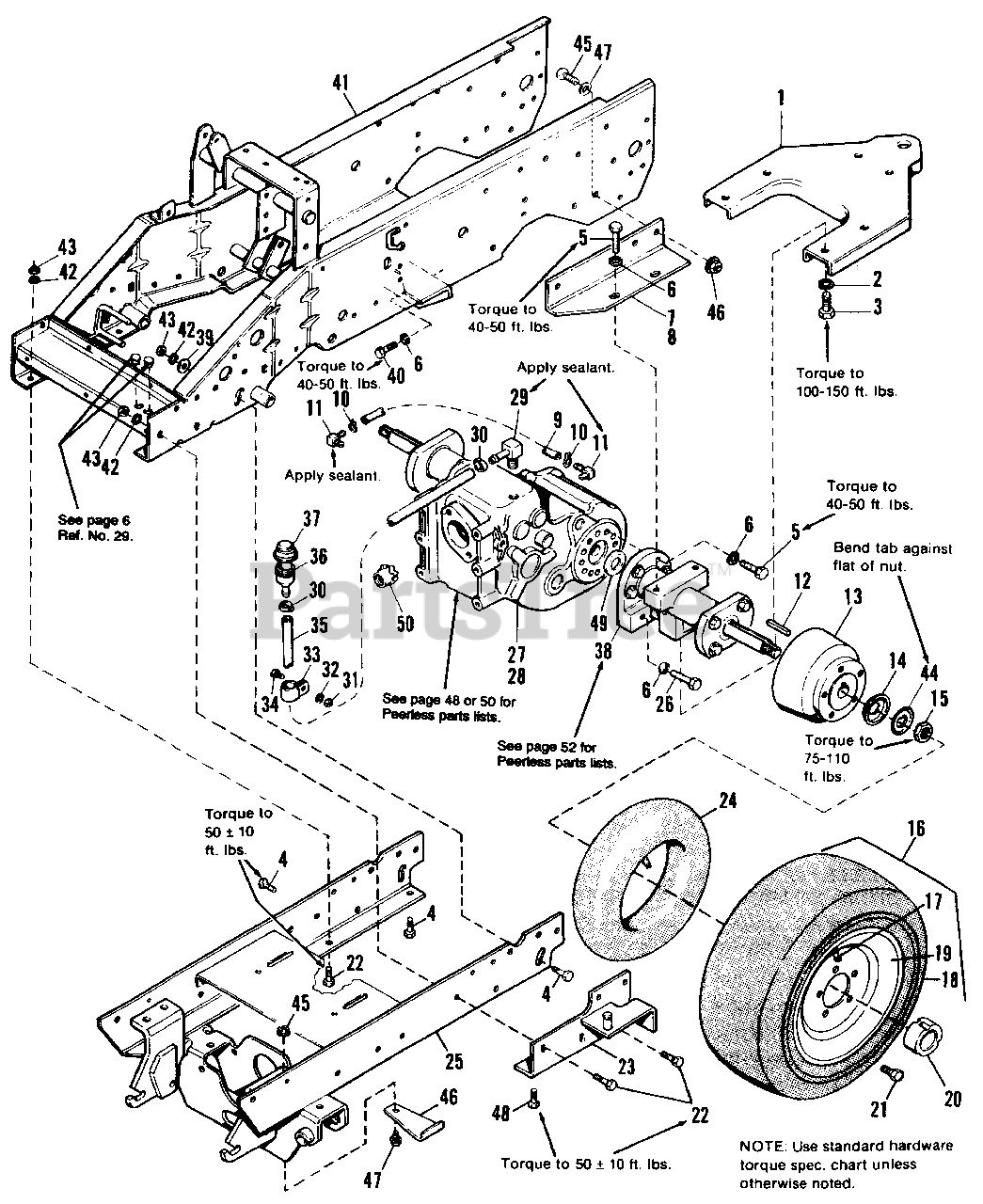

1692133 - Simplicity SunStar Garden Tractor, 20hp Frame, Transaxle & Drawbar Group Parts Diagram

SunStar Garden Tractor, 20hp

Frame, Transaxle & Drawbar Group Parts Diagram

  • Title

1

Simplicity 1674422SM

DRAWBAR

$28.99

$

Usually ships in 2-12 days

0

2

Simplicity 1917373SM

LOCKWASHER, 5/8"

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1923151SM

CAPSCREW, Hex Hd., 5/8-11 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1920676SM

CAPSCREW, Hex Hd., 7/16-14 x 1, Gr. 5

$5.49

$

In Stock, Qty 12

0

5

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

7

Simplicity 1674386SM

SUPPORT, Transmission, R.H.

$31.99

$

Usually ships in 2-12 days

0

8

Simplicity 1674387SM

SUPPORT, Transmission, L.H.

$34.99

$

Usually ships in 2-12 days

0

9

Simplicity 1675794SM

HOSE, Fluid Level

$

$

Not available

10

Simplicity 2829301SM

CLAMP, SAE #6

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1675793SM

FITTING, Elbow

$7.49

$

Usually ships in 2-12 days

0

12

Simplicity 2820456SM

KEY, 5/16 x 5/16 x 2-1/2

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 1676154SM

DRUM, Brake

$

$

Not available

14

Simplicity 1676520SM

RETAINER, Hub Cap

$10.99

$

In Stock, Qty 13

0

15

Simplicity 1960259SM

NUT, Hex, Jam Centerlock, 1-14

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1678797

WHEEL & TIRE ASSY., 23 x 10.5-12 (Beige)

Note: Includes Ref. Nos. 17-19.

$

$

Not available

16

Simplicity 1678793

WHEEL & TIRE ASSY., 23 x 10.5-12 (Silver)

$

$

Not available

16

Simplicity 1713531

WHEEL & TIRE ASSY., 26 x 12.00-12 (Beige)

$

$

Not available

16

Simplicity 1713531

WHEEL & TIRE ASSY., 26 x 12.00 12 (Silver))

$

$

Not available

17

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

18

Simplicity 1709969SM

TIRE, Turf, 23 x 10.5-12
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

18

Simplicity 1713532

TIRE, Turf, 26 x 12.00-12
(Superseded to 1725724SM)

$307.99

$

Usually ships in 2-12 days

0

19

Simplicity 2173430

WHEEL, 23" (Beige)

Note: Includes Ref. Nos. 17-19.

$

$

Not available

19

Simplicity 1709971SM

WHEEL, 23" (Silver)

$179.99

$

In Stock, only 2 left!

0

19

Simplicity 1709966SM

WHEEL, 26" (Beige)

$

$

Not available

19

Simplicity 1709966SM

WHEEL, 26" (Silver)

$

$

Not available

20

Simplicity 1676519SM

CAP, Hub

$8.49

$

In Stock, Qty 20+

0

21

Simplicity 1729280SM

BOLT, Hub

$6.49

$

In Stock, only 2 left!

0

22

Simplicity 1920677SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4, Gr. 5
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1685431

BRACKET ASSY., Power Steering Cylinder

$

$

Not available

24

Simplicity 2157638SM

TUBE, 23"

$86.99

$

In Stock, only 2 left!

0

24

Simplicity 2157638SM

TUBE, 26"

$86.99

$

In Stock, only 2 left!

0

25

Simplicity 170876

FRONT FRAME ASSY.

$

$

Not available

26

Simplicity 1921024SM

CAPSCREW, Hex Hd., 1/2-13 x 2
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

27

TRANSAXLE, Peerless, 2 Speed, 20 HP Only (See pages 46 & 47)

$

$

Not available

28

TRANSAXLE, Peerless, 1 Speed, 18 HP Only (See pages 48 & 49)

$

$

Not available

29

Simplicity 1676399

FITTING, Hose, 90ø

$

$

Not available

30

Simplicity 2860266SM

CLAMP, Hose

$7.49

$

Usually ships in 2-12 days

0

31

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

33

Simplicity 1676527SM

CLAMP, Insulated

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

35

Simplicity 1676402SM

HOSE, Fill, 1/2" I.D.

$41.99

$

Usually ships in 2-12 days

0

36

Simplicity 1676466SM

NECK, Filler

$

$

Not available

37

Simplicity 1676467SM

CAP, Filler
(Superseded to 7012155YP)

$9.49

$

In Stock, only 4 left!

0

38

AXLE, Housing Assy., Peerless (See page 50)

$

$

Not available

39

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1921176SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

41

Simplicity 1685395

FRAME ASSY., Rear

$

$

Not available

42

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 1918213SM

NUT, Hex, 7/16-14

$4.99

$

In Stock, only 2 left!

0

44

Simplicity 1679383SM

RETAINER NUT

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

46

Simplicity 1935041SM

NUT, Hex Flange, 7/16-14

$1.99

$

Usually ships in 2-12 days

0

47

Simplicity 1676435SM

WASHER, Plain

$8.49

$

Usually ships in 2-12 days

0

48

Simplicity 1921212SM

CAPSCREW, 7/16-14 x 1-1/2

$

$

Not available

49

Simplicity 1674417SM

SPACER, Axle

$13.99

$

Usually ships in 2-12 days

0

50

Simplicity 1674418SM

GEAR, Bevel

$37.99

$

Usually ships in 2-12 days

0
