1692132 - Simplicity SunStar 48" Garden Tractor, 18hp 48" Mower, Housing & Cover Group Parts Diagram

SunStar 48" Garden Tractor, 18hp

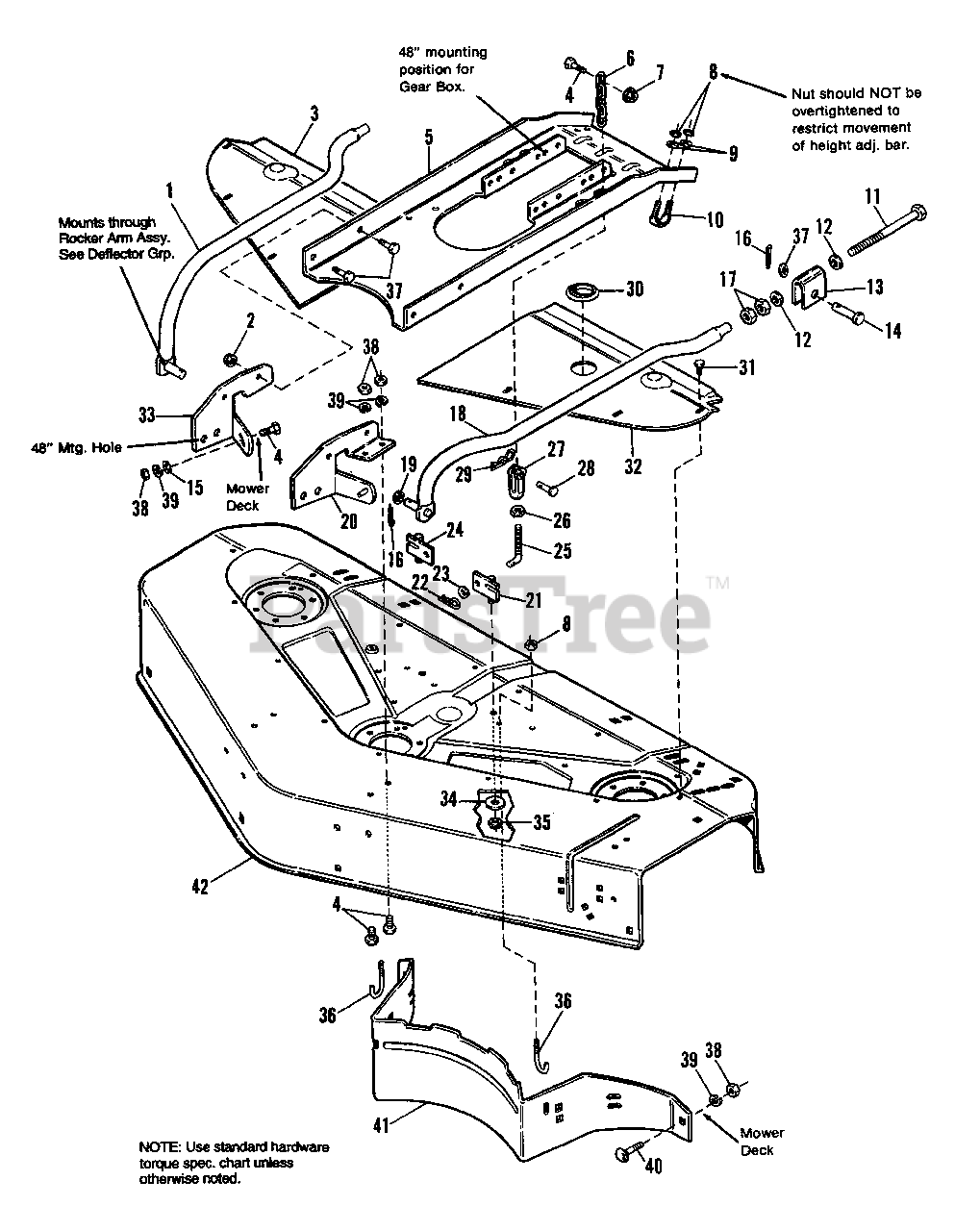

48" Mower, Housing & Cover Group Parts Diagram

  • Title

1

Simplicity 1677189SM

ARM ASSY., R.H.

$

$

Not available

2

Simplicity 1931211SM

NUT, Hex Whizlock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1679928C

COVER, Mower, R.H.
(Superseded to 1679928ASM)

$70.99

$

Usually ships in 2-12 days

0

4

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

5

Simplicity 1678101SM

SUPPORT, "U" Channel

$

$

Not available

6

Simplicity 2107031SM

CHAIN, 5 Link
(Superseded to 2107031ASM)

Note: (Used with 23" Tires)

$7.49

$

In Stock, only 2 left!

0

6

Simplicity 1708266ASM

CHAIN, 6 Link

Note: (Used with 26" Tires)

$9.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930645SM

NUT, Hex, Flange, Lock 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

9

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 5

0

10

Simplicity 1678623SM

U-BOLT, 1"

$11.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960150SM

CAPSCREW, Hex, 5/8-18 x 5-1/2

$14.99

$

Usually ships in 2-12 days

0

12

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1677182SM

TRUNNION
(Superseded to 1677182ASM)

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 1960064SM

PIN, Trunnion
(Superseded to 7012751YP)

$

$

Not available

15

Simplicity 1924940SM

WASHER, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1918452SM

PIN, Cotter, 1/8 x 1
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

17

Simplicity 1922014SM

NUT, Hex, Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

18

Simplicity 1677188SM

ARM ASSY., L.H.
(Superseded to 1677188ASM)

$95.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960020SM

WASHER,21/32

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1677353ASM

BRACKET ASSY., L.H.

$67.99

$

Usually ships in 2-12 days

0

21

Simplicity 1686676SM

BRACKET ASSY., Lift, L.H.

$

$

Not available

22

Simplicity 1960221SM

PIN, Hair, 1/16" Wire
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

23

Simplicity 1919326SM

WASHER, Plain, 5/16 x 3/4 x 1/16

$4.49

$

In Stock, Qty 5

0

24

Simplicity 1686676SM

BRACKET ASSY., Lift, R.H.

$

$

Not available

25

Simplicity 1686676SM

ROD, Bolt

$

$

Not available

26

Simplicity 1920161SM

NUT, Hex, Jam, 5/16-18

$4.49

$

In Stock, only 2 left!

0

27

Simplicity 1673575SM

CLEVIS, Lift

$

$

Not available

28

Simplicity 1655651SM

PIN, Clevis
(Superseded to 1733568SM)

$6.99

$

In Stock, only 2 left!

0

29

Simplicity 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1674020SM

PLUG, Mower Cover

$4.49

$

In Stock, Qty 7

0

31

Simplicity 1929000SM

SCREW, Hex, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

32

Simplicity 1679511C

COVER, Mower, L.H.

$

$

Not available

33

Simplicity 1677354SM

BRACKET ASSY., R.H.

$

$

Not available

34

Simplicity 1924356SM

WASHER, Plain, 13/32 x 1-1/2 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

35

Simplicity 1930645SM

NUT, Hex, Centerlock 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Simplicity 1679385SM

SCREW, Baffle Hook

$9.99

$

In Stock, only 2 left!

0

37

Simplicity 1921210SM

CAPSCREW, 3/8"
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

38

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

40

Simplicity 1931350SM

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

41

Simplicity 1674774ASM

BAFFLE, Mower

$

$

Not available

42

Simplicity 1685282SM

HOUSING, 48" Mower

Note: 1685282 is an orange deck, 71685282 is a green deck, 61685282 is a black deck

$1025.99

$

Usually ships in 2-12 days

0
