1692131 - Simplicity SunStar Garden Tractor, 18hp Transmission Control Group (18HP) Parts Diagram

SunStar Garden Tractor, 18hp

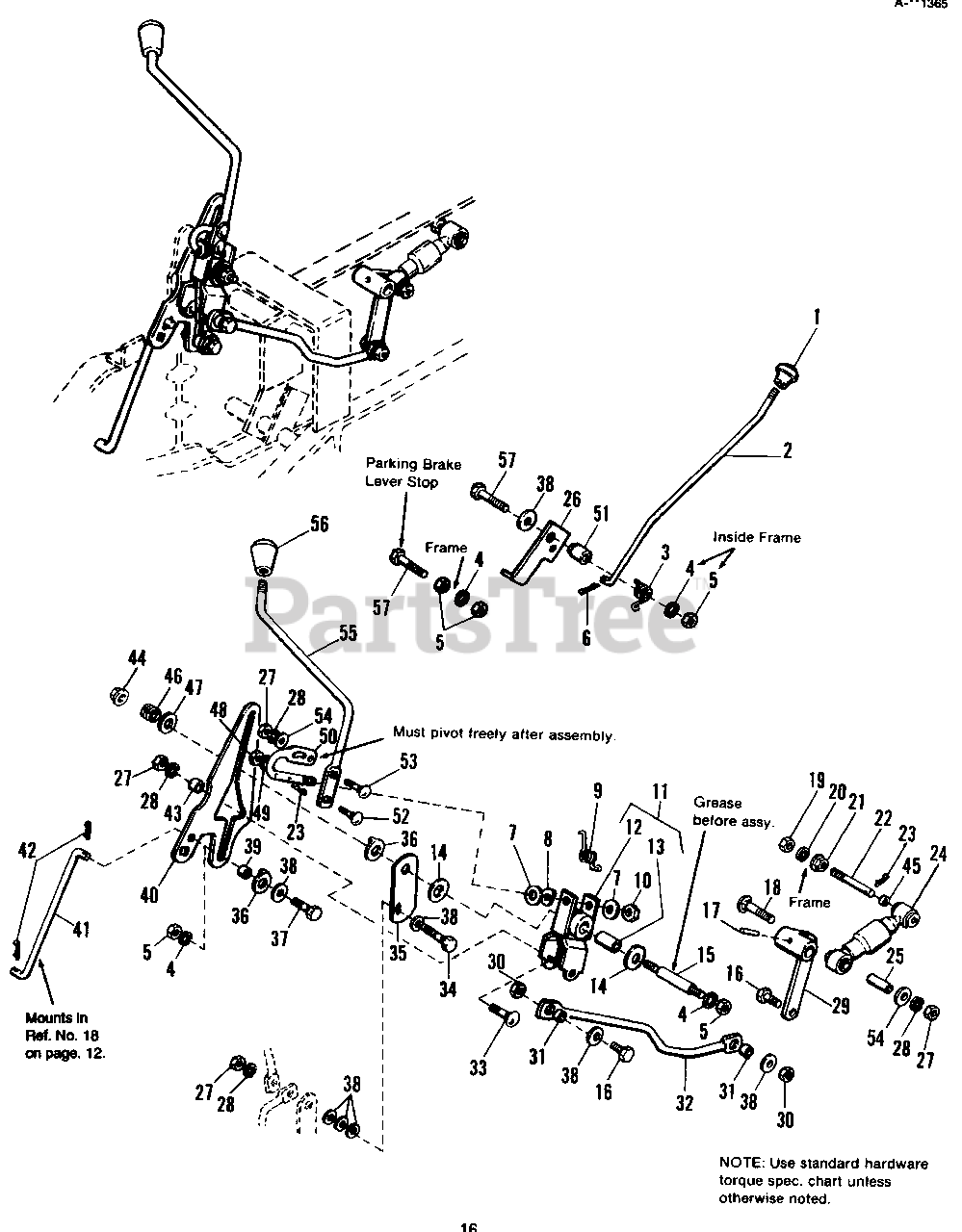

Transmission Control Group (18HP) Parts Diagram

  • Title

1

Simplicity 1676374SM

KNOB, Parking Brake

$

$

Not available

2

Simplicity 1676377SM

ROD, Parking Brake

$30.99

$

Usually ships in 2-12 days

0

3

Simplicity 1675492SM

SPRING, Torsion

$

$

Not available

4

Simplicity 1916985

LOCKWASHER, 3/8

$

$

Not available

5

Simplicity 1918950

NUT, Hex, 3/8-16

$

$

Not available

6

Simplicity 1923360SM

PIN, Cotter, 1/16 x 3/4
(Superseded to 703892)

$3.49

$

In Stock, only 1 left!

0

7

Simplicity 1924361SM

WASHER, Plain, 1/2 x 1-1/4 x 5/64
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1668681SM

WASHER, Curved, 1/2 x 1 x 1/64

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1676307SM

SPRING, Torsion

$28.99

$

In Stock, only 2 left!

0

10

Simplicity 1924650SM

NUT, Hex, Centerlock, Jam, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1676393SM

LEVER ASSY., Hyd. Control (Incl. Ref. Nos. 12 & 13)

$80.99

$

Usually ships in 2-12 days

0

12

LEVER ASSY., Hyd. Control

$

$

Not available

13

Simplicity 1674254

BEARING SLEEVE

$

$

Not available

14

Simplicity 1705928SM

DISC., Friction

$6.99

$

Usually ships in 2-12 days

0

15

Simplicity 1702518SM

SHAFT, Pivot

$28.99

$

Usually ships in 2-12 days

0

16

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 7/8
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

17

Simplicity 2816937SM

PIN, Spring, 1/4x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 1931338SM

BOLT, Carriage, 5/16-18 x 1-3/4
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 1918213SM

NUT, Hex, 7/16-14

$4.99

$

In Stock, only 2 left!

0

20

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1935041SM

NUT, Hex, Flange, Whizlock, 7/16-14

$1.99

$

Usually ships in 2-12 days

0

22

Simplicity 1676391SM

STUD

$

$

Not available

23

Simplicity 1918451SM

PIN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1675537SM

SHOCK ABSORBER (Speed Control)

$149.99

$

Usually ships in 2-12 days

0

25

Simplicity 1676392SM

SPACER

$3.49

$

Usually ships in 2-12 days

0

26

Simplicity 1679403SM

LEVER, Parking Brake

$23.99

$

Usually ships in 2-12 days

0

27

Simplicity 1917372SM

NUT, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1676316SM

LEVER ASSY., Control

$

$

Not available

30

Simplicity 1930645SM

NUT, Hex, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Simplicity 2108717SM

SPACER, Ratchet Cage

$17.99

$

In Stock, only 1 left!

0

32

Simplicity 1677069SM

ROD, Hydro Control

$43.99

$

In Stock, only 1 left!

0

33

Simplicity 1960223SM

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

34

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 1677757SM

BRACE, Hydro. Control

$

$

Not available

36

Simplicity 1674237SM

WASHER, Lug

$47.99

$

Usually ships in 2-12 days

0

37

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

38

Simplicity 1924940SM

WASHER, Plain, 13/32 x 7/8 x 5/64
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1960237SM

SPACER, 25/64 x 5/8 x 13/32

$4.99

$

Usually ships in 2-12 days

0

40

Simplicity 1674419

CAM PLATE, Hydro. Lever

$

$

Not available

41

Simplicity 1674732SM

ROD, Ground Speed Control

$16.99

$

Usually ships in 2-12 days

0

42

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 1675795SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

44

Simplicity 1960339SM

NUT, Hex Flange Lock, 3/8-16

$

$

Not available

45

Simplicity 157168

SPACER

$

$

Not available

46

Simplicity 1677746SM

SPRING, Compression

$7.99

$

Usually ships in 2-12 days

0

47

Simplicity 1960020SM

WASHER, Plain, 21/32 I.D.

$4.49

$

In Stock, Qty 20+

0

48

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

50

Simplicity 1678837SM

ROD HYDRO., Control

$

$

Not available

51

Simplicity 1676375

SPACER, Parking Brake

$

$

Not available

52

Simplicity 1931320SM

BOLT, Carriage, 1/4-20 x 1-1/4
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

53

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

54

Simplicity 1919326SM

WASHER, Plain, 11/32 x 3/4 x 1/16

$4.49

$

In Stock, Qty 5

0

55

Simplicity 1686632SM

LEVER, Speed Control

$

$

Not available

56

Simplicity 1676743SM

KNOB, Speed Control

$19.99

$

Usually ships in 2-12 days

0

57

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0
