1692130 - Simplicity Coronet Rear-Engine Riding Mower, 12.5hp Hydro Transmission, Drive & Brake Group 3 Parts Diagram

Coronet Rear-Engine Riding Mower, 12.5hp

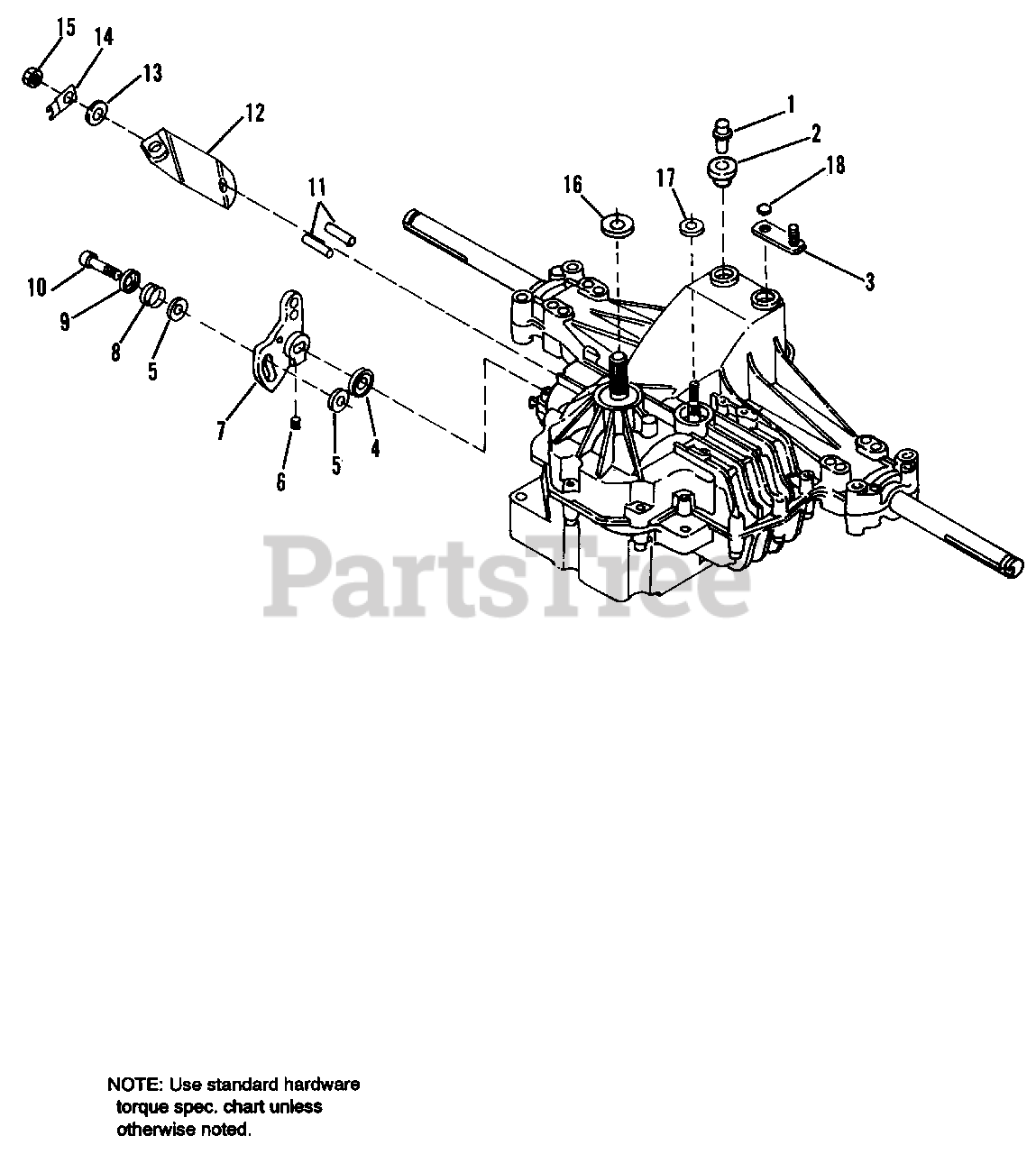

Hydro Transmission, Drive & Brake Group 3 Parts Diagram

  • Title

1

Simplicity 1709905SM

BREATHER ASSY.

$6.99

$

Usually ships in 2-12 days

0

2

Simplicity 1654930SM

BUSHING, Rubber

$7.99

$

In Stock, Qty 20+

0

3

Simplicity 170907

ARM, Bypass

$

$

Not available

4

Simplicity 1709908SM

SEAL

$8.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709909SM

PUCK, Dampener

$6.49

$

Usually ships in 2-12 days

0

6

Simplicity 1709910SM

SET SCREW

$6.99

$

Usually ships in 2-12 days

0

7

Simplicity 1709911SM

ARM, Control

$21.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709912SM

SPRING

$10.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709913SM

CUP WASHER

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 1709914SM

SCREW, Soc. Hd.

$14.99

$

Usually ships in 2-12 days

0

11

Simplicity 1709915SM

ACTUATOR PIN

$6.49

$

Usually ships in 2-12 days

0

12

Simplicity 1709916SM

ARM, Brake

$27.99

$

Usually ships in 2-12 days

0

13

Simplicity 1924874SM

WASHER, 7/16 x 7/8 x 1/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1709918SM

LOCKING STRAP

$

$

Not available

15

Simplicity 1709919SM

NUT, Hex Lock, 5/15 x 24

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 1706173SM

SEAL, Lip

$8.99

$

In Stock, only 1 left!

0

17

Simplicity 1709921SM

SEAL, Lip

$8.99

$

Usually ships in 2-12 days

0

18

Simplicity 1709922SM

RING, Retaining

$6.49

$

Usually ships in 2-12 days

0
