1692130 - Simplicity Coronet Rear-Engine Riding Mower, 12.5hp Hydro Transmission, Drive & Brake Group 1 Parts Diagram

Coronet Rear-Engine Riding Mower, 12.5hp

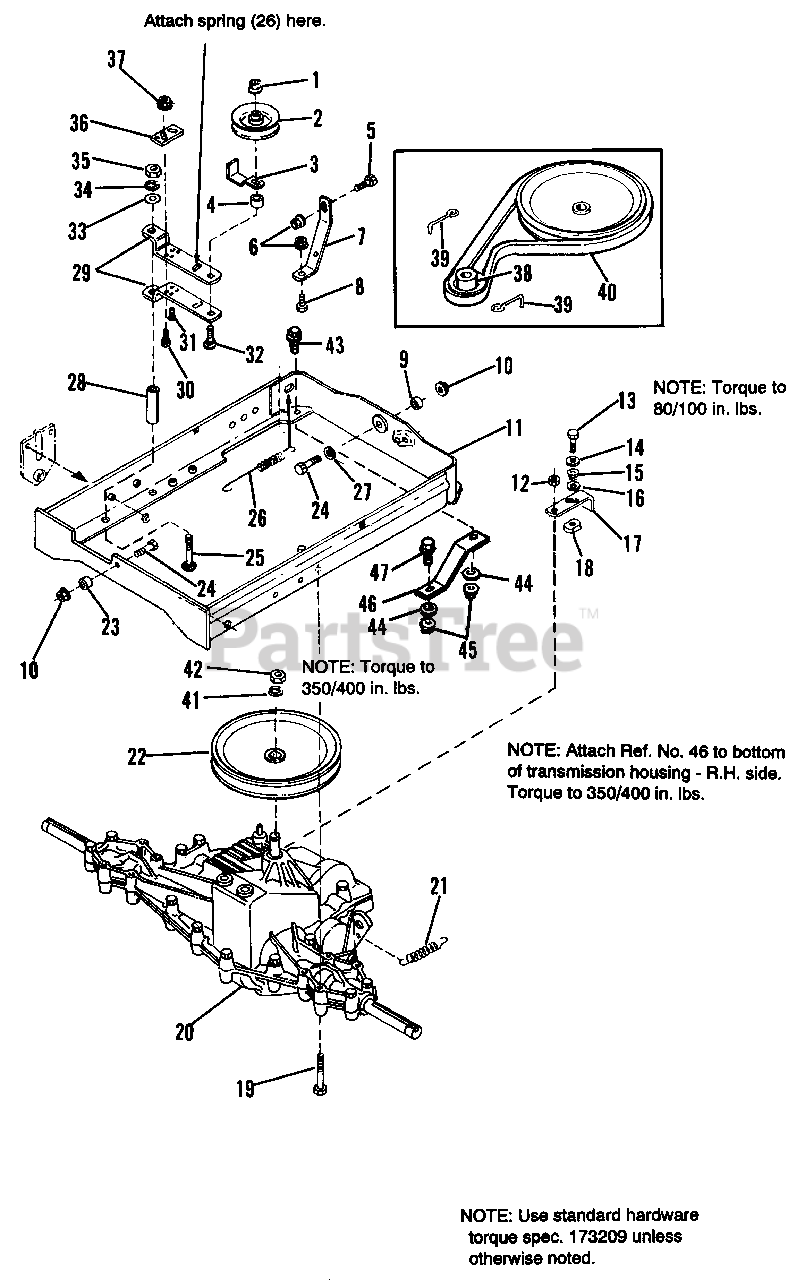

Hydro Transmission, Drive & Brake Group 1 Parts Diagram

  • Title

1

Simplicity 1960251SM

NUT, Hex, Jam, Lock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

2

Simplicity 1668827SM

PULLEY, Idler

$22.99

$

Usually ships in 2-12 days

0

3

Simplicity 1708352ASM

GUARD, Spring

$35.99

$

Usually ships in 2-12 days

0

4

Simplicity 1674440SM

SPACER, 25/64 x 5/8 x 11/16

$18.99

$

In Stock, only 1 left!

0

5

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1927557SM

NUT, Hex, Flange Whiz, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1709216SM

STRAP, Torque
(Superseded to 1709216ASM)

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 1935159SM

CAPSCREW, Hex, 5/16-18 x 2-1/4

$2.49

$

Usually ships in 2-12 days

0

9

Simplicity 1719725SM

BUSHING, Rear

$9.99

$

Usually ships in 2-12 days

0

10

Simplicity 1930644SM

NUT, Hex, Flange Lock, 1/2 x 13

$3.49

$

In Stock, Qty 6

0

11

Simplicity 1687051SM

CARRIER ASSY.

$168.99

$

Usually ships in 2-12 days

0

12

Simplicity 1923358SM

NUT, Hex, Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1960509SM

SCREW, Tapffle, #10-24 x 1-1/4

$1.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960151SM

WASHER, Plain, 1/4 x 1-1/4 x 5/64
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 2157127SM

SPRING

$

$

Not available

16

Simplicity 1922611SM

WASHER, Plain, 13/32 x 1-1/4 x 1/16

$6.99

$

In Stock, only 1 left!

0

17

Simplicity 1709271SM

LEVER, Tow Valve

$7.99

$

Usually ships in 2-12 days

0

18

Simplicity 1709901SM

SPACER

$9.49

$

Usually ships in 2-12 days

0

19

Simplicity 2860478SM

SCREW, Taptite, 5/16-18 x 2-1/4

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1686615SM

TRANSMISSION, Hydro

Note: See pages 12 and 13 for Service Parts.

$

$

Not available

21

Simplicity 2159106SM

SPRING, Return
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

22

Simplicity 1709213SM

PULLEY, Transmission

$40.99

$

Usually ships in 2-12 days

0

23

Simplicity 1719683SM

BUSHING, Front

$12.99

$

Usually ships in 2-12 days

0

24

Simplicity 1921176SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

25

Simplicity 1931342SM

CARRIAGE BOLT, 5/15-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

26

Simplicity 1666759SM

SPRING

$

$

Not available

27

Simplicity 1924361SM

WASHER, Plain, 17/32 x 1-1/4 x 5/64
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1709345SM

SPACER, Pivot

$20.99

$

Usually ships in 2-12 days

0

29

Simplicity 1709221SM

CLEVIS, Idler Bracket

$9.99

$

Usually ships in 2-12 days

0

30

Simplicity 1923341SM

CAPSCREW, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

31

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

32

Simplicity 1931355SM

CARRIAGE BOLT, 3/8-16 x 2-/1/4

$5.99

$

In Stock, Qty 11

0

33

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 6

0

34

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1709222SM

PLATE

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 1930641SM

NUT, Hex, Whiz, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1709218SM

PULLEY, Engine

$34.99

$

Usually ships in 2-12 days

0

39

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 2 left!

0

40

Simplicity 1709323SM

V-BELT

$31.99

$

In Stock, only 1 left!

0

41

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

42

Simplicity 1919262SM

NUT, Hex, Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

43

Simplicity 1930591SM

SCREW, Hex, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

44

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 1935048SM

NUT, Flange, 2-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

46

Simplicity 1713441SM

STRAP, Torque
(Superseded to 1713441ASM)

$5.99

$

Usually ships in 2-12 days

0

47

Simplicity 1933689SM

SCREW, Hex, Whizlock, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0
