1692129 - Simplicity Coronet Rear-Engine Riding Mower, 12.5hp Wheels & Tires Group Parts Diagram

Coronet Rear-Engine Riding Mower, 12.5hp

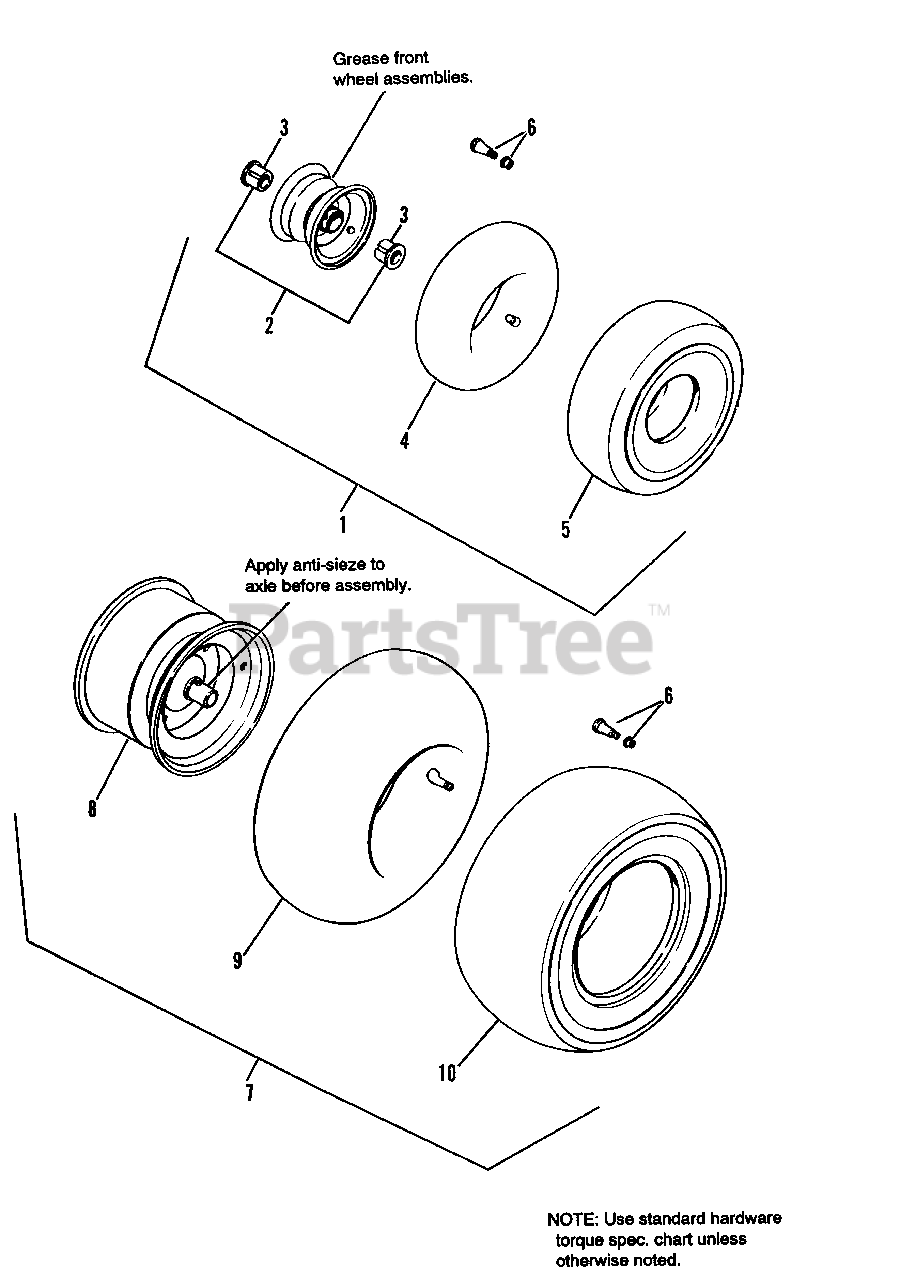

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 1723170SM

FRONT WHEEL & TIRE ASSY., White (13 x 5.00-6) (Incl. Ref. Nos. 2,3, 4,5 & 6)

$117.99

$

In Stock, only 1 left!

0

2

Simplicity 1709383SM

FRONT WHEEL ASSY., White, (13 x 5.00-6) (Incl. Ref. No. 3)

Note: Dico and Carlisle wheels are interchangeable as assemblies only.

$69.99

$

Usually ships in 2-12 days

0

3

Simplicity 1713167SM

BUSHING, Metal (7-21/32 I.D.)
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

4

Simplicity 1664090SM

TUBE (4.10/3.50 x 6)

$26.99

$

In Stock, only 3 left!

0

5

Simplicity 1709376SM

TIRE (13 x 5.00-6)

$88.99

$

In Stock, only 1 left!

0

6

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

7

Simplicity 1723171SM

REAR WHEEL & TIRE ASSY., White (16 x 6.50-8) (Incl. Ref. Nos. 6, 8, 9 & 10)

$111.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709385SM

REAR WHEEL ASSY., White

Note: Dico and Carlisle wheels are interchangeable as assemblies only.

$95.99

$

Usually ships in 2-12 days

0

9

Simplicity 2164247SM

TUBE

$40.99

$

Usually ships in 2-12 days

0

10

Simplicity 1709381SM

TIRE (16 x 6.50-8)

$

$

Not available

1

Simplicity 1723170SM

FRONT WHEEL & TIRE ASSY., White (13 x 5.00-6) (Includes Ref. Nos. 2, 3, 4, 5 & 6)

$117.99

$

In Stock, only 1 left!

0

2

Simplicity 1709383SM

FRONT WHEEL ASSY., White, (13 x 5.00-6) (Includes Ref. No. 3)

Note: Dico and Carlisle wheels are interchange as assembiles only.

$69.99

$

Usually ships in 2-12 days

0

3

Simplicity 1708573SM

BUSHING, Plastic (7-21/32 I.D.)

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1664090SM

TUBE (4.10/3.50 x 6)

$26.99

$

In Stock, only 3 left!

0

5

Simplicity 1709376SM

TIRE (13 x 5.00-6)

$88.99

$

In Stock, only 1 left!

0

6

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

7

Simplicity 1723171SM

REAR WHEEL & TIRE ASSY., White (16 x 6.50-8) (Includes Ref. Nos. 6, 8, 9 & 10)

$111.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709385SM

REAR WHEEL ASSY., White

Note: Dico and Carlisle wheels are interchange as assembiles only.

$95.99

$

Usually ships in 2-12 days

0

9

Simplicity 2164247SM

TUBE

$40.99

$

Usually ships in 2-12 days

0

10

Simplicity 1709381SM

TIRE (16 x 6.50-8)

$

$

Not available
