1692126 - Simplicity 30" Mower Deck 30" Mower Deck-Drive & Arbor Parts Diagram

30" Mower Deck

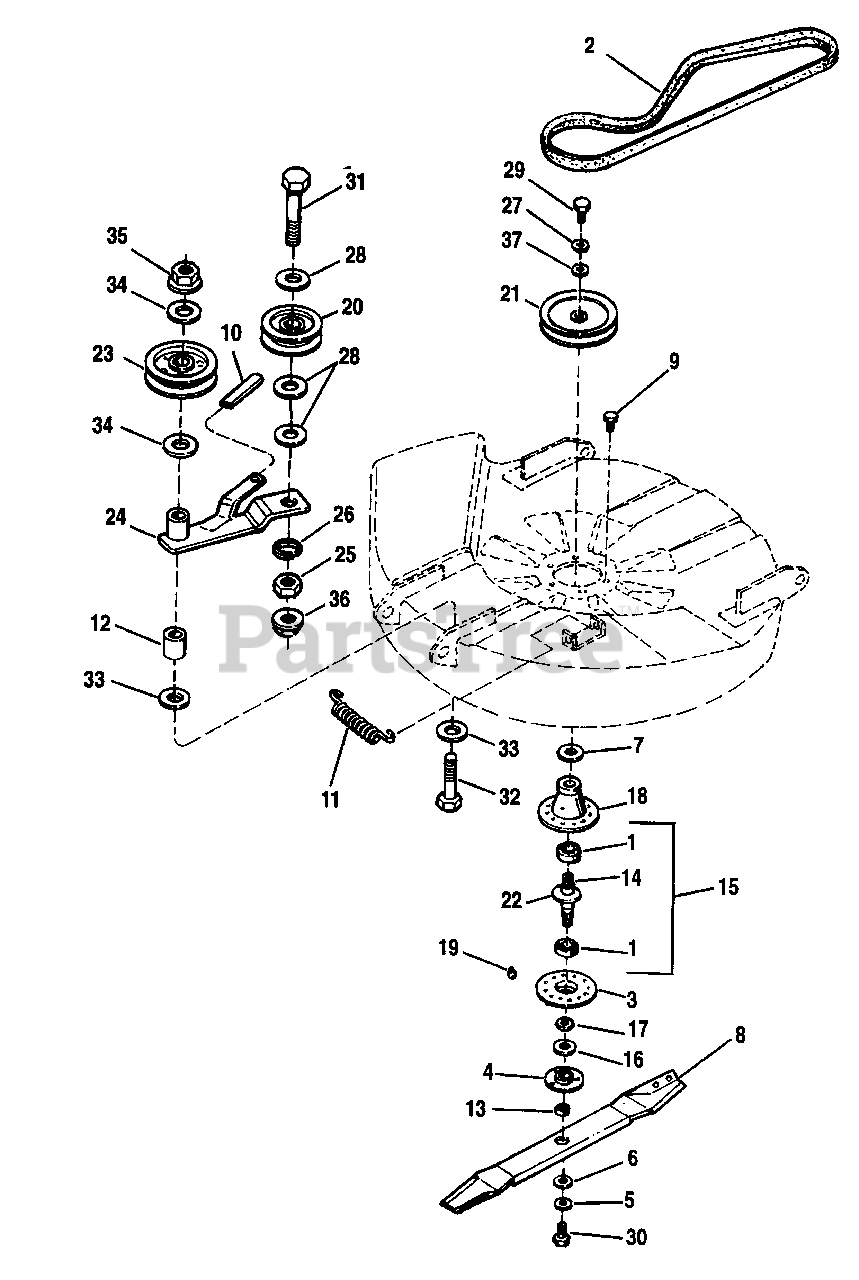

30" Mower Deck-Drive & Arbor Parts Diagram

  • Title

1

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

2

Simplicity 1719746SM

V-BELT, 73-7/64"
(Superseded to 1726471SM)

$45.99

$

In Stock, only 1 left!

0

3

Simplicity 1655729ASM

COVER, Arbor Housing

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

5

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

6

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

7

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

8

Simplicity 1664019ASM

BLADE, Mower, 30"

$33.99

$

In Stock, only 2 left!

0

9

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1665835

GRIP, Lever
(Superseded to 1665835YP)

$7.49

$

Usually ships in 2-12 days

0

11

Simplicity 1715435SM

SPRING

$9.49

$

In Stock, Qty 20+

0

12

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

13

Simplicity 1672132SM

COLLAR, Mower Arbor

$12.99

$

In Stock, only 4 left!

0

14

Simplicity 1685245SM

SHAFT, Arbor (Incl. Ref. No. 13)

$74.99

$

In Stock, Qty 7

0

15

Simplicity 1685251SM

SHAFT & BEARING ASSY. (Incl. Ref. Nos. 1 & 14)

$99.99

$

In Stock, Qty 13

0

16

Simplicity 1700229SM

SHIELD, Grass, Bottom

$10.99

$

In Stock, Qty 20+

0

17

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 1703273ASM

ARBOR HOUSING ASSY. (Incl. Ref. No. 19)

$38.99

$

In Stock, Qty 20+

0

19

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 1704926SM

IDLER, Backside

$38.99

$

In Stock, only 3 left!

0

21

Simplicity 1707270ASM

PULLEY ASSY., 7-55/64" Dia.

$85.99

$

Usually ships in 2-12 days

0

22

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

23

Simplicity 1707435SM

PULLEY ASSY., Idler, 6" Dia.

$90.99

$

Usually ships in 2-12 days

0

24

Simplicity 1708562SM

LEVER ASSY.

$47.99

$

Usually ships in 2-12 days

0

25

Simplicity 1916950SM

NUT, Hex, 3/8
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

27

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1922755SM

WASHER, Flat, 13/32 x 1 x 1/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

29

Simplicity 1923451SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2, Gr. 8

$

$

Not available

30

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1, Gr. 8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1923701SM

CAPSCREW, Hex Hd., 3/8-16 x 2
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1923903SM

CAPSCREW, Hex, 3/8-16 x 3

$4.49

$

In Stock, only 1 left!

0

33

Simplicity 1924356SM

WASHER, Flat, 3/8 x 1-1/2 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

34

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1928352SM

NUT, Hex, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

36

Simplicity 1928731SM

NUT, Hex, Top Lock, 3/8-16

$4.99

$

In Stock, only 1 left!

0

37

Simplicity 1933263SM

WASHER
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0
