1692091 - Simplicity 50" Mulching Kit 50" Mulching Kit Parts Diagram

50" Mulching Kit

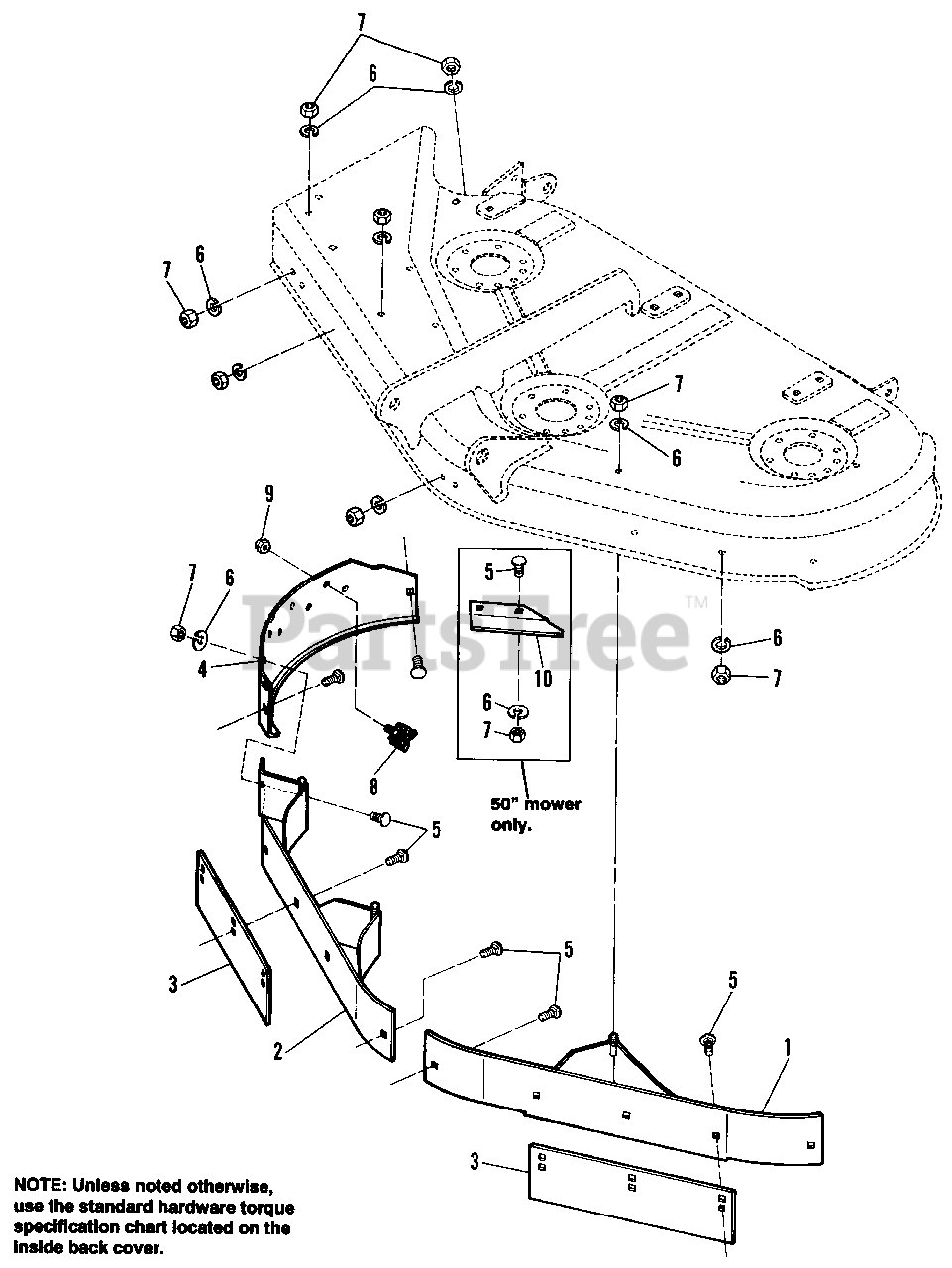

50" Mulching Kit Parts Diagram

  • Title

1

Simplicity 1708077SM

BAFFLE, Front, L.H.

$

$

Not available

2

Simplicity 1708075SM

BAFFLE, Front, R.H.

$

$

Not available

3

Simplicity 1708074SM

Deflector, Rubber

$15.99

$

Usually ships in 2-12 days

0

4

Simplicity 1708068SM

BAFFLE, Discharge

$50.99

$

Usually ships in 2-12 days

0

5

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1707684SM

LEAF SHREDDERS

Note: Not Included with Mtg. Nos. 1692472 & 1692473. Parts are available as a kit, Part 1686609 (lncludes qty. 8 of ref. nos. 8 & 9)

$31.99

$

In Stock, only 1 left!

0

9

Simplicity 1919438SM

NUT, Hex, Plastite, 5/16-18
(Superseded to 703902)

Note: Not Included with Mtg. Nos. 1692472 & 1692473. Parts are available as a kit, Part 1686609 (lncludes qty. 8 of ref. nos. 8 & 9)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1708079SM

MOWER LIP, Rear (50" Only)
(Superseded to 1708079ASM)

$4.99

$

Usually ships in 2-12 days

0
