1692088 - Simplicity Grass Mulcher & Leaf Shredder Kit 36" Mulching Mower Kit Parts Diagram

Grass Mulcher & Leaf Shredder Kit

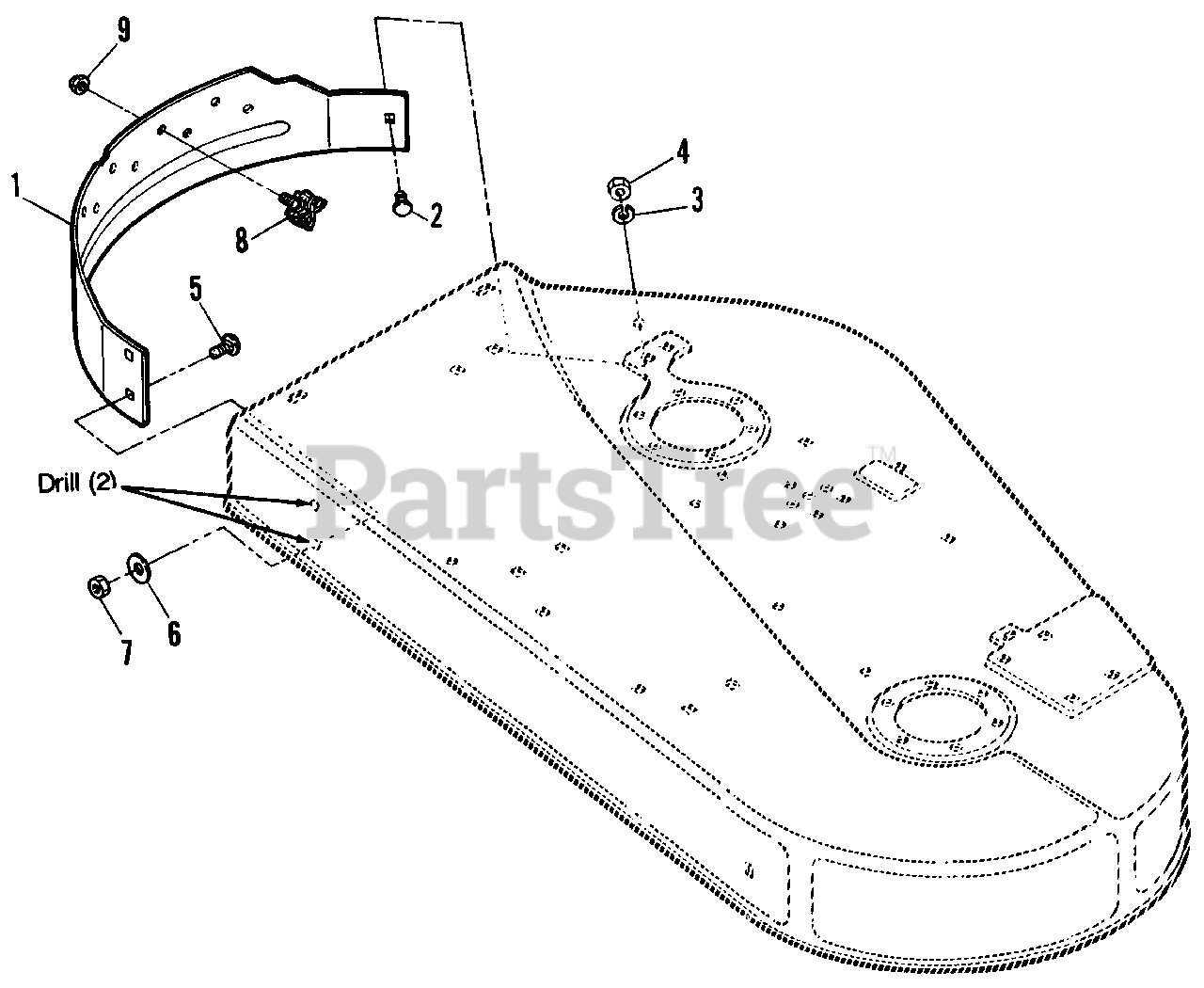

36" Mulching Mower Kit Parts Diagram

  • Title
1

Simplicity 1707992SM

BAFFLE, Discharge

$40.99

$

Usually ships in 2-12 days

0

2

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4"
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

4

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4"
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1707684SM

SHREDDERS, Leaf

$31.99

$

In Stock, only 1 left!

0

9

Simplicity 1919438SM

NUT, Hex, Plastite, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
